Overview
The Everest CAMO is a Nimble off road family bunk van. Don’t judge a van by its size, the Camo is packed with all the same features you would find in a van double it’s size!
COMPACT OFF-ROADER In 18ft you can get through pretty much any off-road track that Australia has to offer. Get ready for those fun filled off road trips that you can now experience with the whole family.
PACKS A PUNCH! This small family van it packed with all the creature comforts you need to enjoy a getaway with the family! So why go bigger when you have all you need in 18ft. You get 2 or 3 bunks, queen bed, separate shower and toilet, full kitchen with mini grill and sink, 141Ltr fridge/freezer, l-shaped lounge and let’s not forget storage for the kids!
SMART SPACE The Camo features a separate shower and toilet in the centre of the van! The utilities are smartly positioned in between the master suite and the living/bunk area which allows the family to comfortably maximise the use of their space.
Specifications
Chassis & Running Gear
10 features
| Hitch | DO35 |
|---|---|
| Deck | 6" Supergal |
| Raiser | 2" (Built Into The Suspension) |
| A-Frame | 6" |
| Jockey Wheel | 8" Alko |
| Brakes | 12" Electric |
| A-Frame Mesh | Stainless Steel |
| Jack Corner Supports | 4 |
| Bumper | 3 Arm (Rear) |
| Jack | Kojack |
SUSPENSION
1 feature
| Suspension | 2.9t Oztrekker |
|---|
External
19 features
| Bike Rack | Quad (Front) |
|---|---|
| Scupper Vent | White |

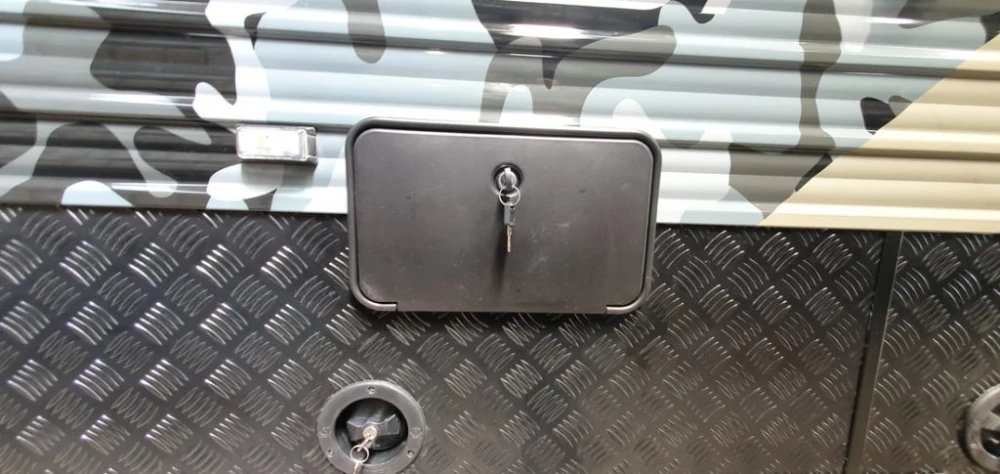

| Toolbox | With Generator Slide-Out (Off-Side) |
| Awning | Roll-Out Charcoal |

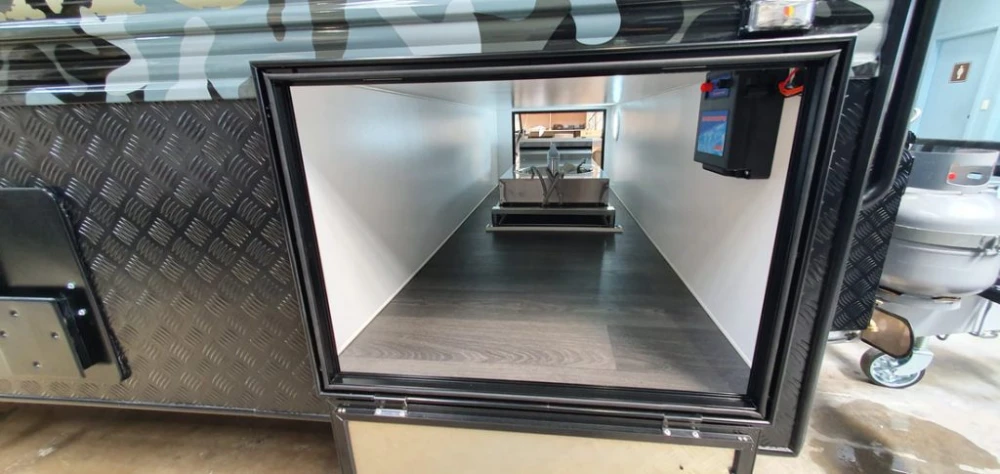

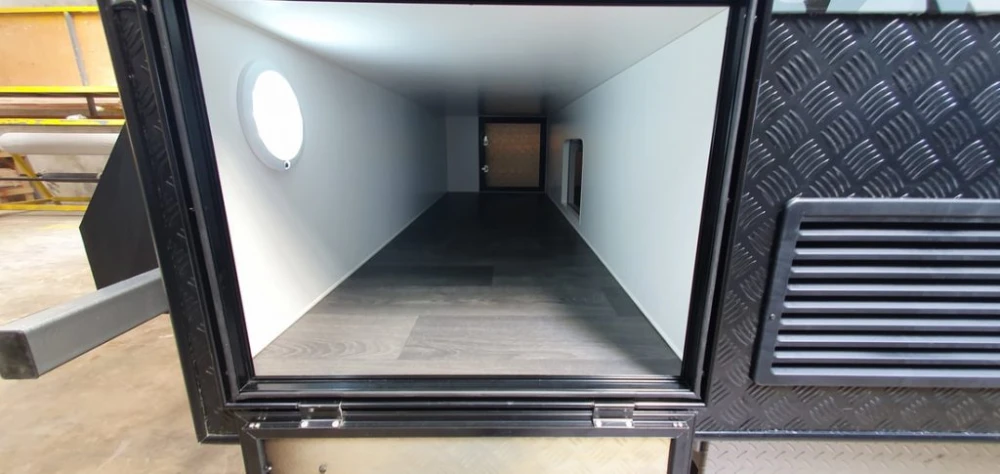

| Tunnel Boot | 2 x Dual Access (Front & Rear) |
| Small Tunnel Boot | 1 x Half Access (Front) |
| Picnic Table | Black |
| Gas Bottles | 2 x 9kg (Silver Mounted on A-Frame) |
| Step | Single Pull Out (Manual) |
| Step Well | Checker plate (Black or Silver Match Exterior Colour) |
| Wheel Spats | Checker plate (Black) |
| Wheel Arches | Galvanized |
| Wheels | 16" |
| Spare Wheel | 1 x 16" MPC Mainline Black / White Writing Out (Rear Bumper) |
| Tyres | 265/75/R16 A/T Tyres |
| Water Tank Protector | Galvanised |
| Jerry Can Holders | 2 x Rear Mounted |
| A-Frame Stone Guard | Front |
| Grab Handles | 4 x 300mm (Front & Back) |
Interior Build
7 features

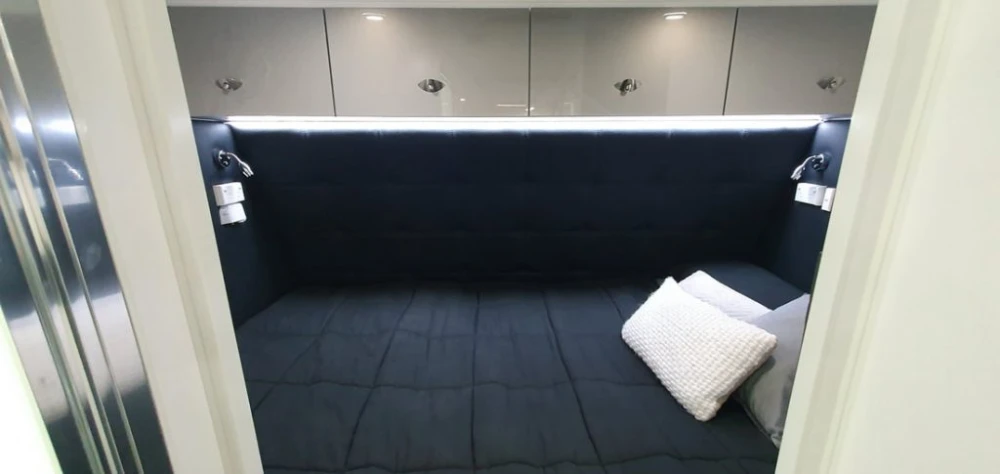

| Bed | East to West |
|---|---|
| Mattress | Innerspring Pillow-Top |
| Bunk Beds | 2 x Bunks |
| Bunk Ladder | Built In |
| L-Shaped Lounge | Vinyl Leather Upholstery |
| Drawers Runners | Soft Close |
| Bunk Robe | with Shelves |
| Table | Black Telescopic |
| Tick Cushion | Vinyl Leather |
| Window | Dometic Double Glazed |
| Entry Door | Dust Proof with Crim Proof Mesh Screen (Tri-Lock) |
| Flooring | Vinyl |
| Floor | One Piece Marine Grade Plywood (Structural Grade) |
| Roof Hatch | 1 x 450 x 400mm |
| Roof Hatch | Maxx Fan with Rain Sensor & Remote |
| Benchtop | Square Edge Laminate |
| Benchtop Over Stove | Square Edge Laminate |
| Shower | Moulded Fibreglass |
| Shower and Toilet Door | 2 x Silver Frame with Frosted White Glass |
| Cupboard Handles | Shell Lock (Brushed Nickel Matt Black, Matt White) |
| Hinges | Piano Nickel |
| Cupboard Door Struts | Spring Strutt |
| Cupboard Doors | Gloss or Matt |
| Splashback | Laminate (Full Height) |
| Upholstery | Vinyl Leather |
| TV Bracket | 2 x 2 Arm Removable (1 x Bedroom, 1 x Kitchen) |
| Smoke Detector | 9 VT Ecteronic with Hush Button Battery Operated |
| Fire Extinguisher Housing | White |
| Fire Extinguisher | 1kg |
Interior Appliances
10 appliances
| Air conditioner | Dometic Ibis 4 Air Conditioner |
|---|---|
| Mini Grill | Swift Mini Grill Black |
| Rangehood | Swift Touch Control |
| Hot Water System | 28Ltr Gas/Electric |
| Microwave | Sphere 25Ltr |
| TV | NEC 24" HD LED TV/12V |
| Stereo | Furoin DVD/CD w/Bluetooth |
| Toilet | Dometic Saneo - Ceramic bowl |

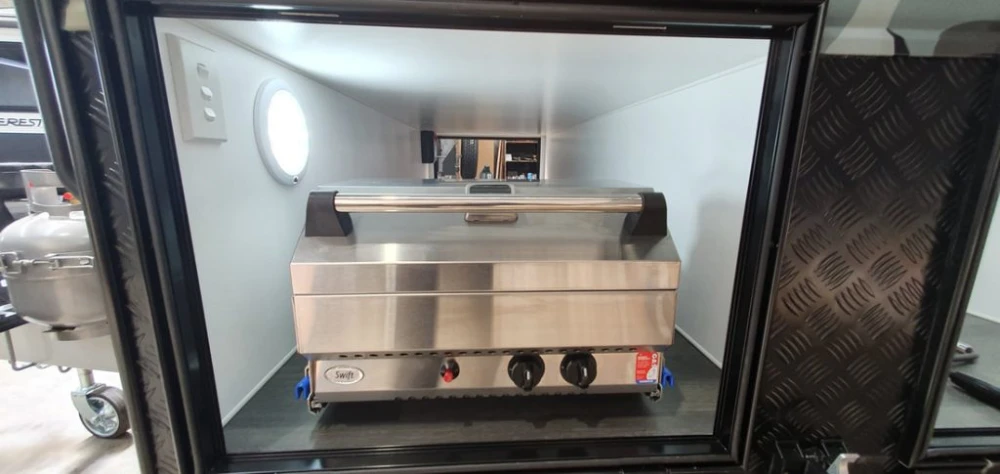

| Slide-Out Kitchen | Swift Alfresco with Sink & BBQ |
| Fridge/Freezer | N3141-A 141Ltr 3-Way Automatic |
Construction
6 features

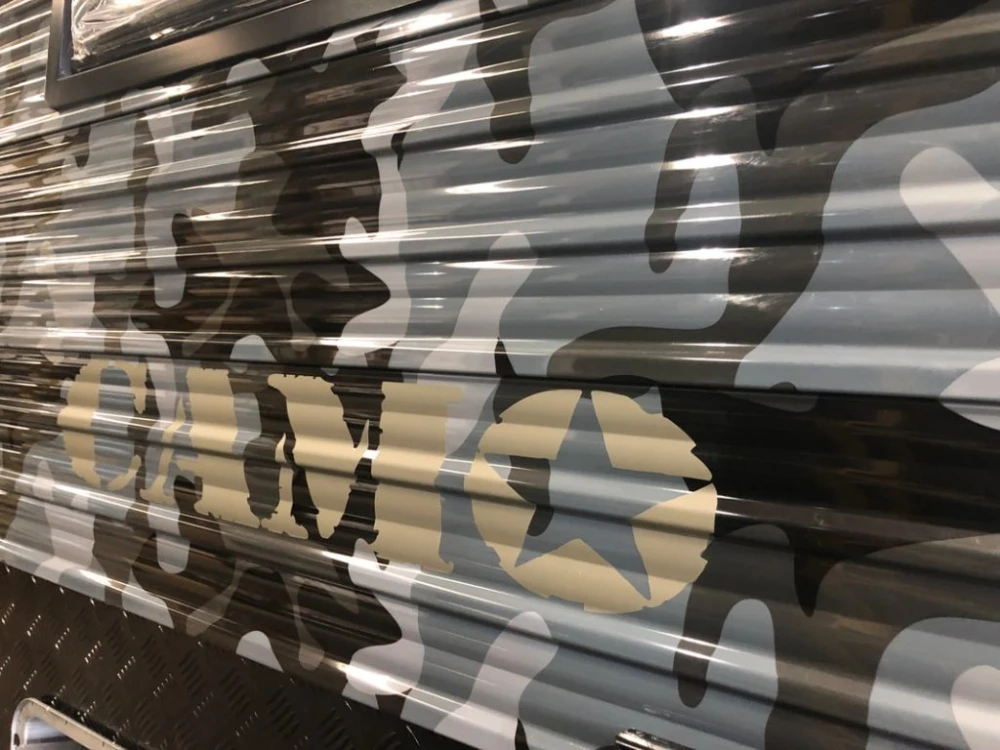

| Cladding Sides | High Profile Aluminium |
|---|---|
| Cladding Front | Flat Aluminium Composite |
| Cladding Back | Flat Aluminium Composite |
| Cladding Roof | Fibreglass |
| Frame | Meranti |
| Insulation | Styrene (Walls & Roof) |
PROTECTION
2 features
| Checker plate | Black or Silver (600mm Front, 600mm Sides, 600mm Back) |
|---|---|
| Mudflaps | Large (Black) |
Electrical
35 features
| 10a Outlet | Black |
|---|---|
| 15a Inlet | Black |
| Breaksafe | 6000 |
| Aerial | Black |
| Antenna | AntennaTek LPDA200 |
| Water Tank Gauge | Water Level Indicator 3 Tank (LCD Level Indicator) |
| Battery Management System | Genius Model 15-35 |
| Batteries | 2 x 100amp Deep Cycle Battery |
| Solar Panels | 2 x 170 Watt Solar Panels |
| Solar Regulator | 30a Regulator |
| Reading Lamps w USB | Dual Colour RL Blue/White USB (2 x Bunks, 2 x Bedhead Sides, 2 x Near Lounge) |
| ACC (External) | Black (Inside) |
| Single Power Point (External) | Black (External) |
| Strip Light | White or Blue (Kitchen, Lounge, Master) |
| Double Power Points (Internal) | White Standard Internal (Bedsides, Lounge, Kitchen, Bathroom, Robe b/w Bunks) |
| RCD/MCB Enclosure | 2-Way White Housing |
| RCD/MCB Circuit Breaker | 16A White (Internal) |
| Anderson Plug | 50A Grey Anderson Plug |
| Pin Plug | 12 Pin (Black) |
| Entry Handle Light | Blue Lit Bubble (Black) |
| Tunnel Boot Lights | 4 x Waterproof LED Shower Lamp White with Switch (1 x Shower and 3 x External Boots) |
| Tail Lights | Dynamic Combination |
| Markers | Red/Amber, Red, White |
| License Plate Light | LED License Plate Lamp (Black) |
| Bar Light | 2 x Front & Rear |
| LED External Lights | 4 X Anti Bug Tri Colour Black (2 x 284mm Below Awning, 1 x Over Tunnel Boot & 1 x Over External Shower) |
| Downlights | 75mm LED Cool White Downlights (Silver Housing) |
| Touch Light | 2 x Interior Strip Light (Below OHC in Ensuite & Sink) |
| TV Points Standard | Internal |
| Hatch Fan | 2 x 12vlt Shower/Toilet |
| Fans | 3 x Sirocco Fans White (2 x Bunks, 1 x Bedroom) |
| Reverse Camera | with Display |
| Sway Control | ALKO ESC |
| Speakers (External) | 2 x Black Internal (Outdoor Marine Speaker) |
| Speakers (Internal) | 2 x White Internal (Ceiling Speaker) |
Plumbing
11 features
| Tap | On A-Frame |
|---|---|
| Water Tank Probes | 3 x 7m |
| Water Tank Gauge | Water Level Indicator 3 Tank (LCD Level Indicator) |
| Water Tanks | 2 x 95Ltr |
| Grey Water Tank | 1 x 95Ltr |
| Pump | 1 x Shurflo 4009 Pump |
| Kitchen Tap | Kitchen Tap (Standard Chrome) |
| Sink (Kitchen) | Stainless Steel |

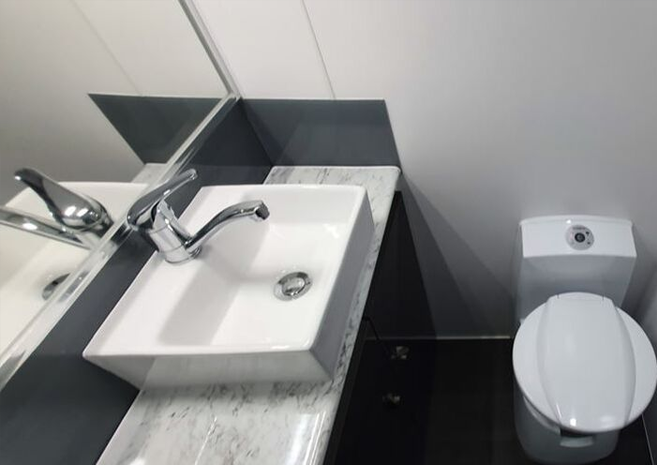

| Ceramic Sink (Ensuite) | Above Counter Basin |
| Gas Bayonet | Front |
| External Shower | Hot/Cold Water Marked Black |

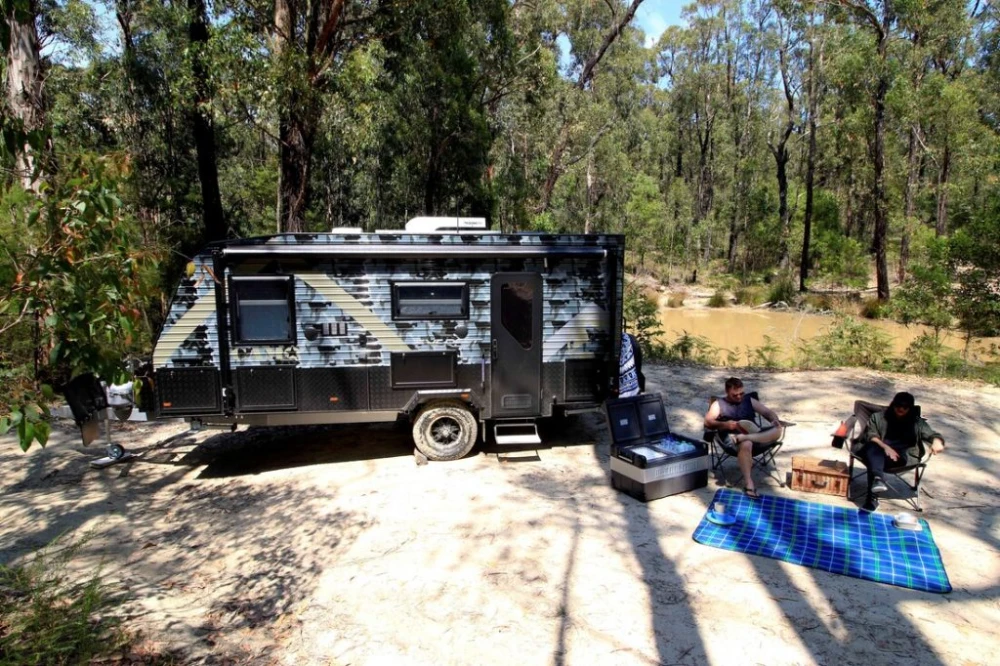

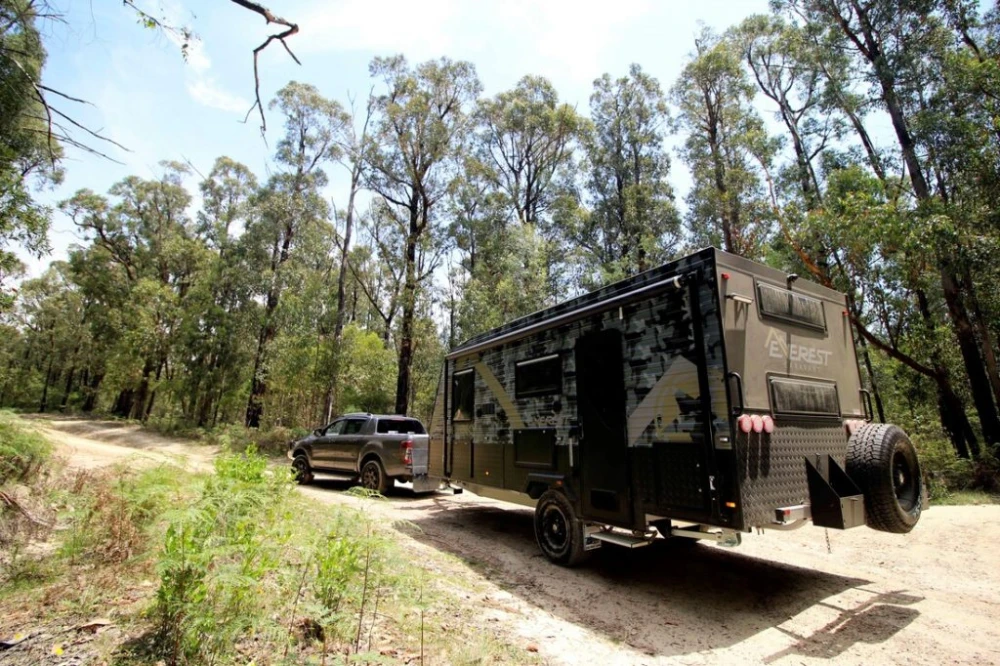

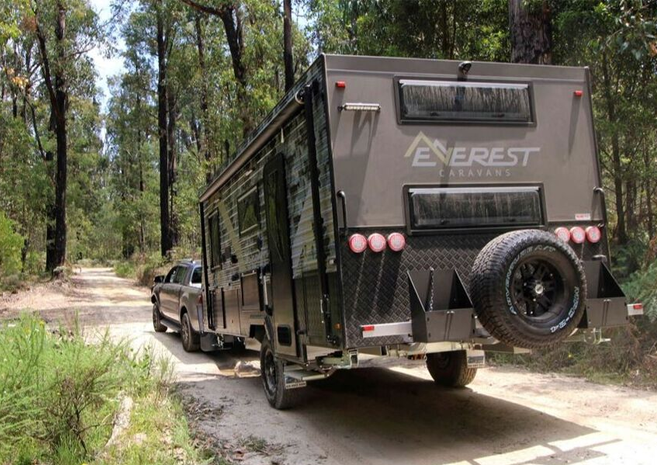

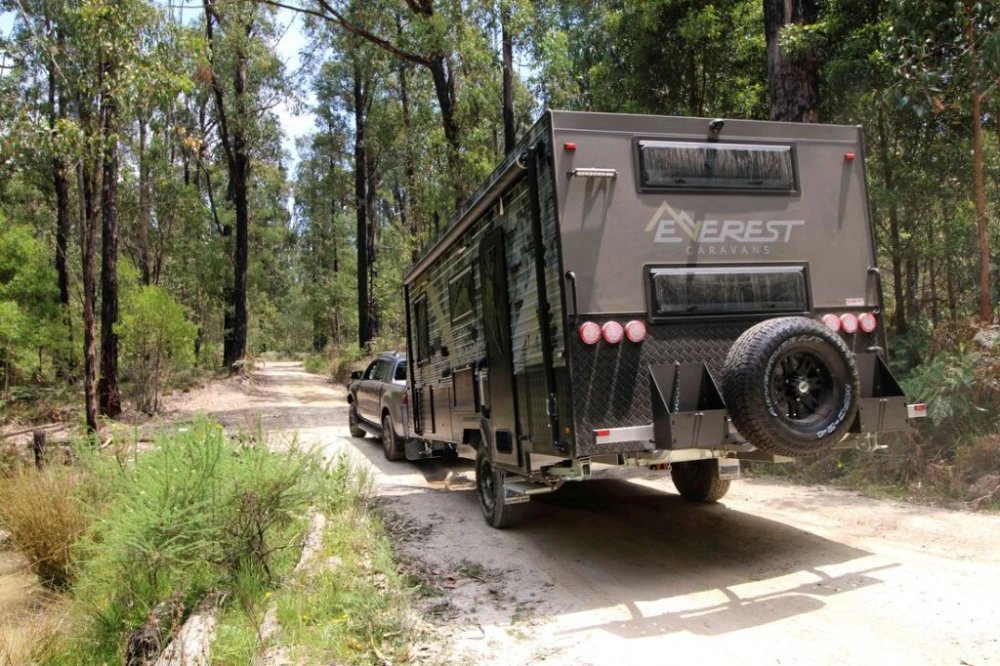

External Gallery

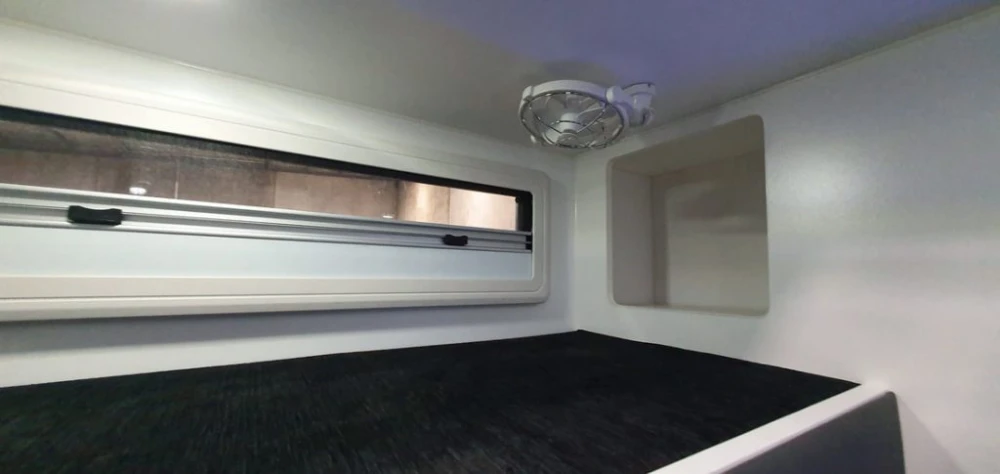

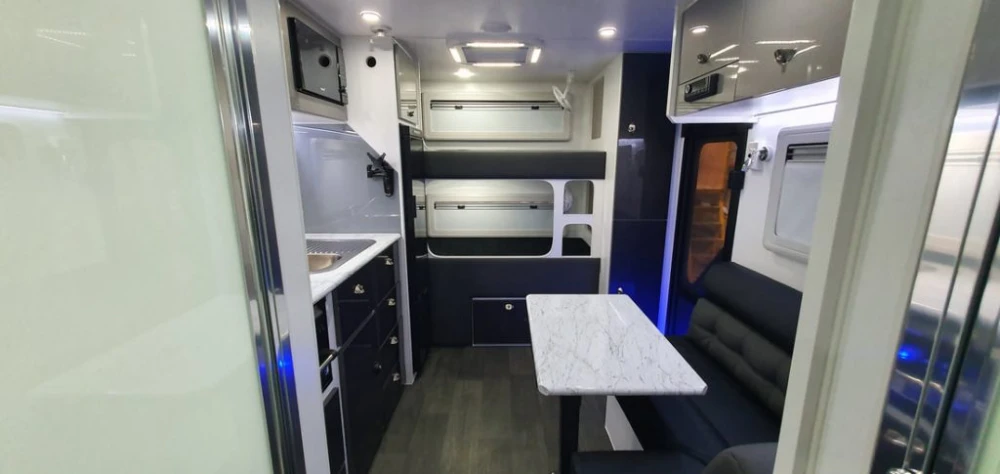

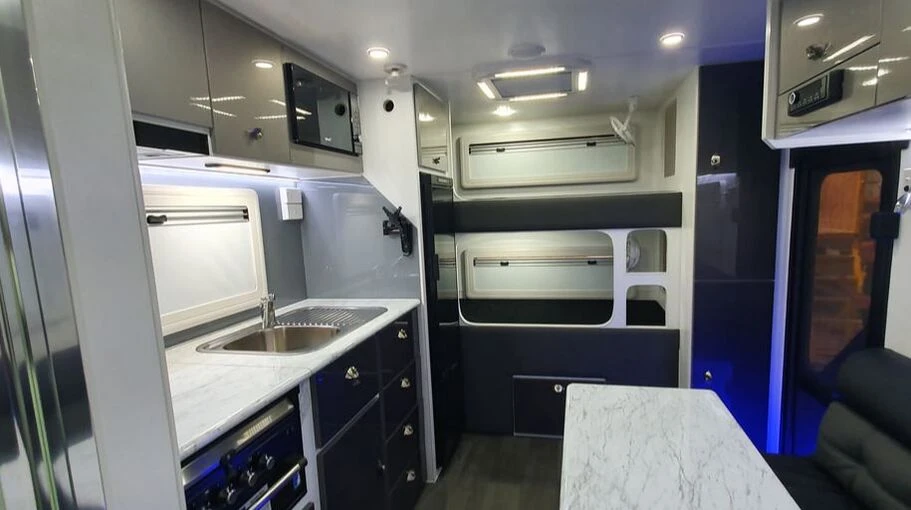

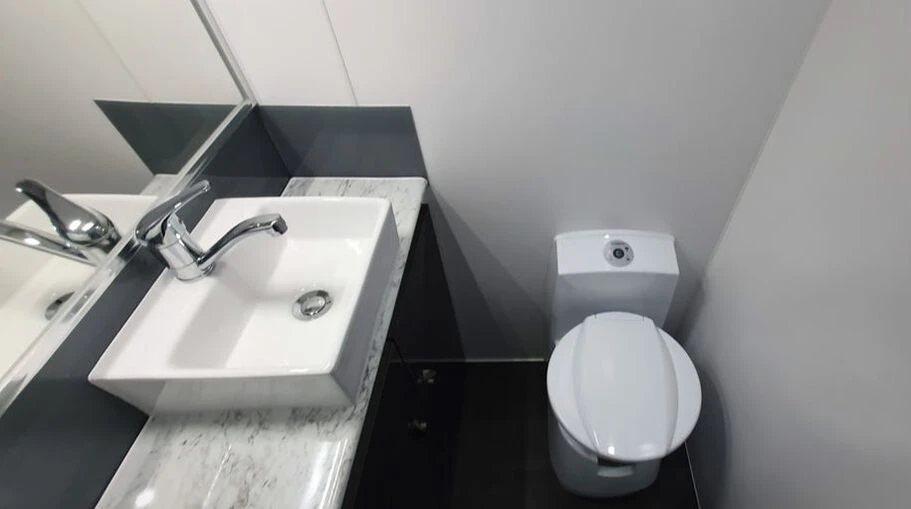

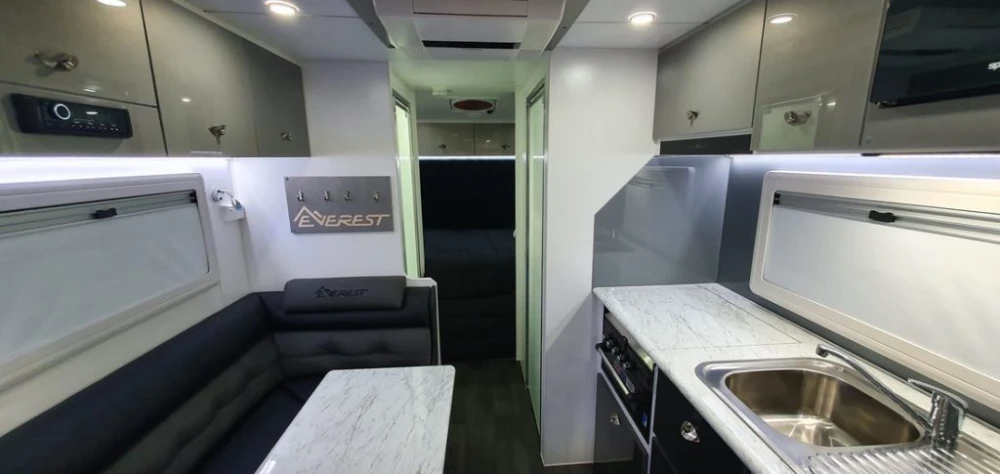

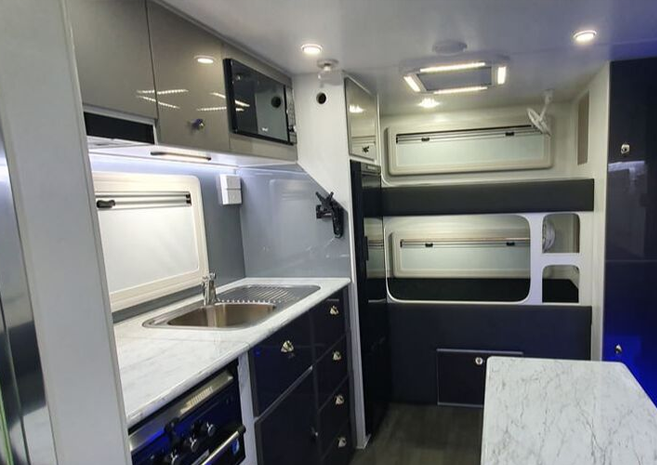

Internal Gallery
Floor Plans
18FT CAMO s1
18.6FT CAMO s2
