Overview

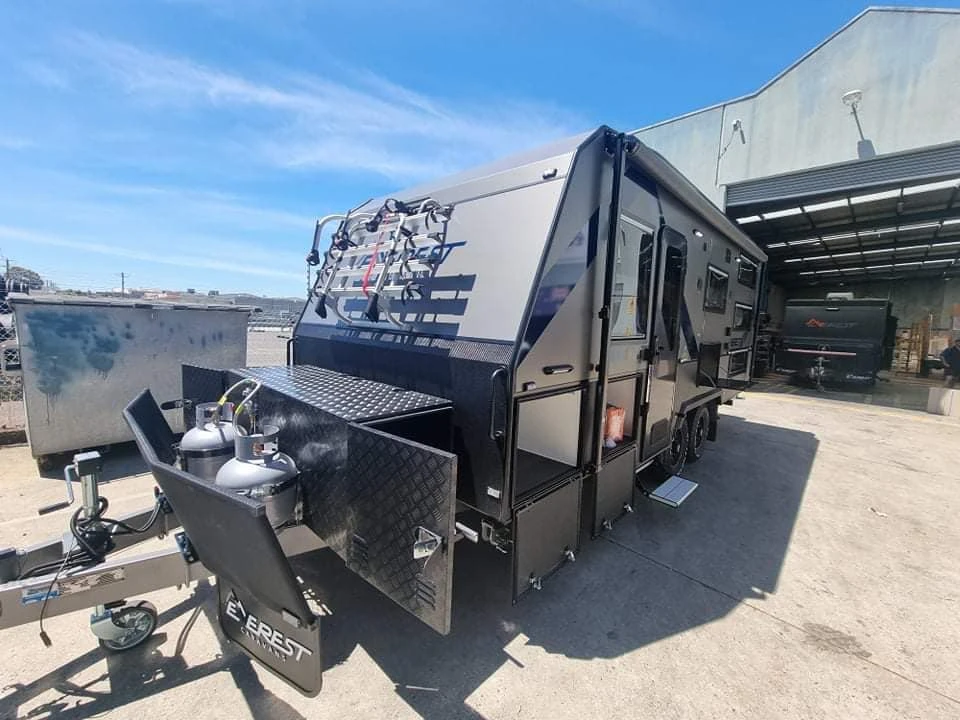

The Everest 19.7ft Kombat E1 is a semi off road van for the family. This ripper van is packed with premium features and is the perfect companion to take you and the family on that long-awaited adventure around Australia!
Specifications

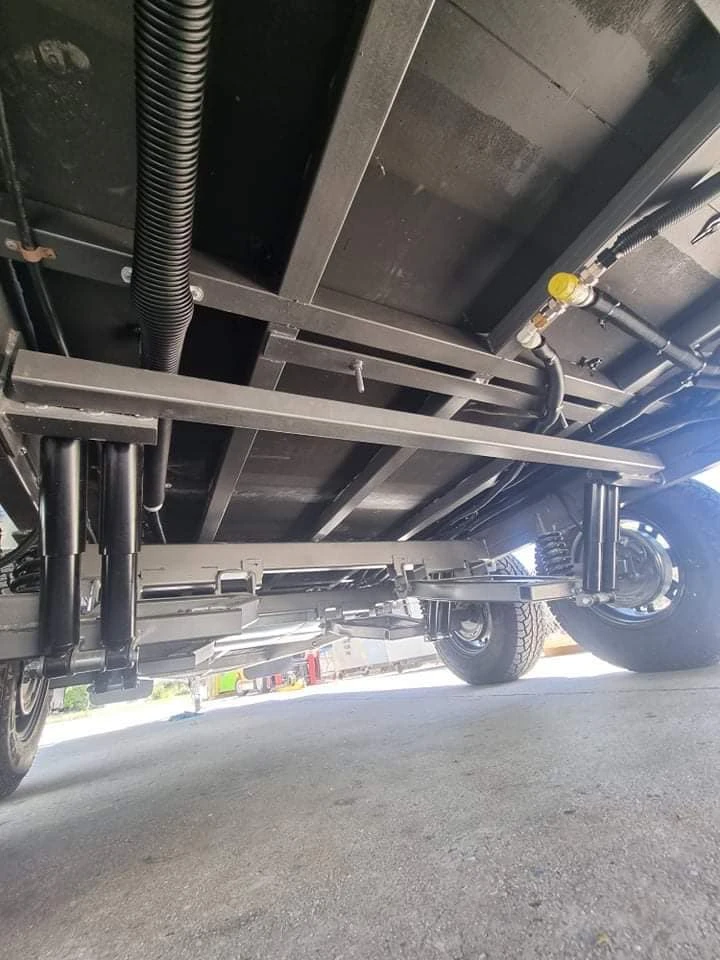

Chassis & Running Gear
16 features
| Chassis | Supergal Australian RHS Steel Chassis, |
|---|---|
| Suspension | 3.3t Alko Enduro Cross Country with Dual Shocks on Each Side (Semi Off Road) |
| Hitch | Full Articulated Off-Road Tow Hitch |
| A - Frame | 6” Extended A Frame with RHS Australian made Steel |
| Deck | 2” Chassis – 6' deck 2’ raiser” Chassis, RHS Australian Steel |
| Shockers | Pedder’s Suspension Trak Ryder Dual Shock Absorbers & Spring |
| Bumper | 3 Arm Heavy Duty Steel Bumper (Rear) |
| Jerry Can Holders | 2 x Black Rear Mounted |
| Stabilizing Legs | 4 x Heavy Duty Stabilising Corner Legs |

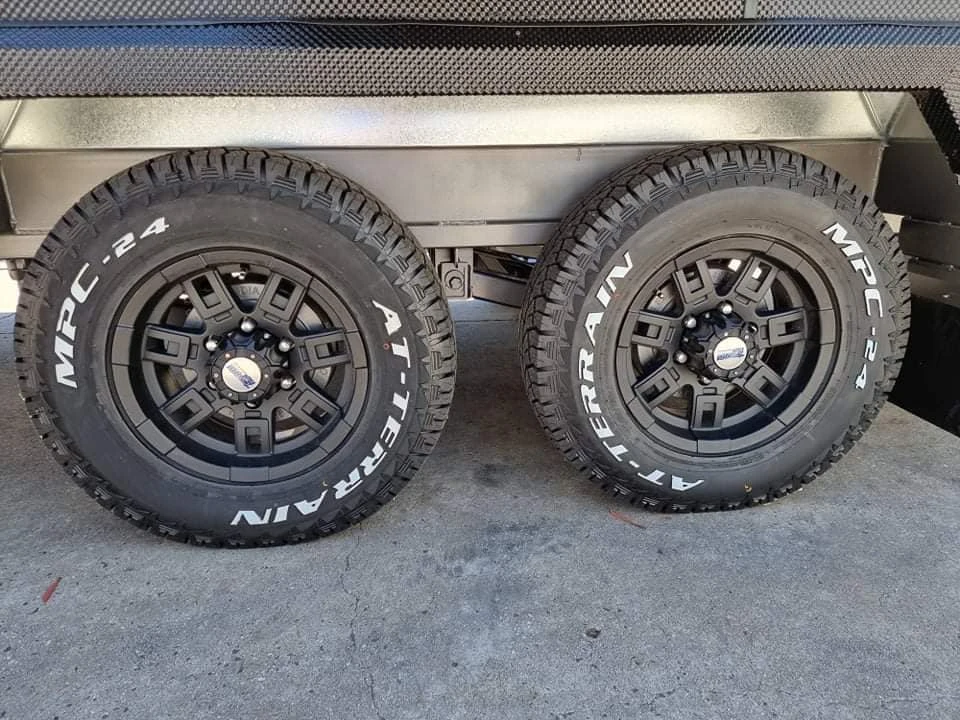

| Wheels | 4 x 15" Alloy (Mainline Matt Black) |

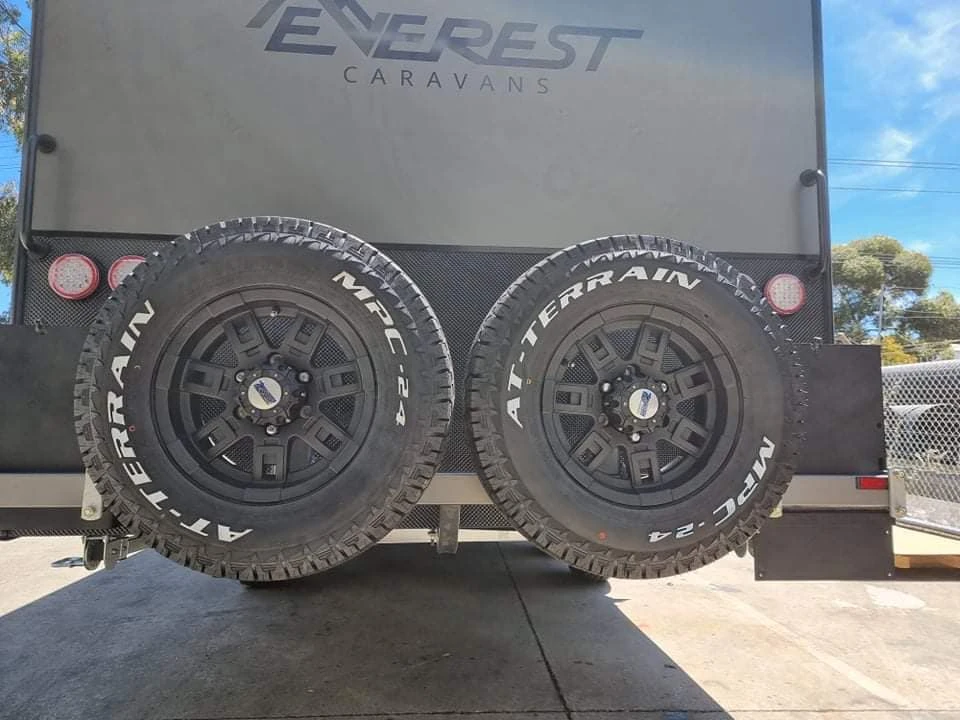

| Spare Wheel | 1x 15" Alloy rear |
| Jockey Wheel | 8" Alko Heavy Duty Centre Mounted Jockey Wheel |
| Brakes | 12" Electric |
| Battery Box | Dual Heavy Duty Steel Box |
| Jack Corner Supports | 4 |
| Jack | Kojack |
External Build
8 features
| Frame | Meranti Timber |
|---|---|
| Floor - Marine Grade Plywood | One Piece (Structural Grade) |
| Hard Wearing Vinyl Floor | 1x piece Vinyl Floor glued |
| Building | Furniture front, back, roof all Screwed plus Bolted |
| Roof | 2x 1 42mmx19mm Meranti Timber Double installation 6ml & 12ml lightweight plywood |
| Walls Framing | 2x1 Meranti Timber 42mmx19mm Stapled Glued with 3ml White Plywood |
| Furniture | Meranti Timber Stabled Glued screwed with 3ml White Stipple Plywood |
| Insulation | Styrene (Walls & Roof) |
External Features
26 features
| Cladding | Corrugated High-Profile Aluminium |
|---|---|
| X Plate | Side /back/front x plate |
| Cladding Front | Flat Aluminium Composite |
| Cladding Back | Flat Aluminium Composite |
| Cladding Roof | Fibreglass Skin |
| Sway Control | Alko Sway control |
| Alfresco BBQ Kitchen | Slide out Swift alfresco kitchen in tunnel boot with stainless sink and grill |
| Window - Double Glazed | Dometic Double Glazed |
| Entry Door | Black Dust Proof Door (Tri-Lock) |
| Speakers (External) | 2 x Black Internal 6" Outdoor Marine Speaker |

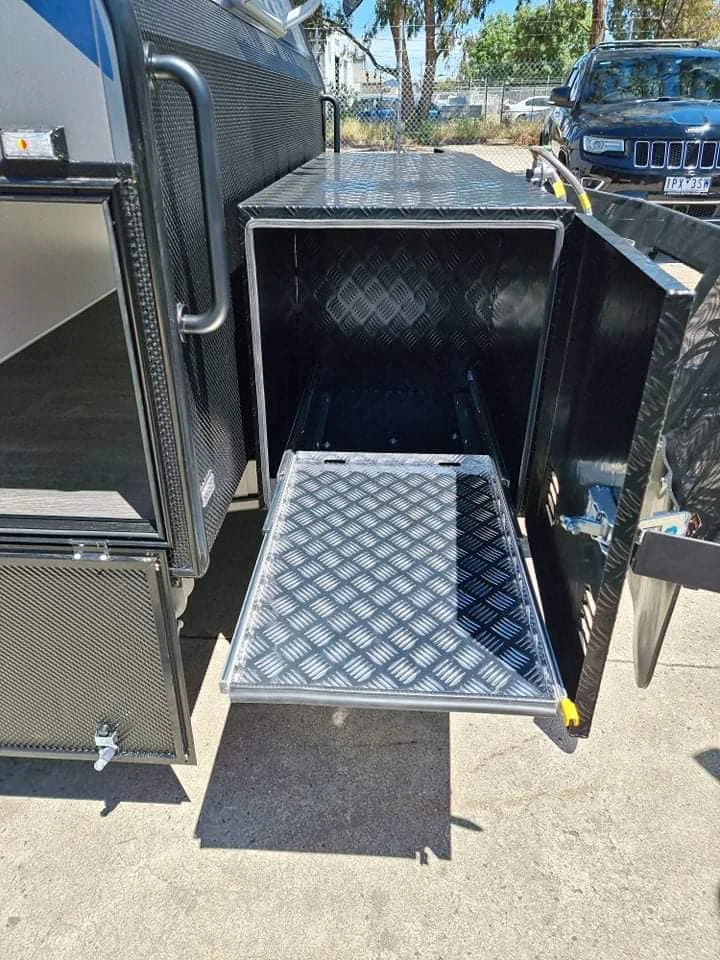

| Toolbox | With Generator Slide-Out (Off-Side) |
| Awning | Manual Charcoal Aussie Traveller Roll-Out with Centre Cradle Support Awning |
| Tunnel Boot | 2 x Extra Large Openings - Vinyl Floor/White Plywood Custom Aluminium Doors |
| Picnic Table | Drop Down Metal Picnic Table |
| Gas Bottles | 2 x 9kg (Silver Mounted on A-Frame) |
| Step | Single Pull Out (Manual) |
| Work Lights | 2x Stedi Work lights on front and rear |
| External Shower | 1x Hot/Cold Water Marked Black |
| Camera | Rear Safety Dave Camera |
| Coaxial input | 240V And Coaxial Offside Inputs |
| LED External Lights | 4 x Black Aluminium (2 x Below Awning, 1 x Offside, 1 x Over Tunnel Boot) |
| External TV Hatch | 1 x External Tv Hatch with Digital Coaxial, 12v, 2 x 240V and 1 x USB Connection Points, |
| Water Tank Protector | Galvanized |
| Front Stone Mesh Guard | Front Stone Mesh Guard w/ mudflaps Everest Logo |
| Mudflaps | Rear (Black) w/ mudflaps Everest Logo |
| Grab Handles | 4 x 300mm Black (2x Front & 2x Back) |
Interior Build
6 features
| Hard Wearing Vinyl Floor | |
|---|---|
| Lightweight Plywood acrylic Doors | |

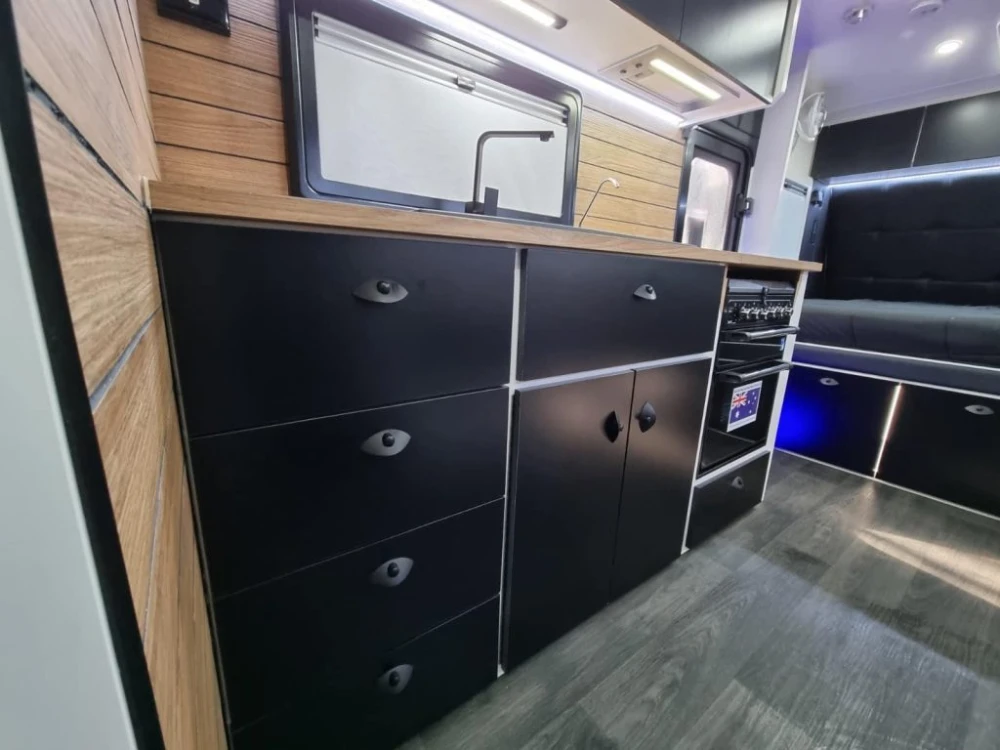

| Lightweight Plywood Laminate Benchtops | |
| Recessed Covered Cooktop | |
| Double Gas Struts To All Overhead Cupboard | |
| Laminate Splash backs |
Interior Appliances
11 appliances
| Air conditioner | Ibis 4 |
|---|---|
| Oven | 502 BHSP Swift Full Oven Black |
| Rangehood | Sphere Recessed |
| Hot Water System | GEHWB Swift 28Ltr Gas/Electric |
| Microwave | Sphere 25Ltr |
| TV | 24’ smart tv dvd combo |
| Stereo | Furoin Bluetooth |
| Toilet | Saneo Ceramic Bowl |

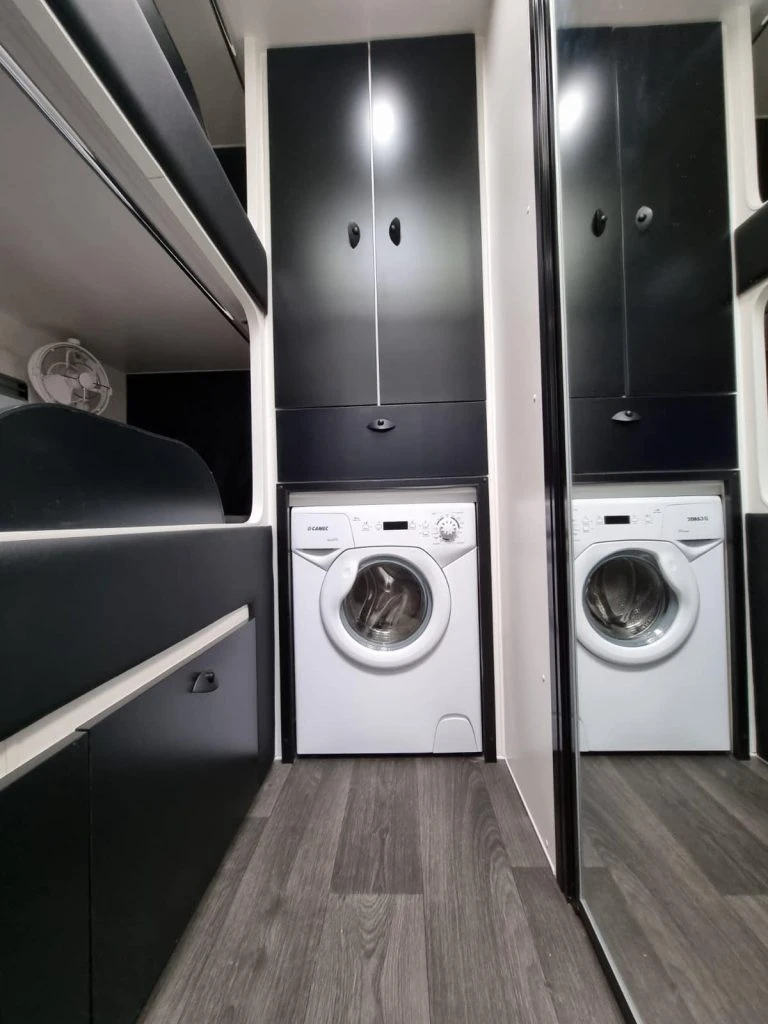

| Washing Machine | Camec 4kg Washing Machine (Front Loader) |
| Toilet | Saneo Ceramic Bowl |

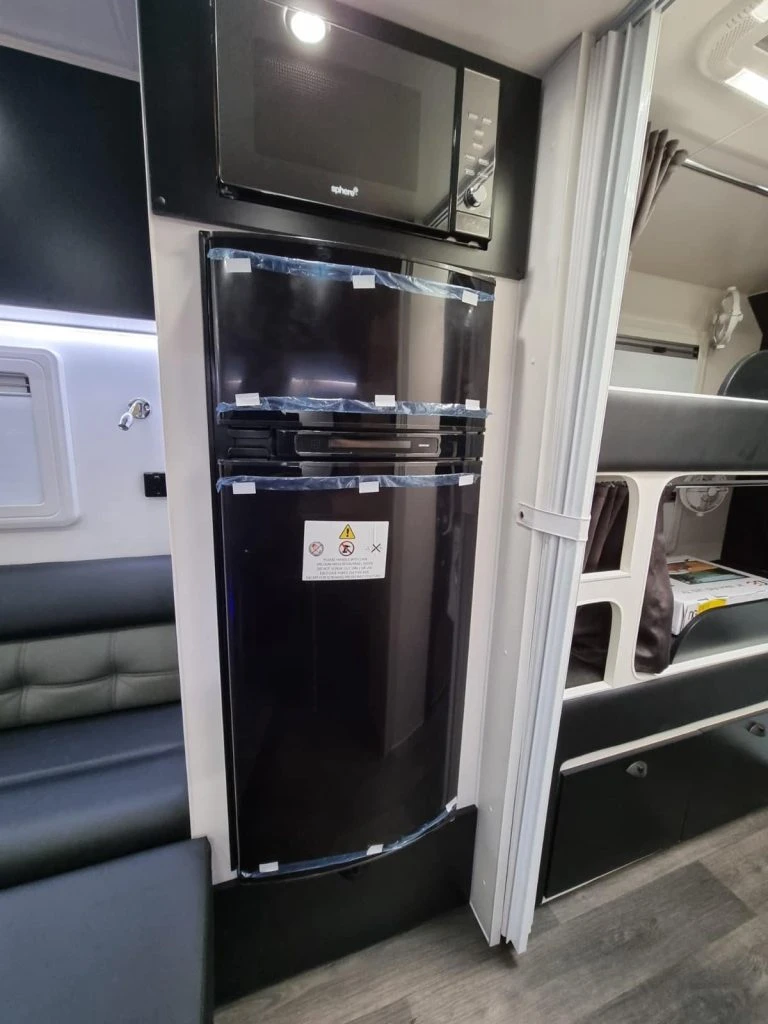

| Fridge/Freezer | N4175A 171L 3-Way Automatic |
Internal Furniture
6 features
| Bed - Queen Island | East to West |
|---|---|
| Mattress - Innerspring Pillow-Top | Queen Size |

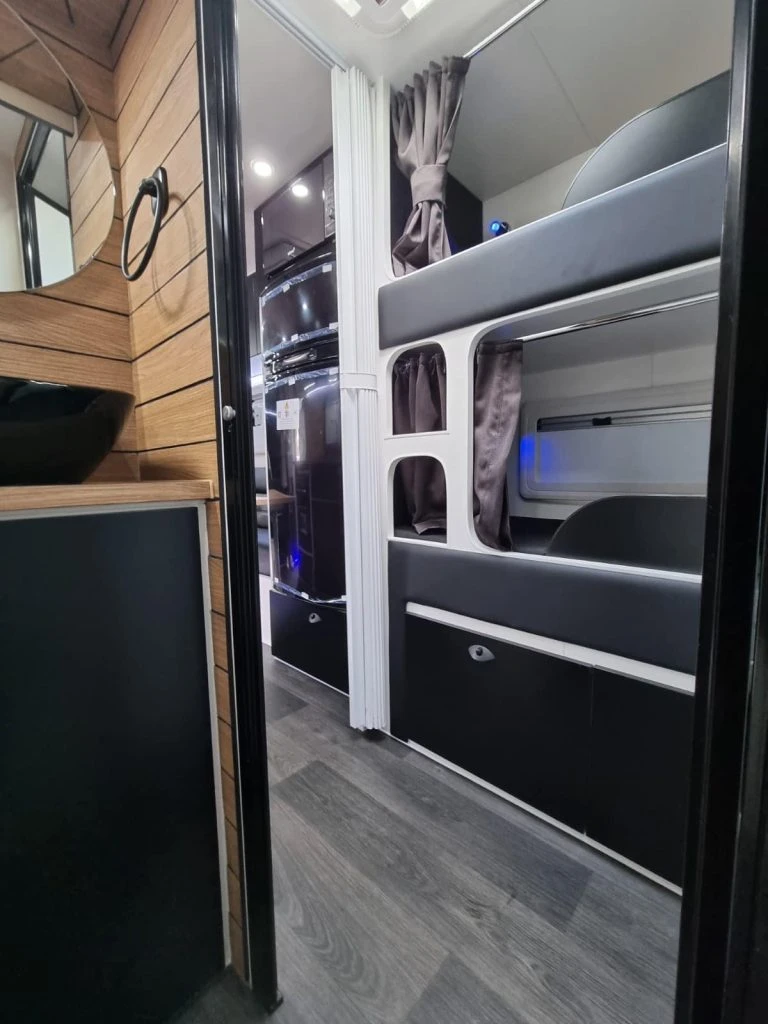

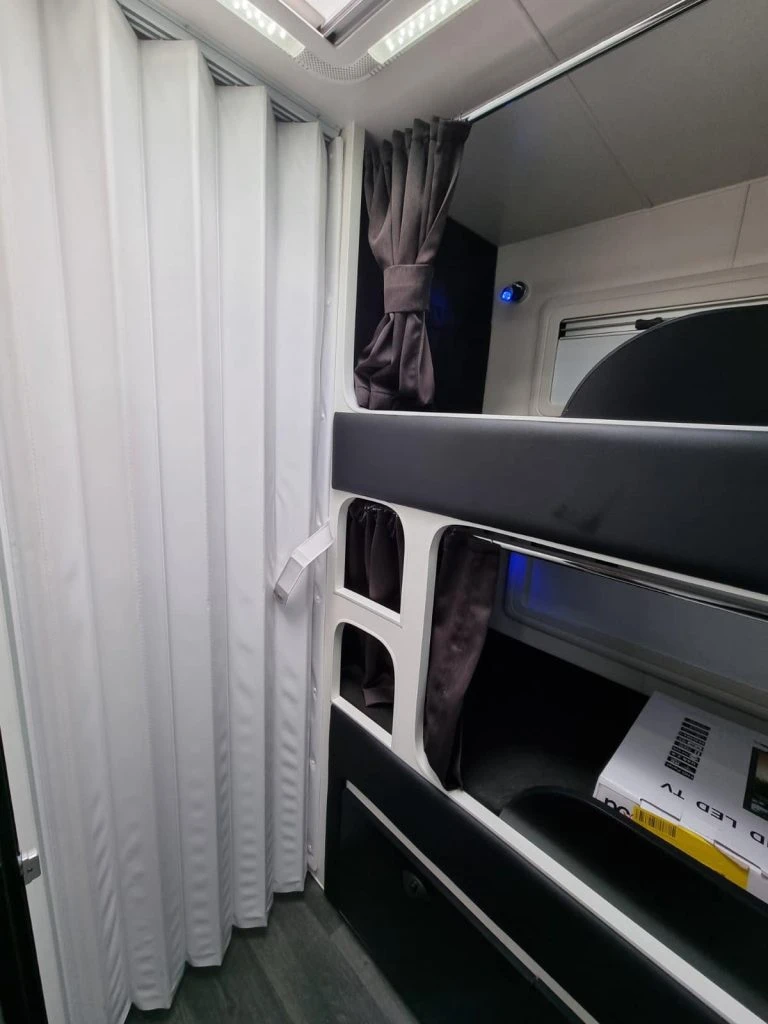

| Bunk Beds | 2 or 3 x Bunks |
| Bunk Ladder | Built In |
| Bunk Curtains | 2 or 3 X Each Bunks |

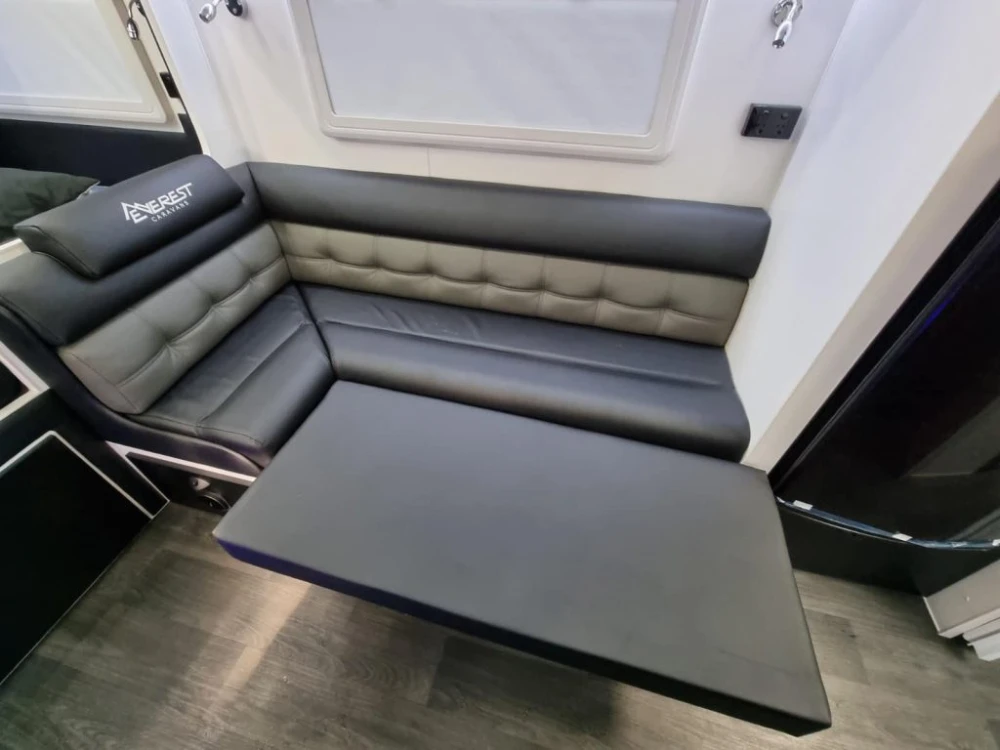

| Tic Cushion | Table Tic Cushion |
Electrical
21 features
| Antenna | AntennaTek LPDA200 |
|---|---|
| Battery Management System | BMPRO 35HA Battery Management System (Lithium Ready) |
| BMPRO | Trek Digital Display |
| Batteries | 2 x 100amp Lithium Lab Batteries |
| Solar Panels | 2 X 210-Watt Solar Panels |
| Reading Lamps w USB | Dual Colour RL Blue/White USB (2 or 3 x Bunks, 2 x Bedhead Sides, 2 x Near Lounge) |
| LED Strip Light (Internal) | White Strip Light in Aluminium Track Under OHC (Master, Lounge & Kitchen) |
| LED Strip Light (Internal) | Blue Strip Light (Step) |
| Anderson Plug | 50A Grey Anderson Plug |
| Pin Plug | 12 Pin (Black) |
| Entry Handle Light | Blue Lit Bubble (Black) |
| Waterproof Lights | 2 x Waterproof LED Shower Lamp White with Switch (1 x Shower x 1 x Tunnel Boot) |
| Tail Lights | 6 x Dynamic Combination 130mm |
| Work Lights | 2x Stedi Work lights on front and rear |
| LED External Lights | 4 x Black Aluminium (2 x Below Awning, 1 x Off Side, 1 x Over Tunnel Boot) |
| Downlights | 75mm Round (Silver) |
| Touch Light | Interior Strip Light (Below OHC in Ensuite & Sink) |
| TV Points Standard | 2 x Internal, 1 x External |
| TV Hatch (External) | Standard Points |
| Speakers (External) | 2 x Black Internal 6" Outdoor Marine Speaker |
| Speakers (Internal) | 2 x White Internal 5" Ceiling Speaker |
Plumbing
16 features
| Gas Bayonet | 1 x Front Gas Bayonet awning side |
|---|---|
| GAS BOTTLES | 2 x 9Kg Gas Bottles |
| Water Tank Probes | 3 x 7.5m Dippers |
| Water Tank Gauge | Trek Digital Display |
| Water Tanks | 2 x 110L |
| Grey Water Tank | 1 x 95Ltr |
| Pump | 1 x Shurflo |
| Kitchen Tap | 340mm Black Kitchen/Bathroom Tap |
| Bathroom Tap | Basin Mixer Matt Black |

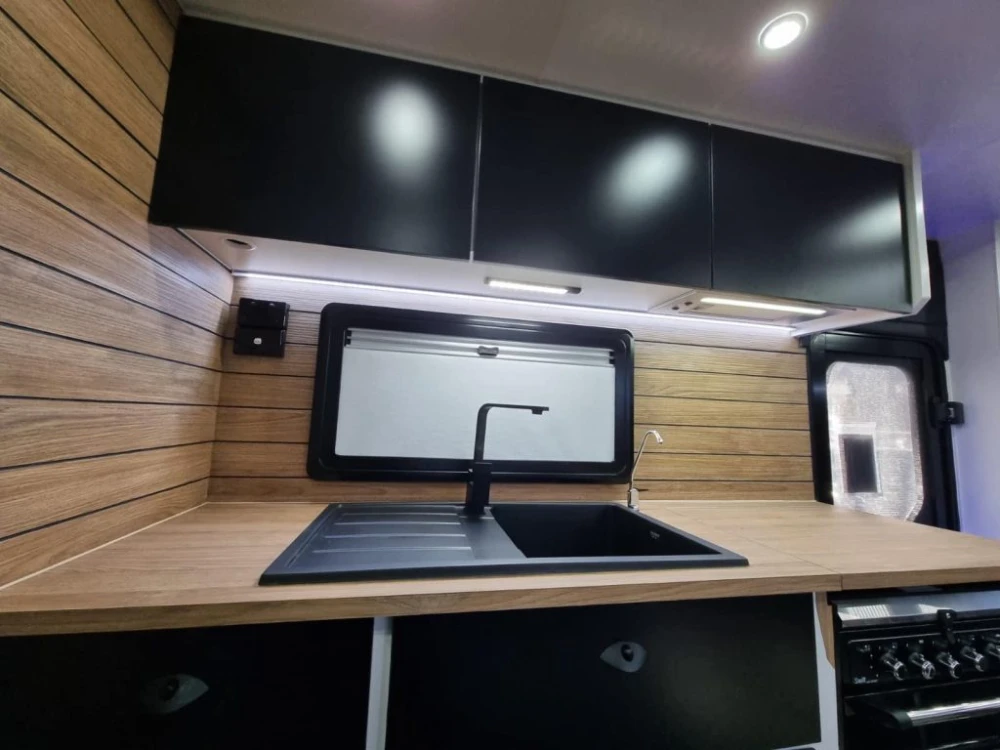

| Sink (Kitchen) | BLACK GRANITE SINER WITH DRAINER |
| Ceramic Sink (Ensuite) | Above Counter Basin BLACK OR WHITE |
| Gas Bayonet | Front Adjacent To Front Tunnel Boot |
| External Shower | 1x Hot/Cold Water Marked Black |
| Tap on Chassis | On A-Frame with Checker plate protection |
| 28L Stainless Steel Swift Gas and Electric Hot Water System | |

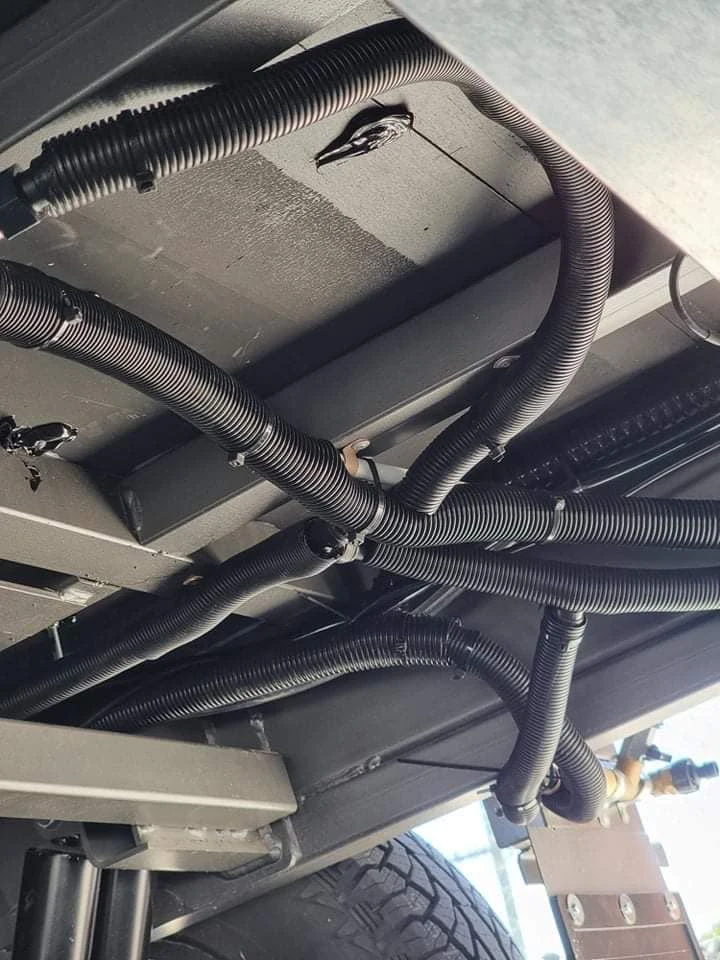

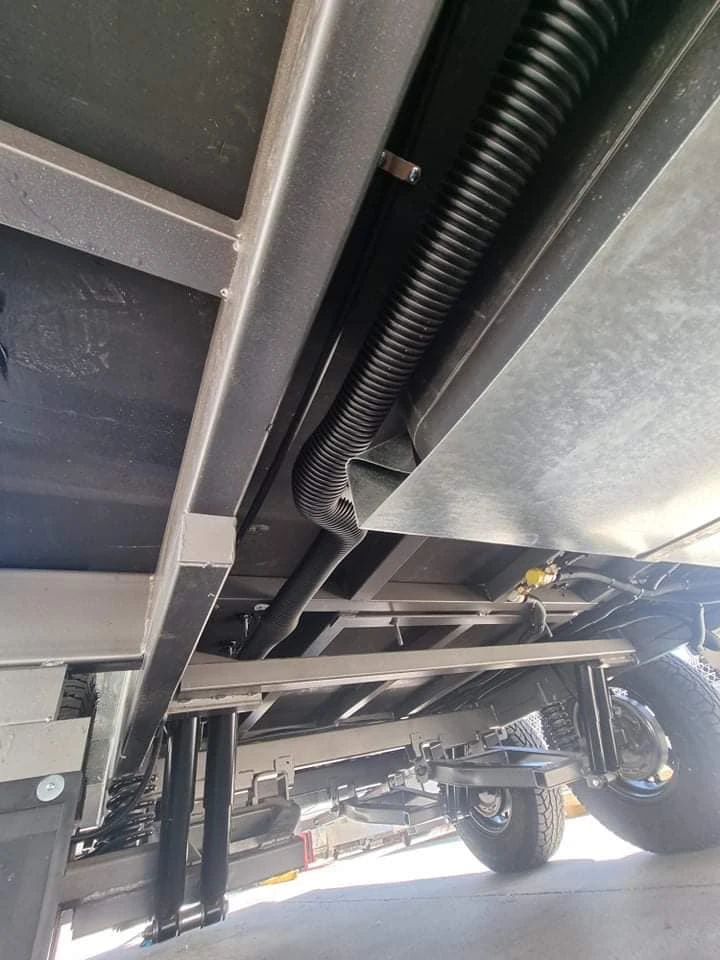

| Plumping underbody Protection - Plumbing and Pipe Protection On Exposed Underneath PVC Pipework | |
| Large One-Piece Fibreglass Shower with fibreglass roof with Extractor Fan |

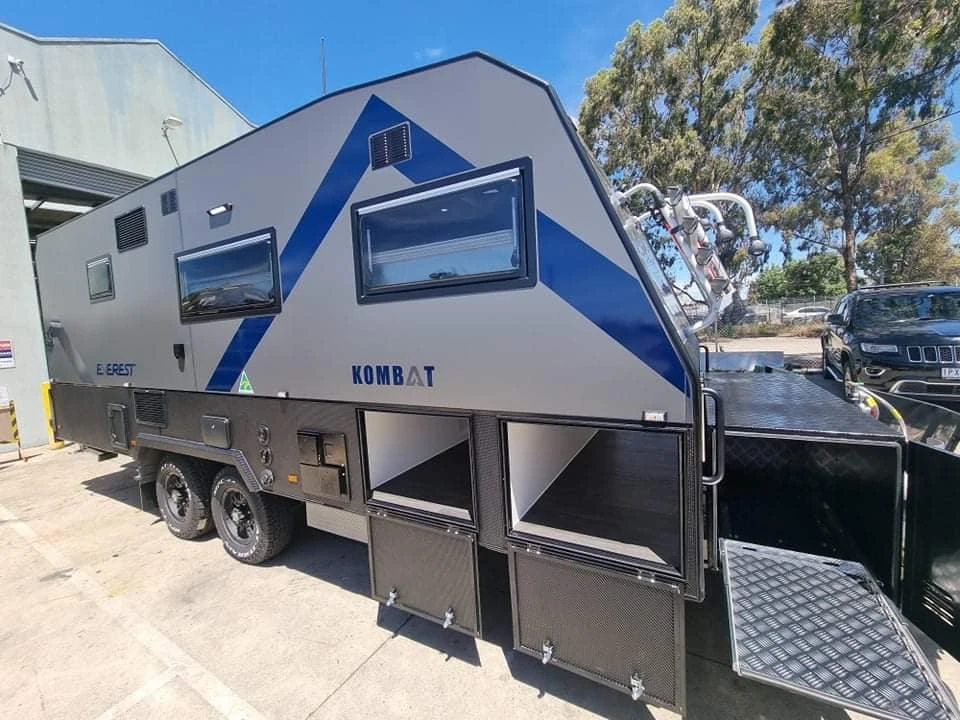

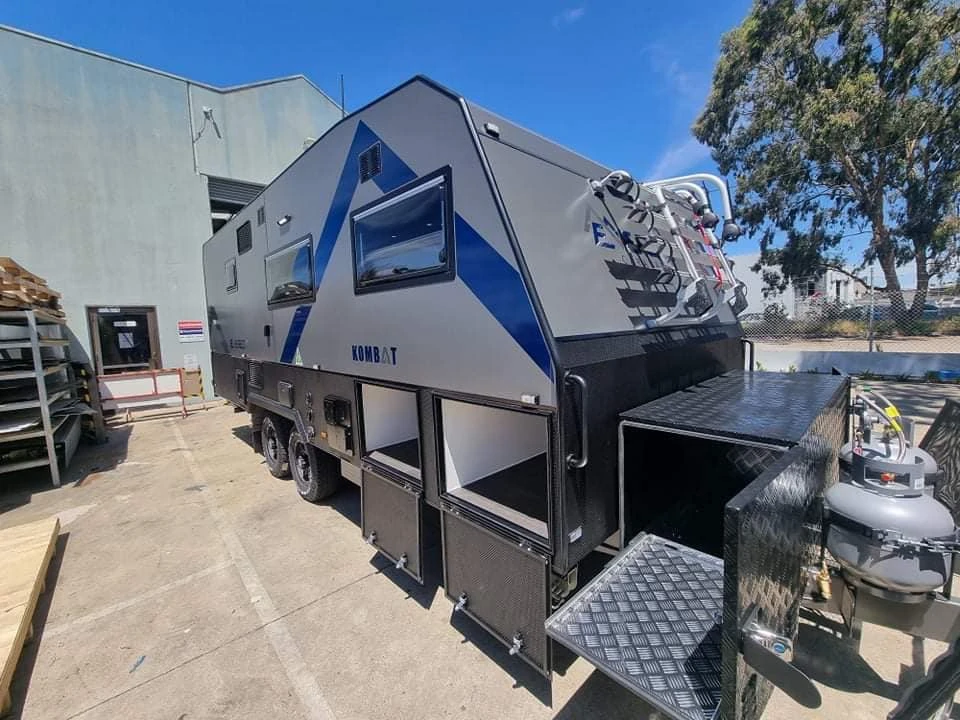

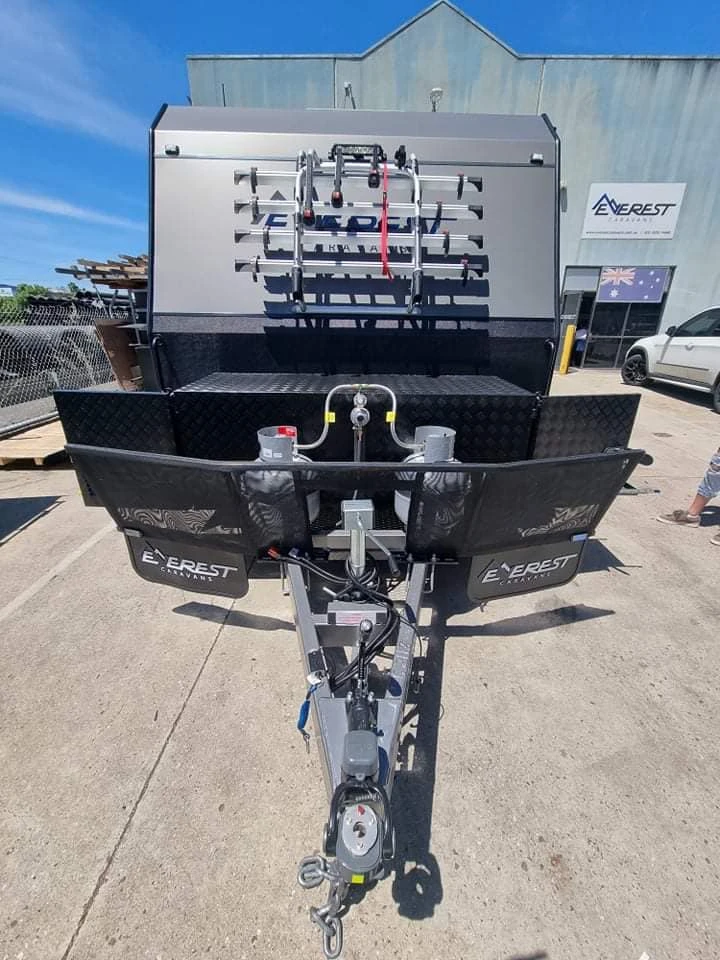

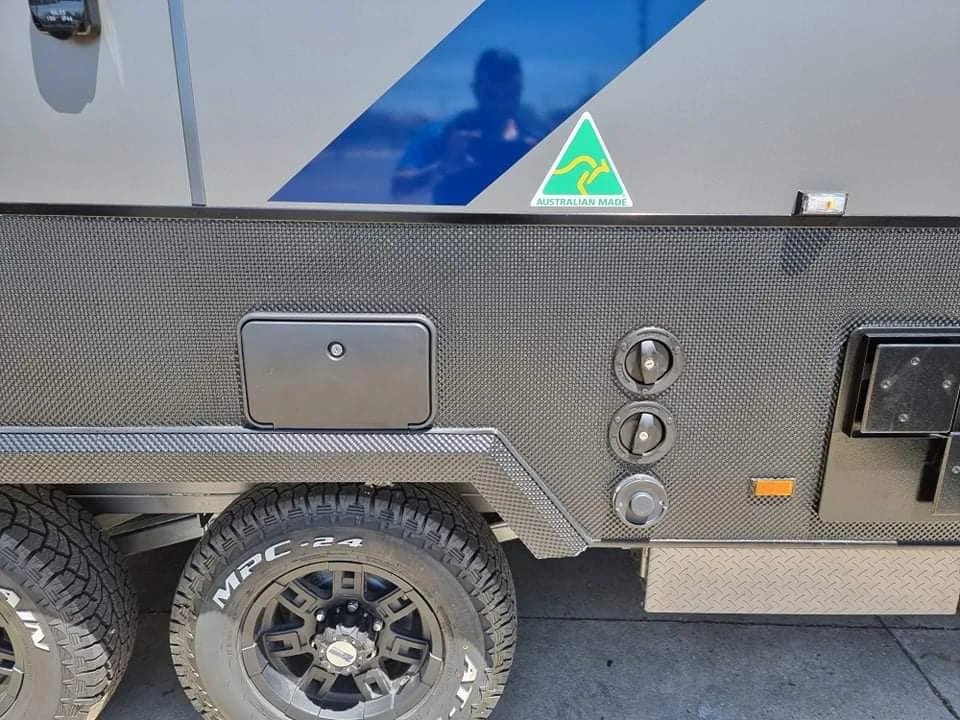

External Gallery

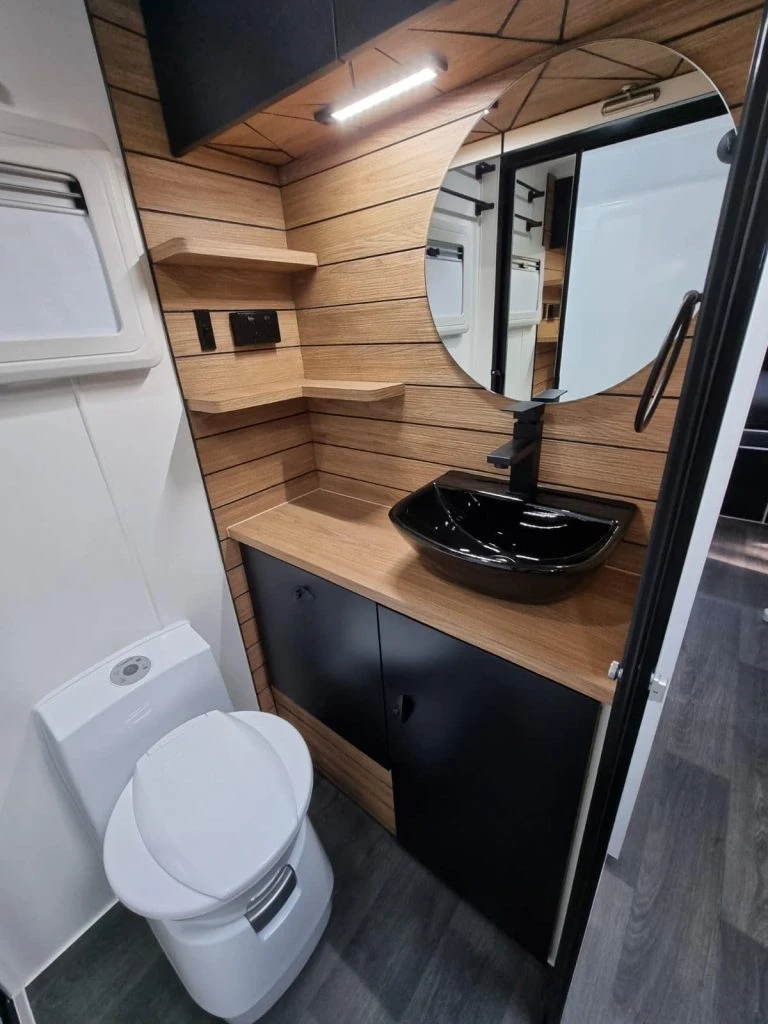

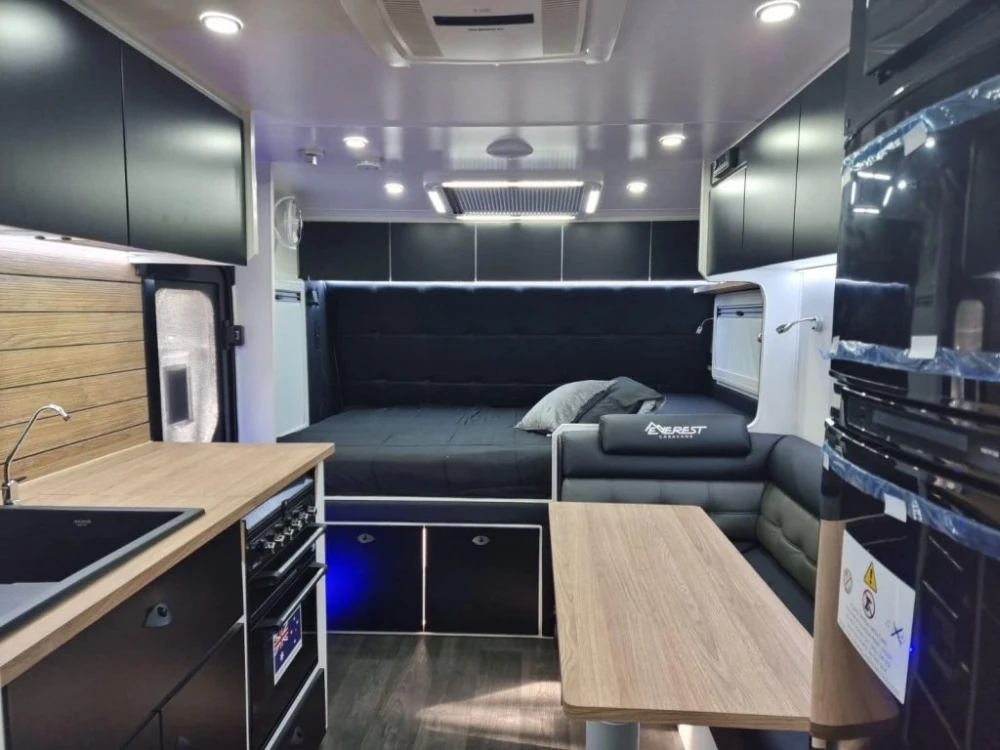

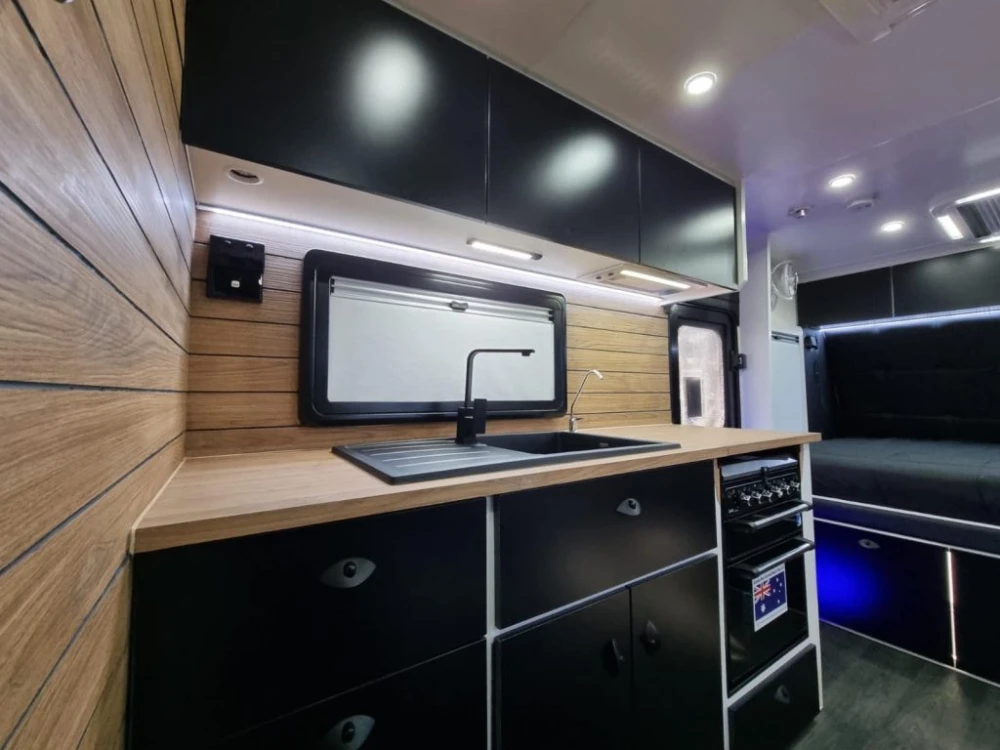

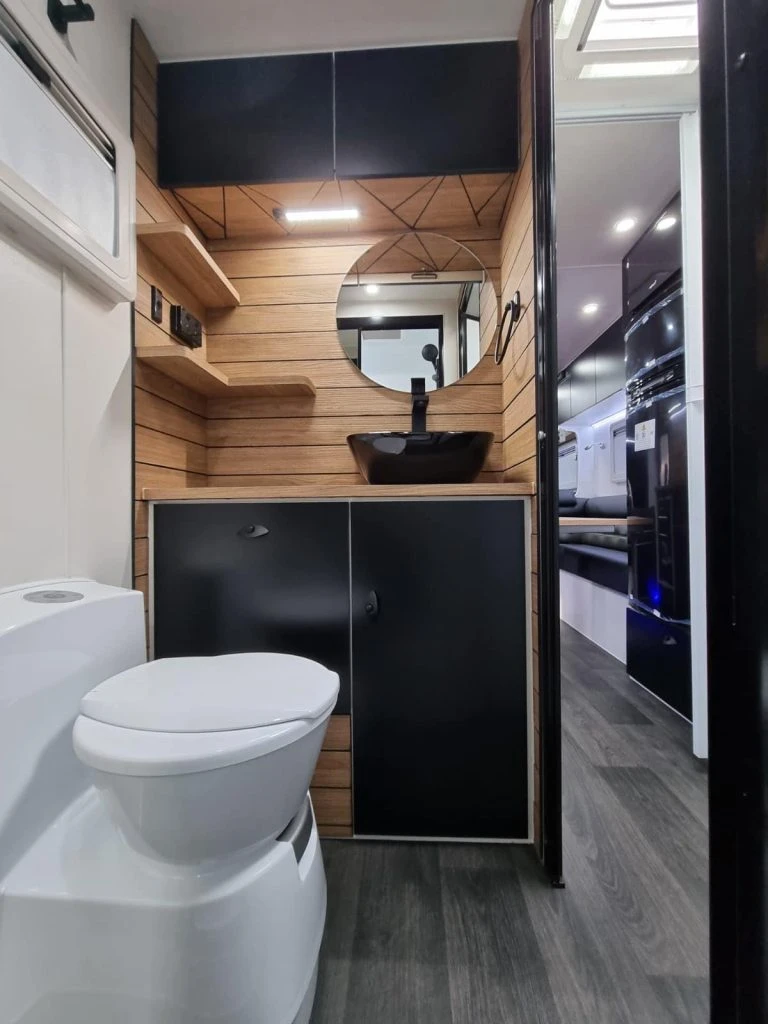

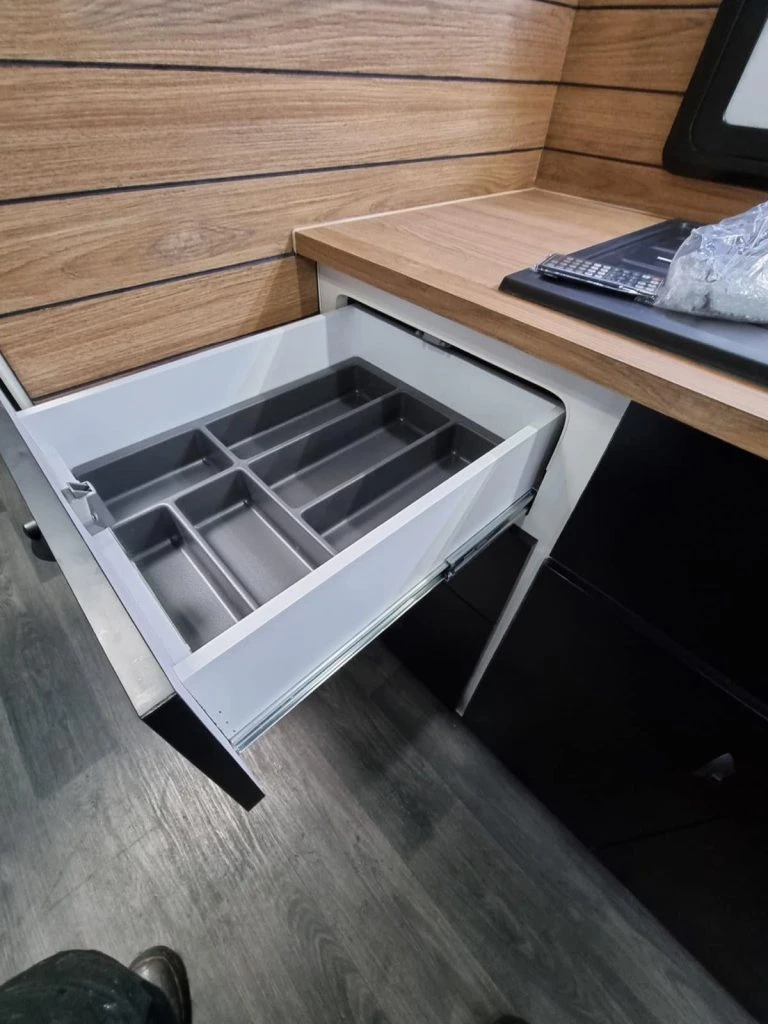

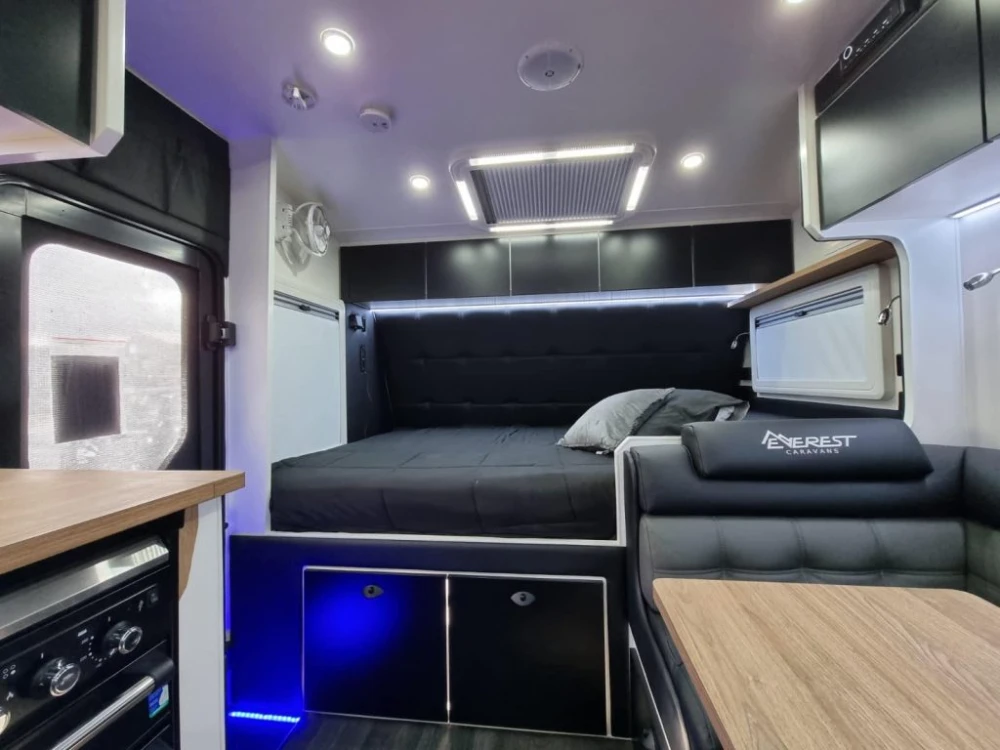

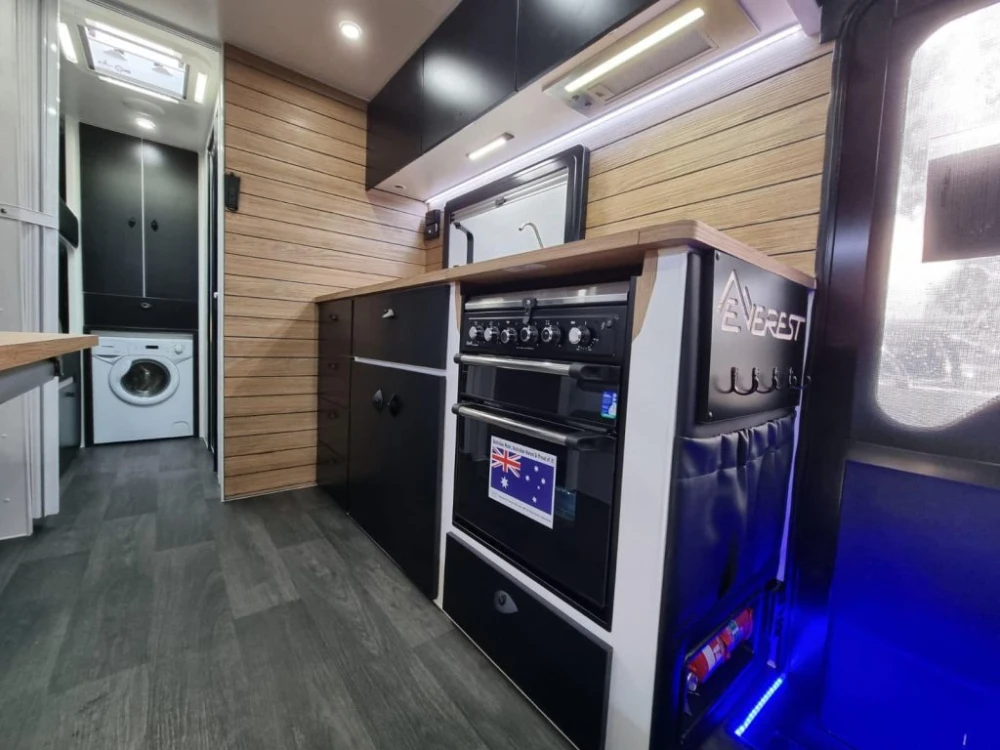

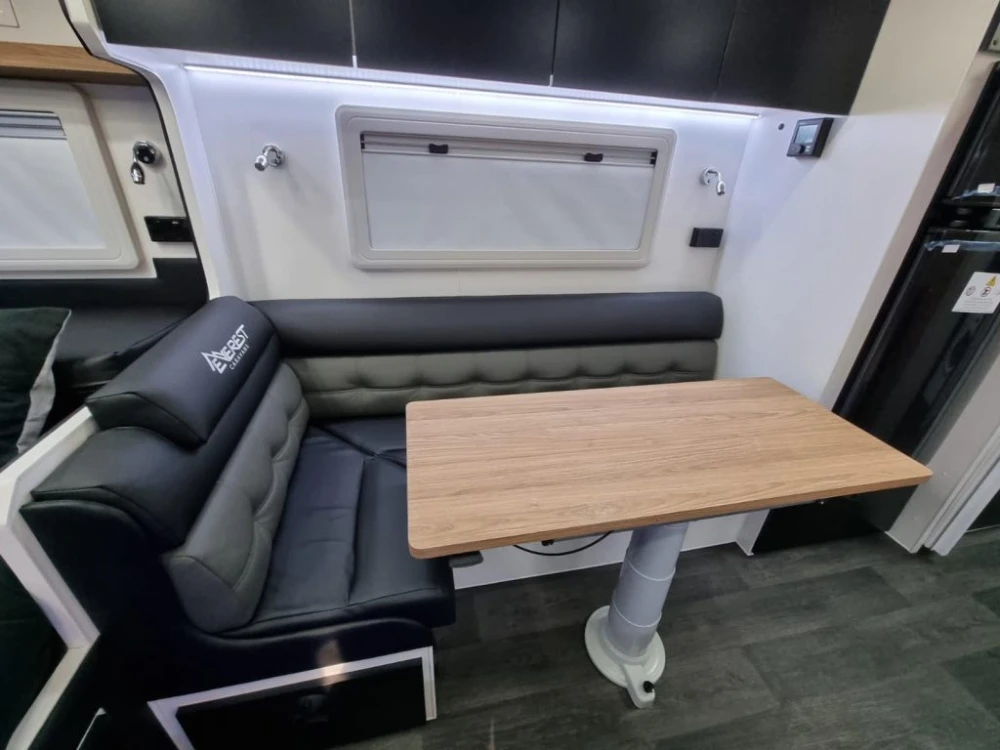

Internal Gallery

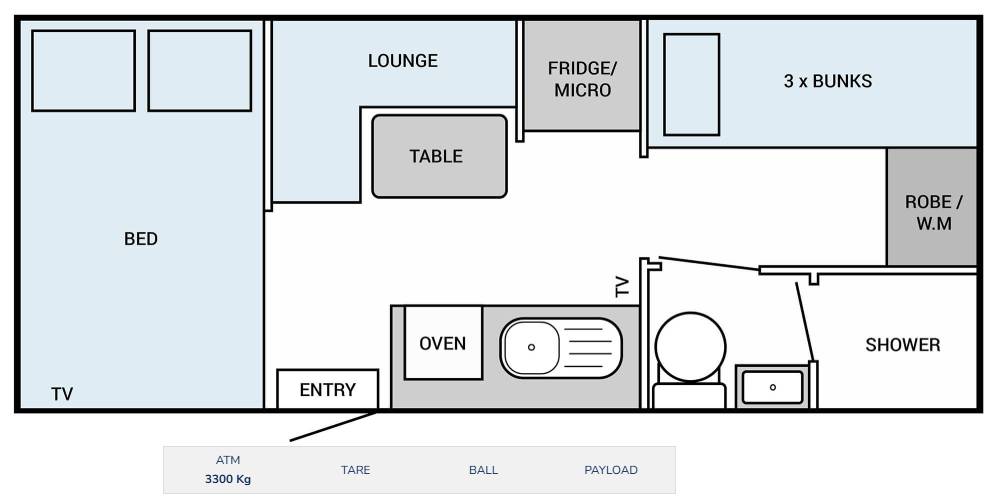

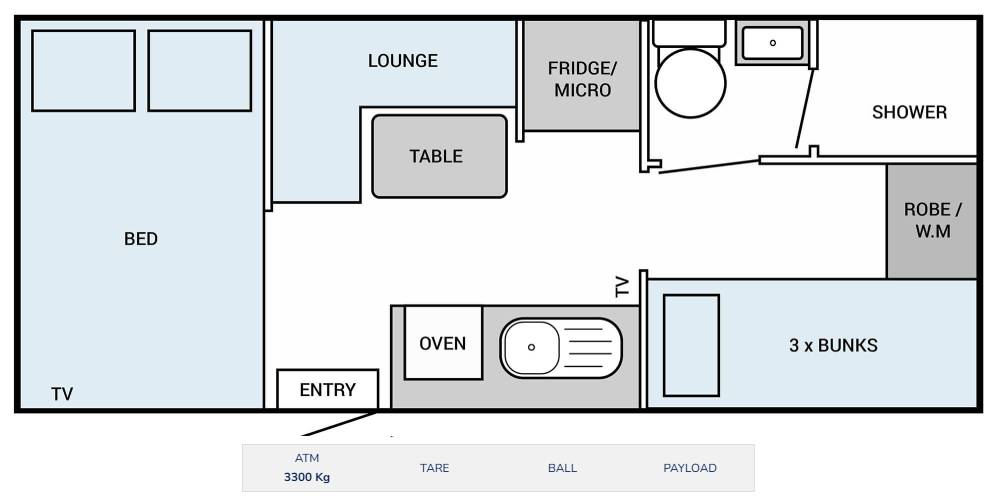

Floor Plans
19.7FT KOMBAT E1
19.7FT KOMBAT E1
