Overview

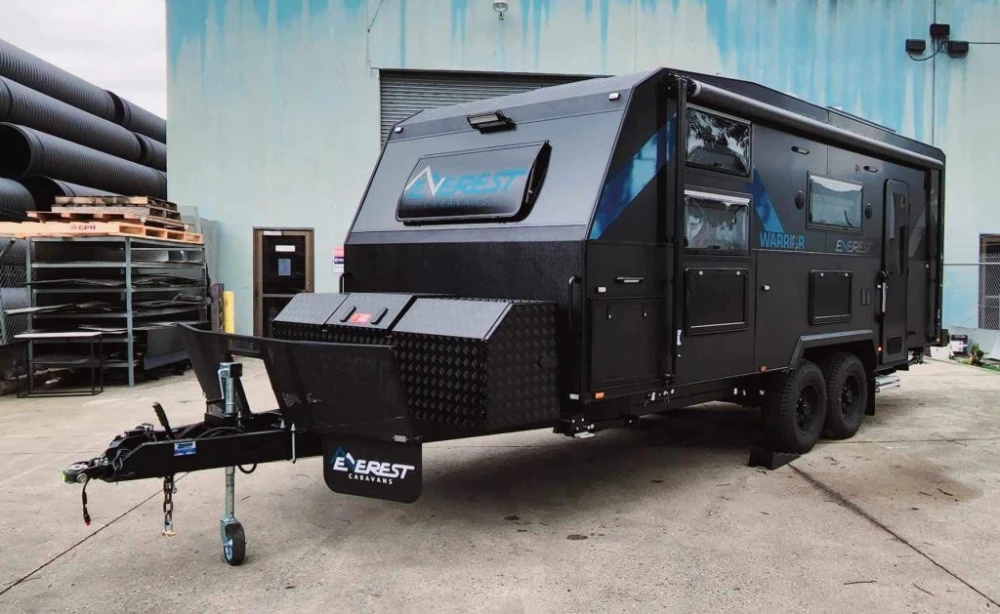

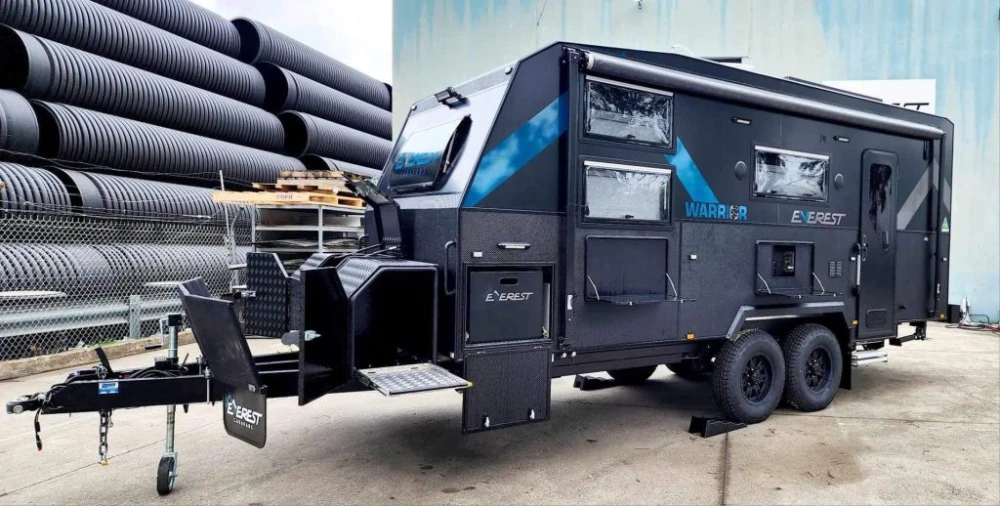

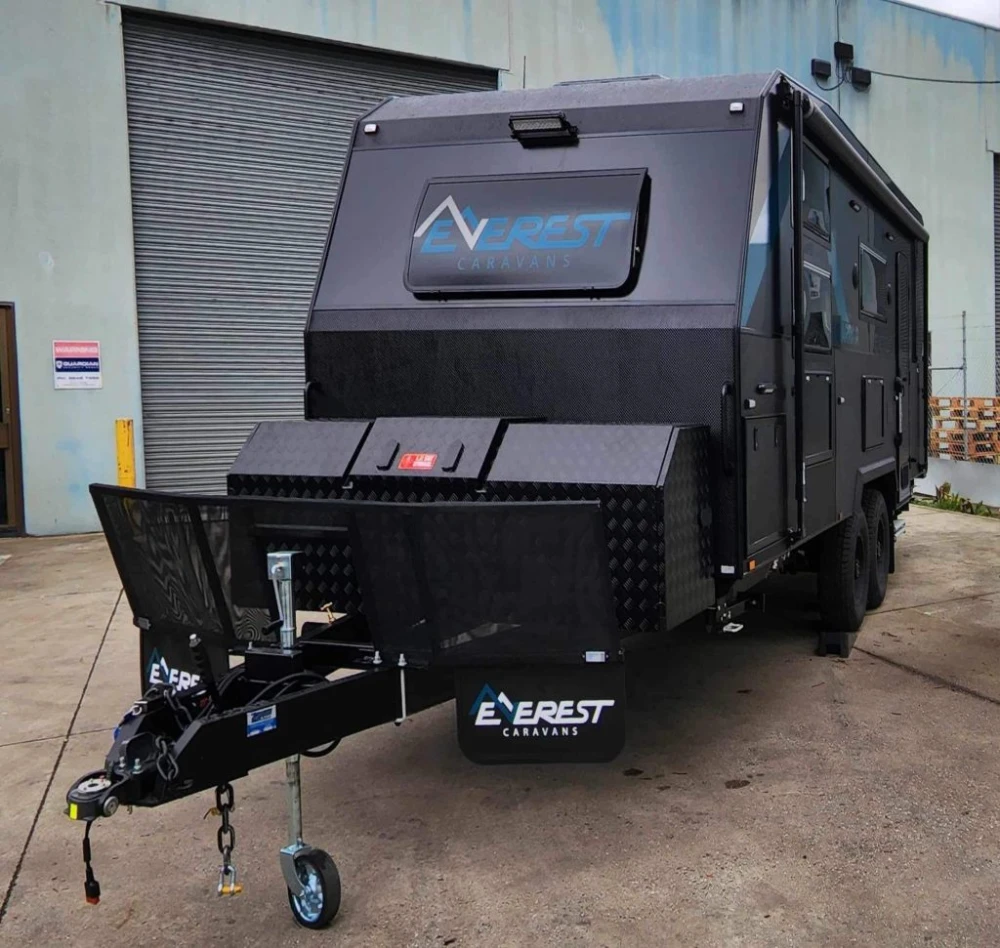

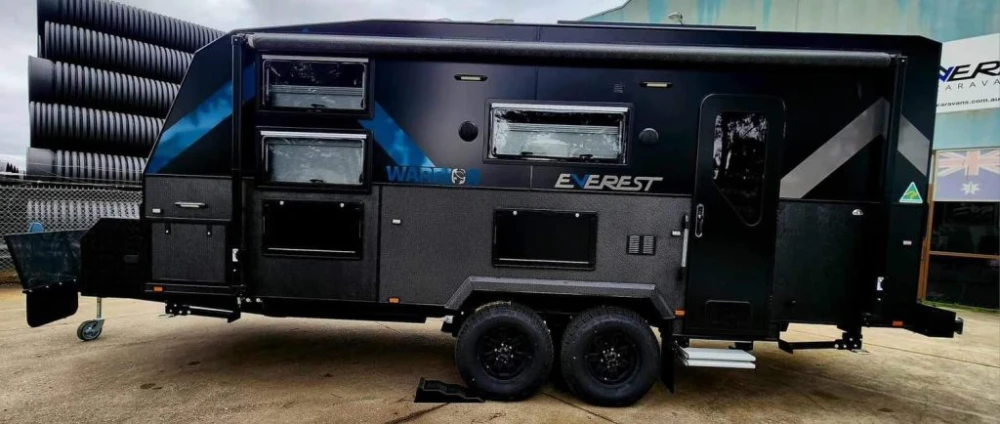

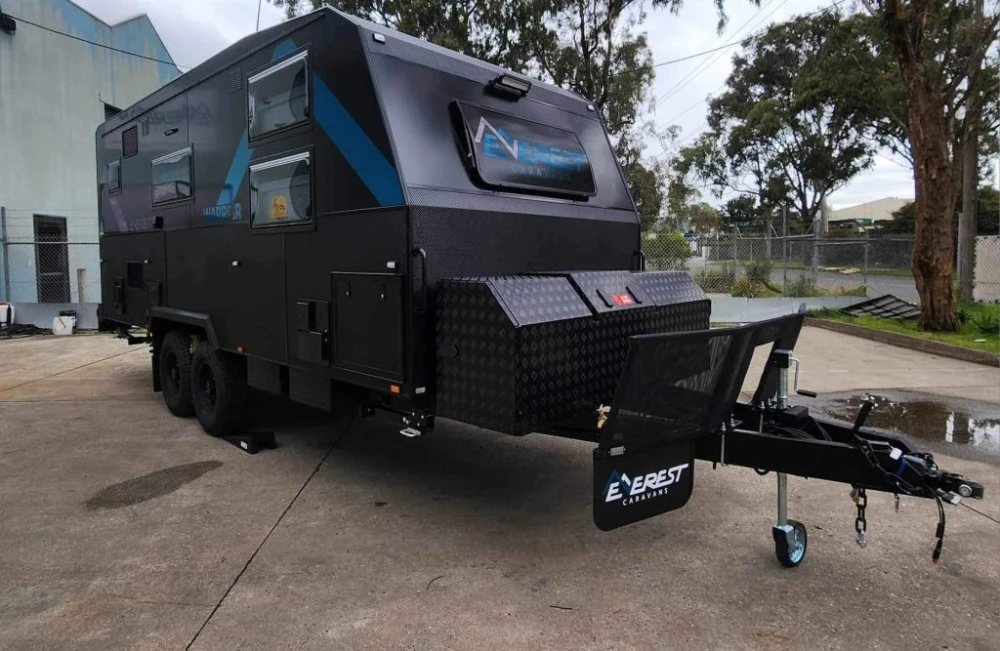

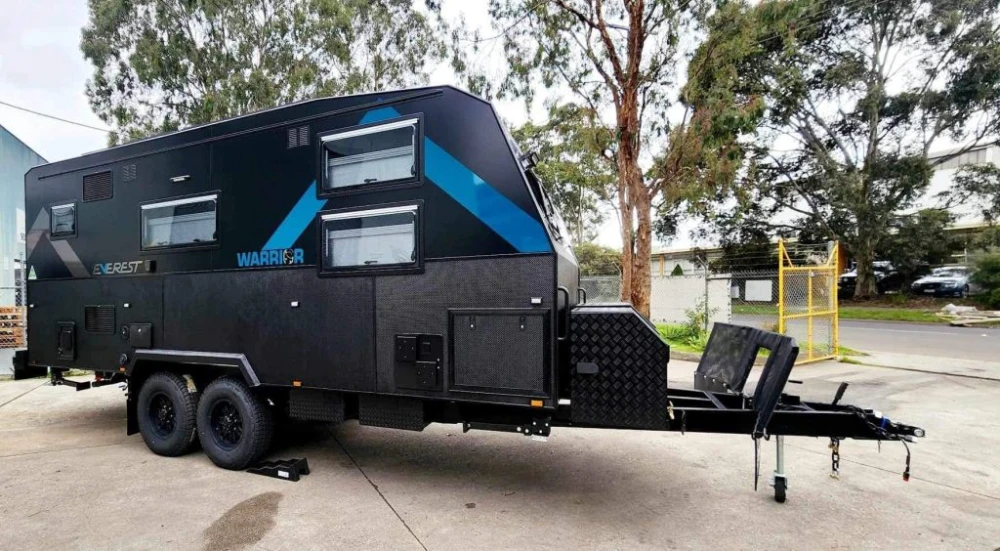

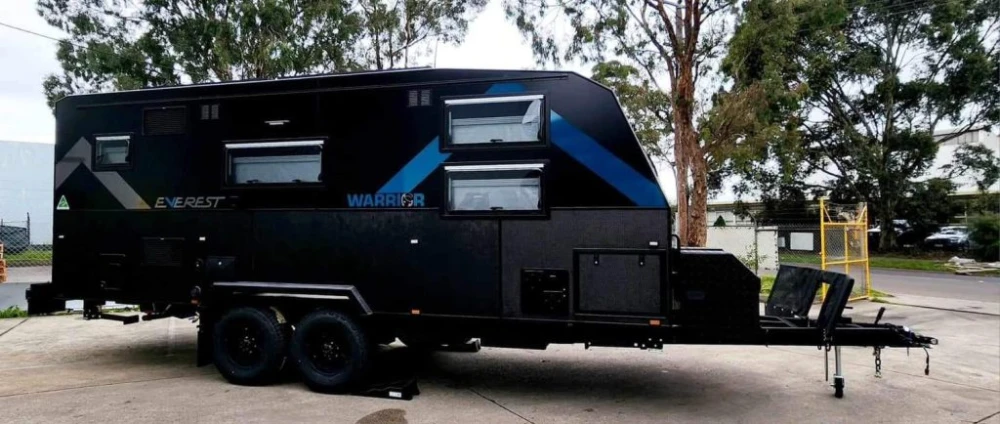

Everest Couple’s Van the WARRIOR a Full off-road caravan has been designed and constructed to give added strength, ground clearance and durability, for all off-road off-grid usage its ready for the roughest off-road terrain in Australia with its six-inch hot dipped galvanized chassis, full X Plate protection and let’s not forget the durable 3.5t Oz Trek independent suspension.
ROCK SOLID PLATFORM The warrior comes standard with a 3.5t independent oz trek suspension. The Everest Warrior is protected by a x plate amour all around the van to be able to take you anywhere!
GO OFF-GRID The Warrior is equipped with all the features you need for independent camping. With triple solar, Lithium batteries, jerry can holders, tanks, gas bottles and spare wheel you won’t ever have to look back! Hit the off terrain with peace of mind!

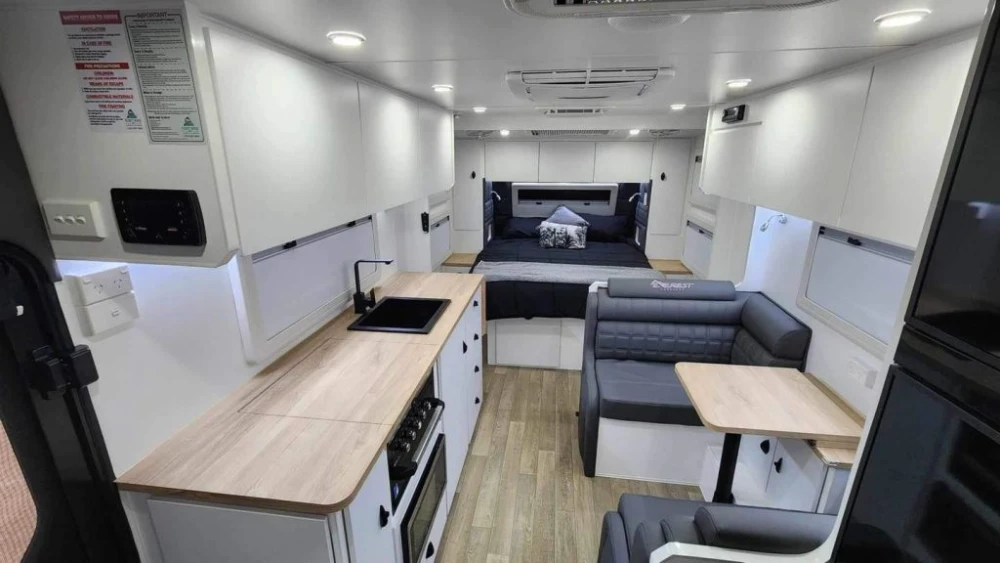

LUXURIOUS INTERIOR Step inside the only to find the finest finish. The van is complete with lux furnishings and appliances including a large 224ltr fridge, stove top or can have a full oven and reverse cycle air-conditioning.
Specifications
Chassis & Running Gear
16 features
| Chassis | Supergal Australian RHS Steel Chassis, |
|---|---|

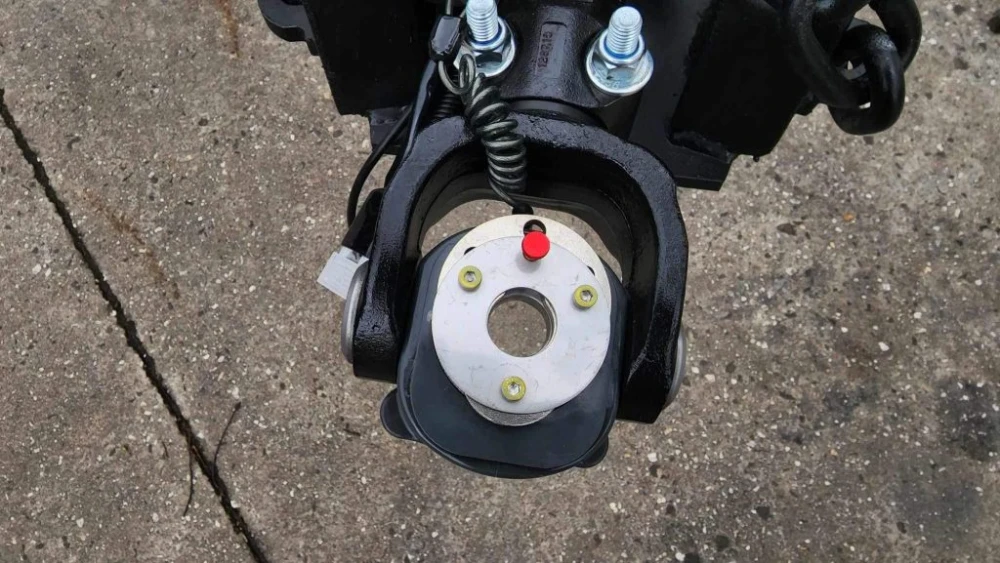

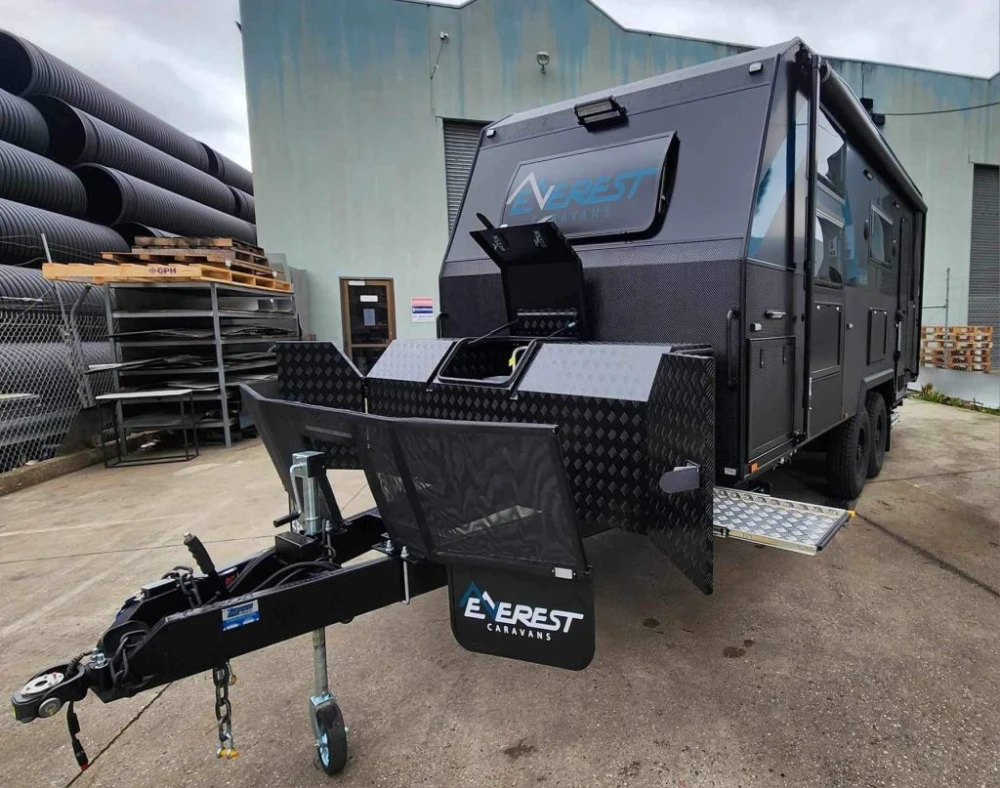

| Hitch | Full Articulated Off-Road Tow Hitch |
| A - Frame | 6” Extended A Frame with RHS Australian made Steel |
| Deck | 9” Chassis – 6' deck x3 raiser” Chassis, RHS Australian Steel |

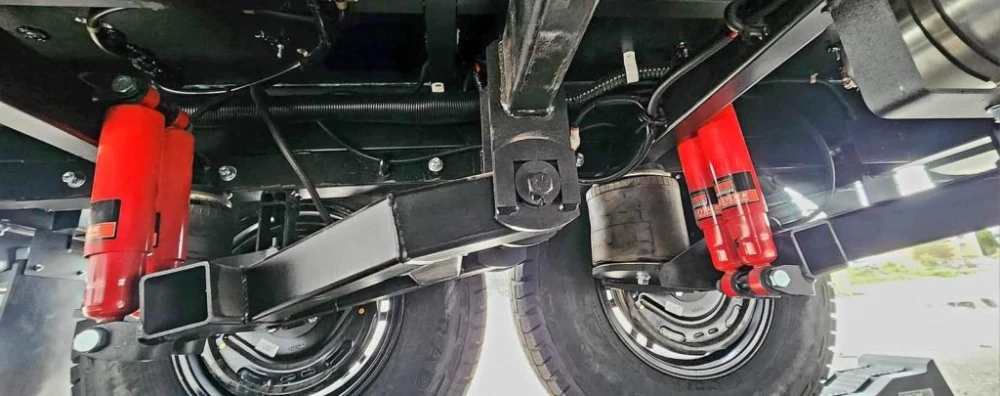

| Suspension | 3.5 T Oz Trekker Suspension Full Offroad Independent Suspension |

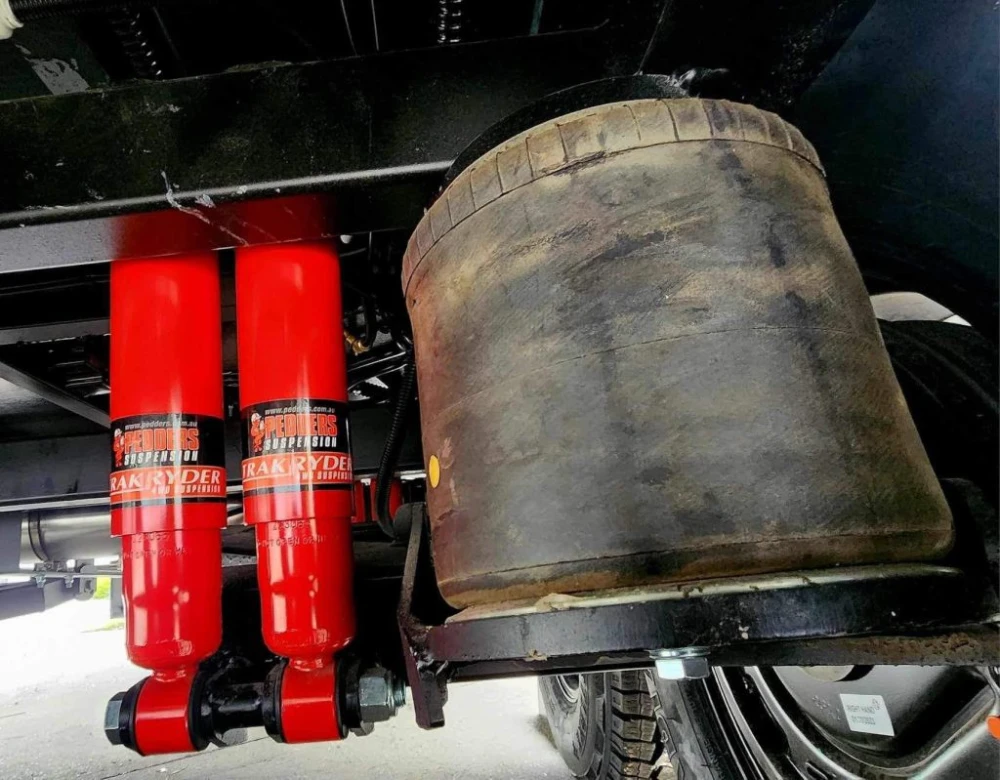

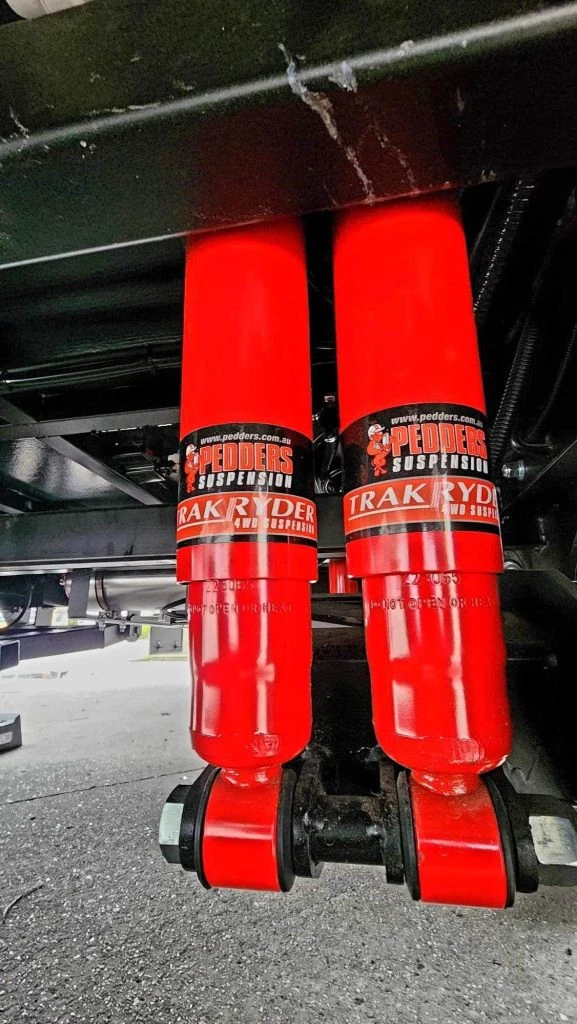

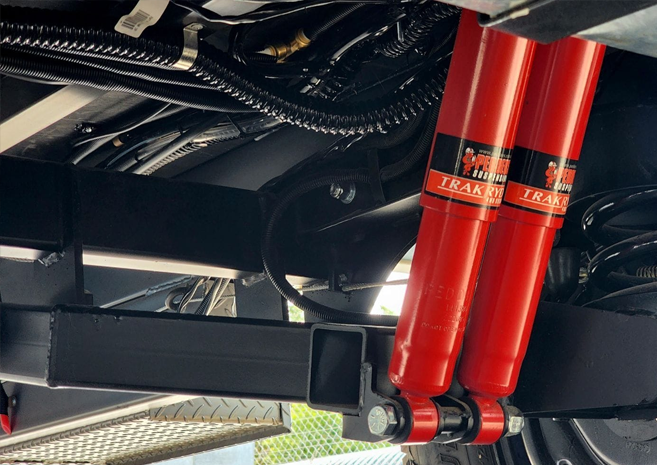

| Shockers | Pedder’s Suspension Trak Ryder Dual Shock Absorbers & Spring |

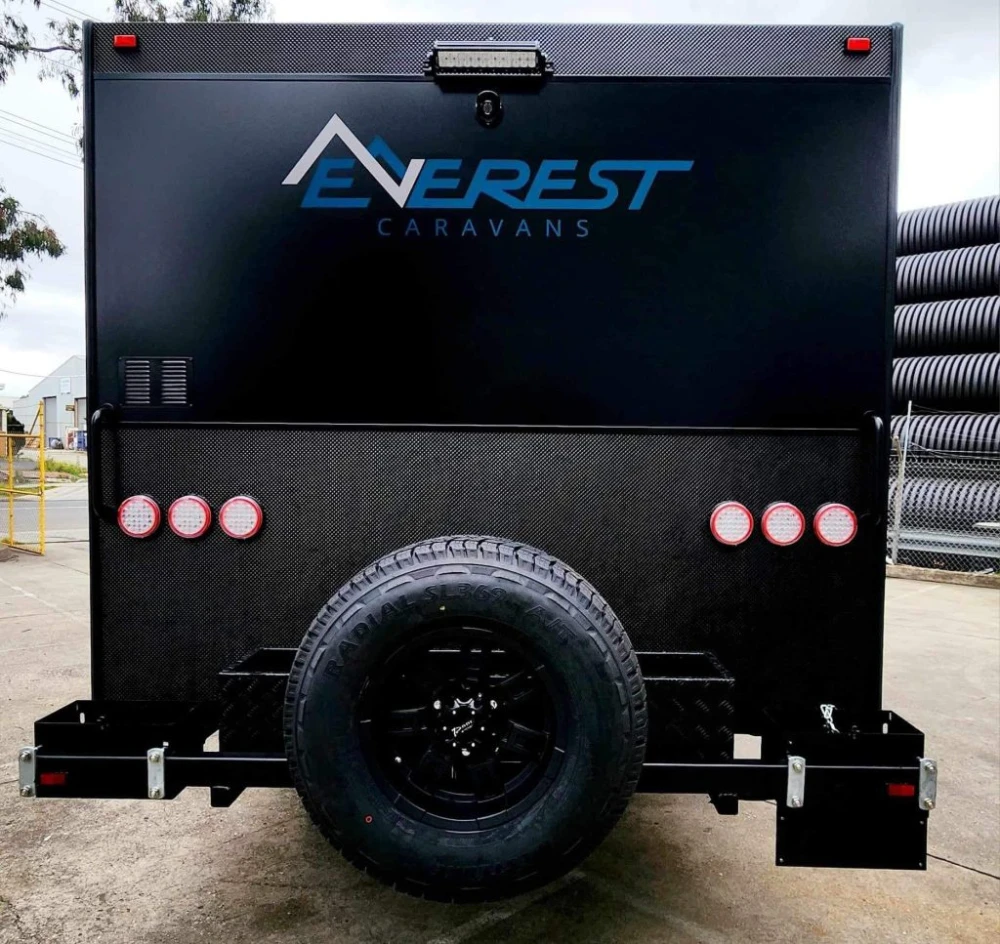

| Bumper | 4 Arm Heavy Duty Steel Bumper (Rear) |
| Jerry Can Holders | 2 x Black Rear Mounted |
| Stabilising Legs | 4 x Heavy Duty Stabilising Corner Legs |

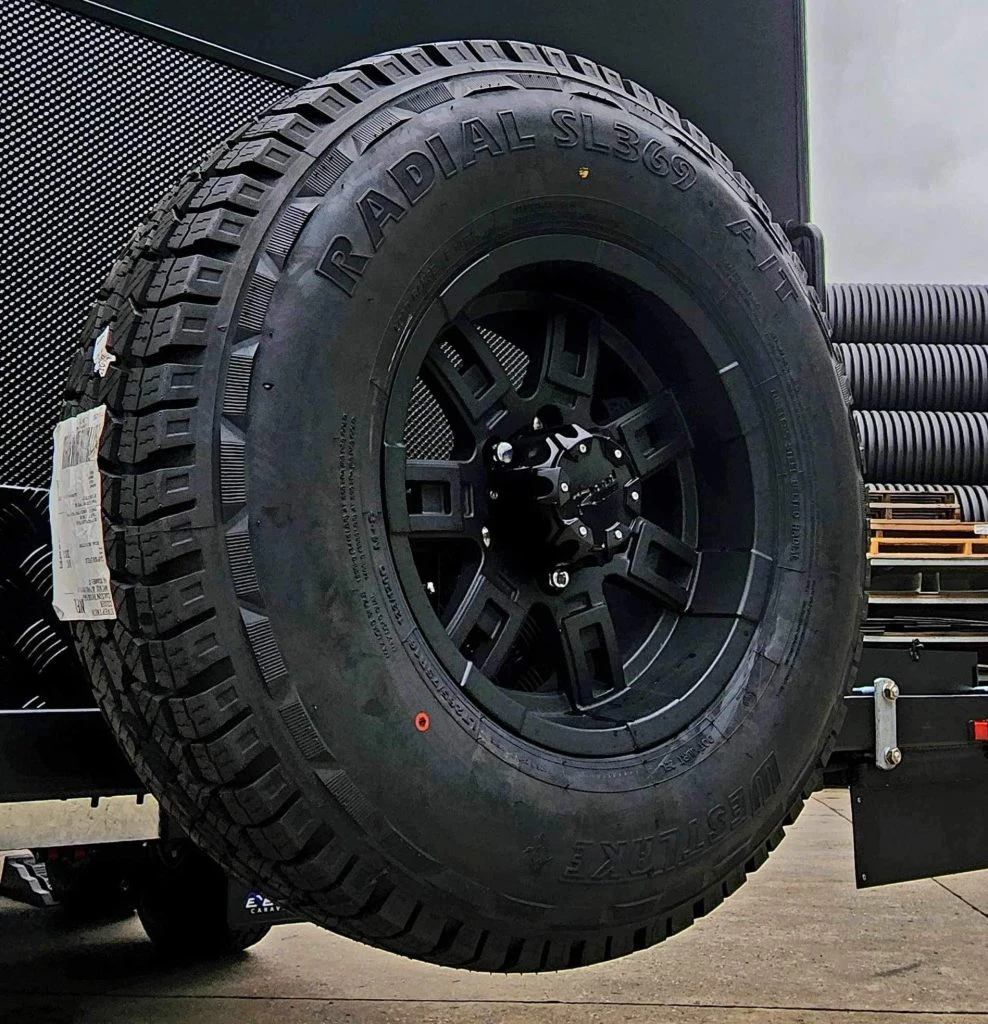

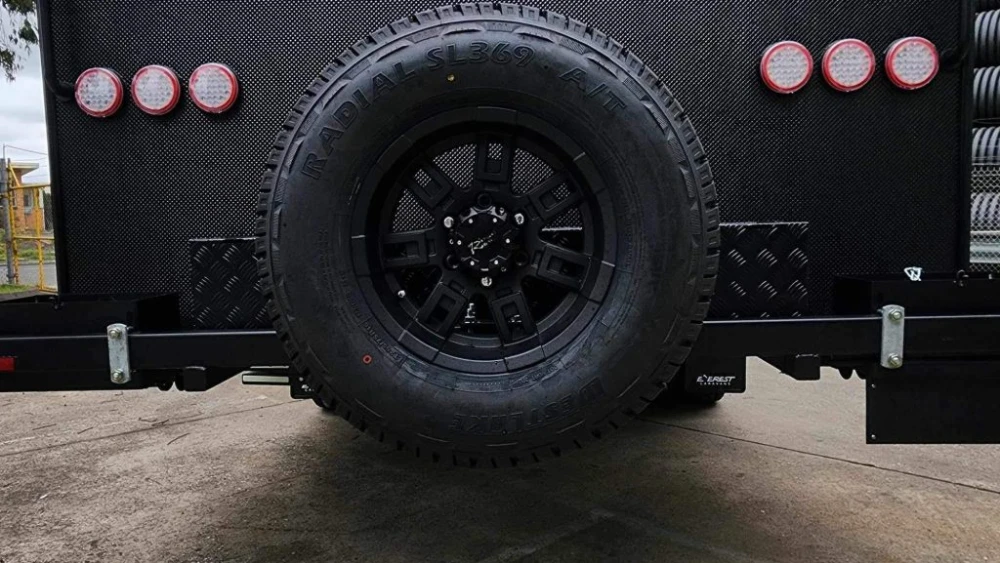

| Spare Wheel | 1x R16” 265/75 Rims and Off-Road ALL Terrain Tyres /Optional Mud Terrain Tyres |
| Wheels | 5 x R16” 265/75 Rims and Off-Road ALL Terrain Tyres |
| Jockey Wheel | 8" Alko Heavy Duty Centre Mounted Jockey Wheel |
| Brakes | 12" Electric |
| Battery Box | Dual Heavy Duty Steel Box |
| Jack Corner Supports | 4 |
| Jack | Kojack |
External Build
8 features
| Walls Framing | 2x1 Meranti Timber 42mmx19mm Stapled Glued with 3ml White Plywood |
|---|---|
| Furniture | Meranti Timber Stabled Glued screwed with 3ml White Stipple Plywood |
| Floor - Marine Grade Plywood | One Piece (Structural Grade) |
| Roof | 2x 1 42mmx19mm Meranti Timber Double installation 6ml & 12ml lightweight plywood |
| Hard Wearing Vinyl Floor | 1x piece Vinyl Floor glued |
| Building | Furniture front, back, roof all Screwed plus Bolted |
| Frame | Meranti Timber |
| Insulation | Styrene (Walls & Roof) |
External Features
29 features
| Cladding | Corrugated or High-Profile Aluminium |
|---|---|
| x Plate | side /back/front x plate |
| Cladding Front | Flat Aluminium Composite |
| Cladding Back | Flat Aluminium Composite |
| Cladding Roof | Fibreglass Skin |
| Sway Control | Alko Sway control |
| Alfresco BBQ Kitchen | Slide out Swift alfresco kitchen in tunnel boot with stainless sink and grill |
| Window - Double Glazed | Dometic Double Glazed |
| Entry Door | Black Dust Proof Door (Tri-Lock) |

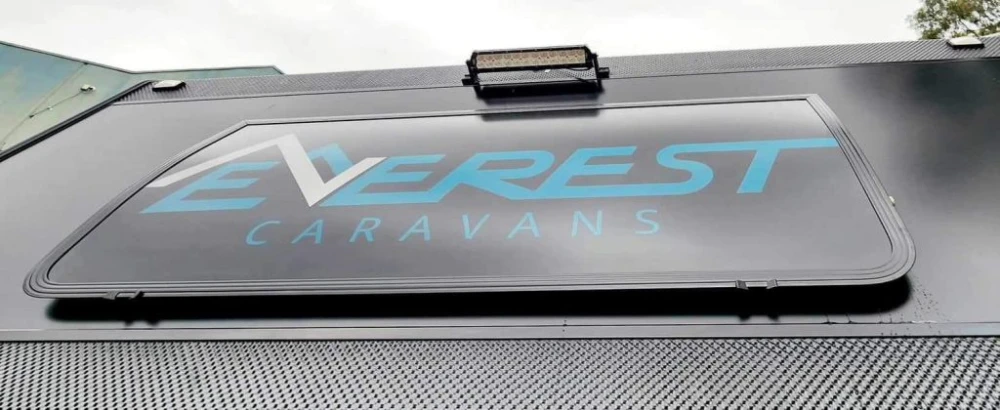

| Roof Hatch | 1 x 500 x 700mm |
| Roof Hatch | 1 x 400 x 450mm |
| Hatch Fan | 2 x 12vlt Shower/Toilet |
| Speakers (External) | 2 x Black Internal 6" Outdoor Marine Speaker |

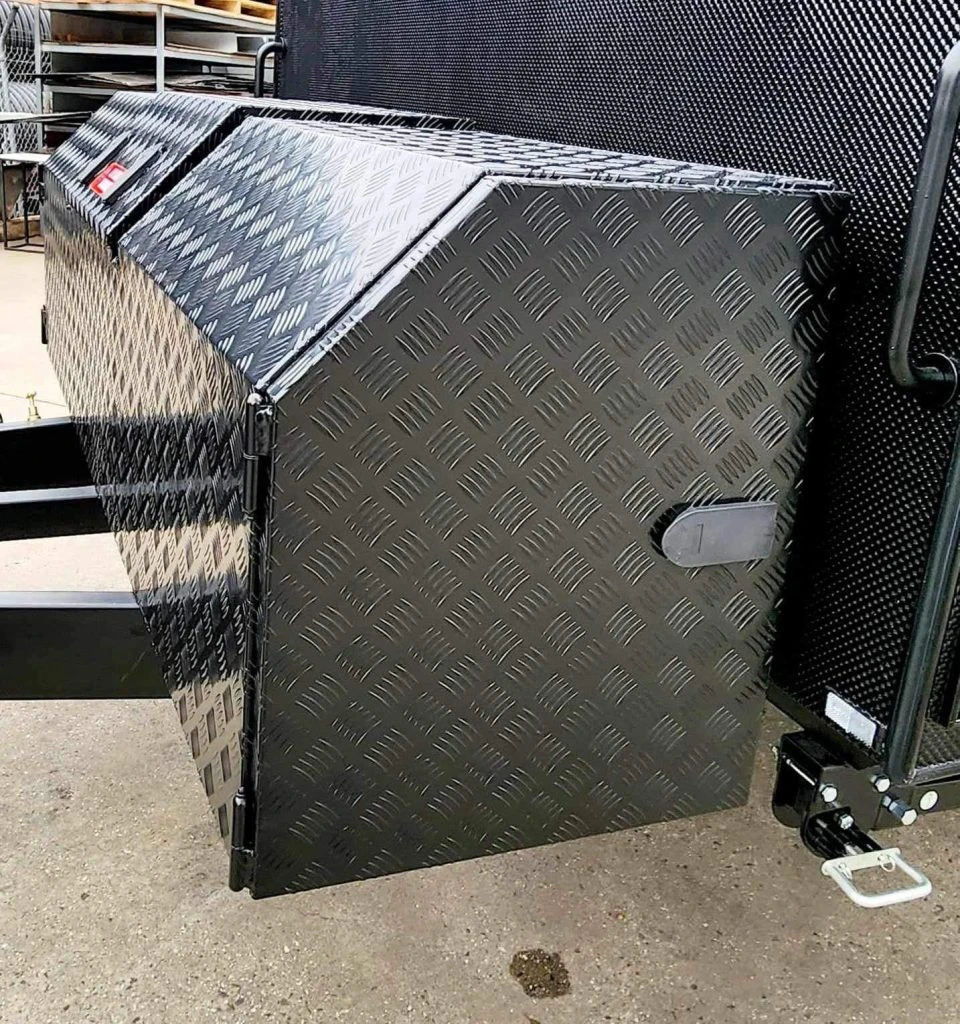

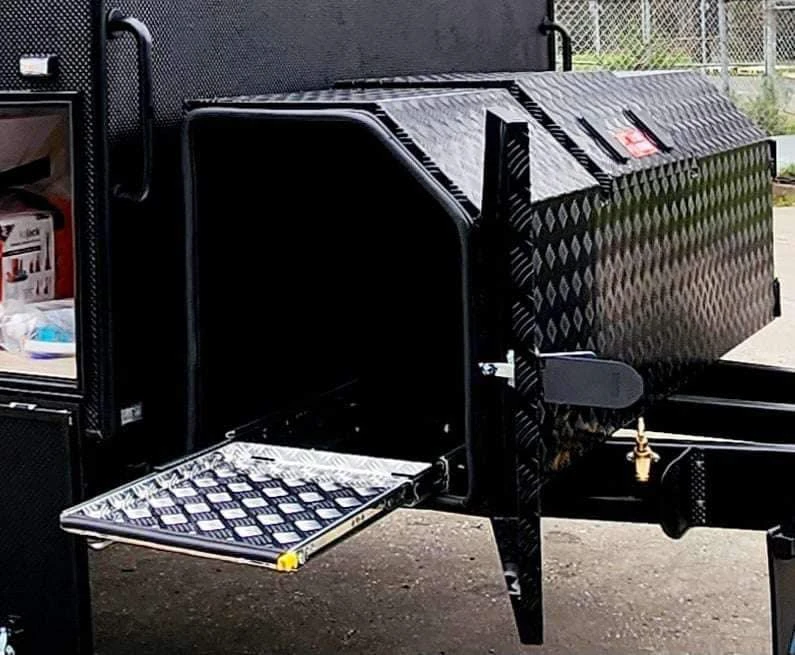

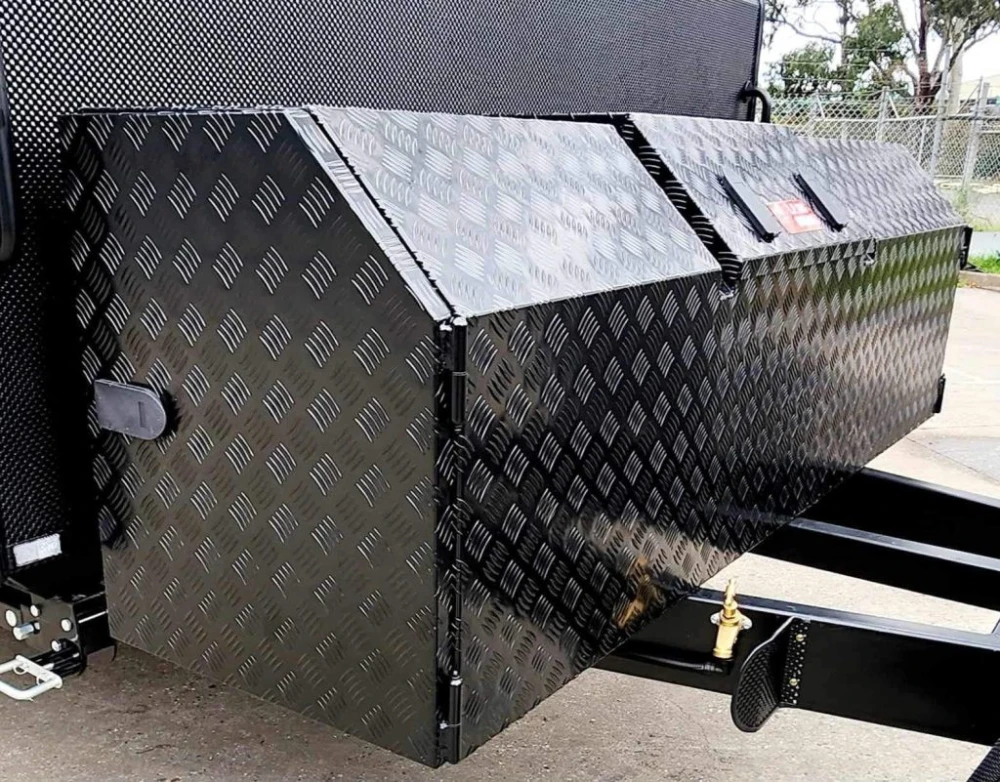

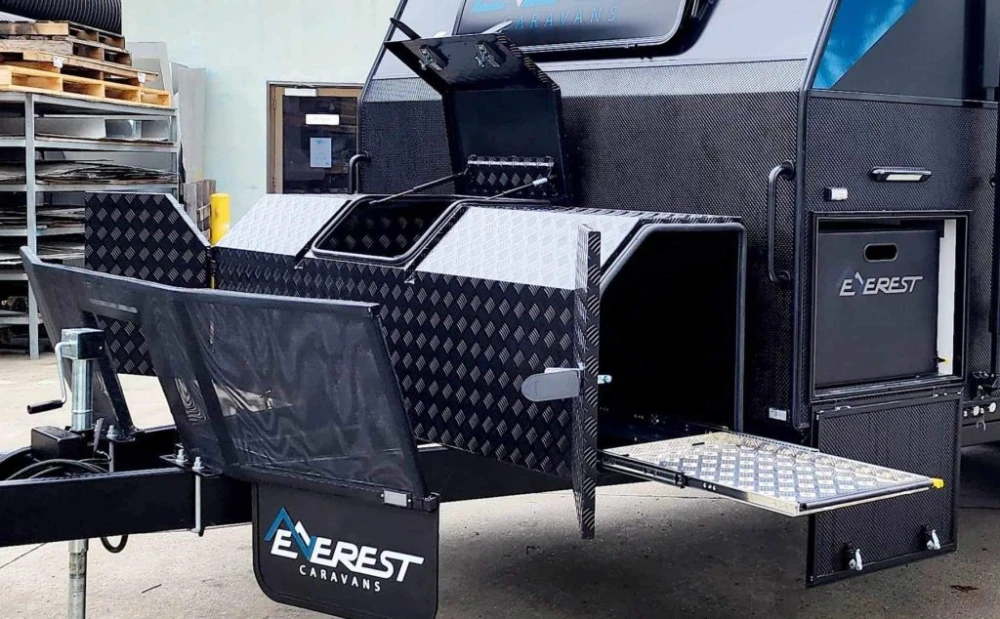

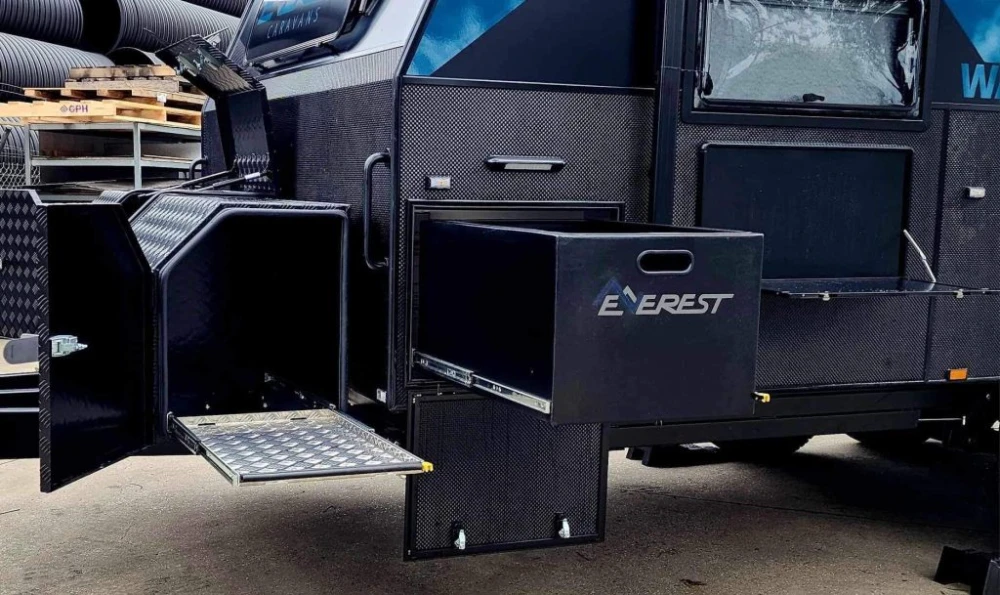

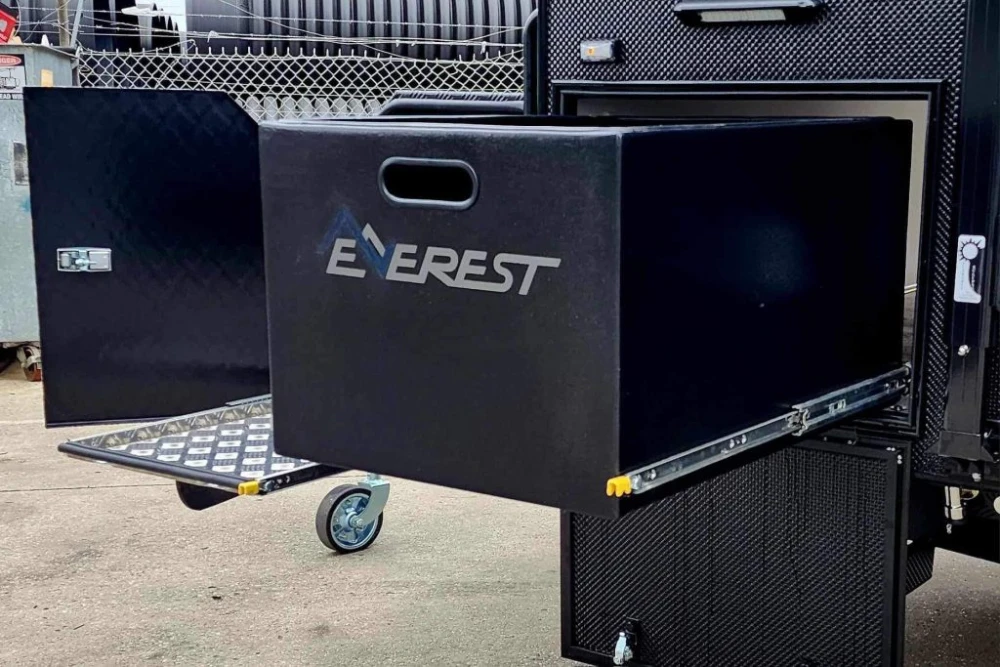

| Toolbox | With Generator Slide-Out (Off-Side) |
| Awning | Manual Charcoal Aussie Traveller Roll-Out with Centre Cradle Support Awning |
| Tunnel Boot | 2 x Extra Large Openings - Vinyl Floor/White Plywood Custom Aluminium Doors |
| Picnic Table | Drop Down Metal Picnic Table |

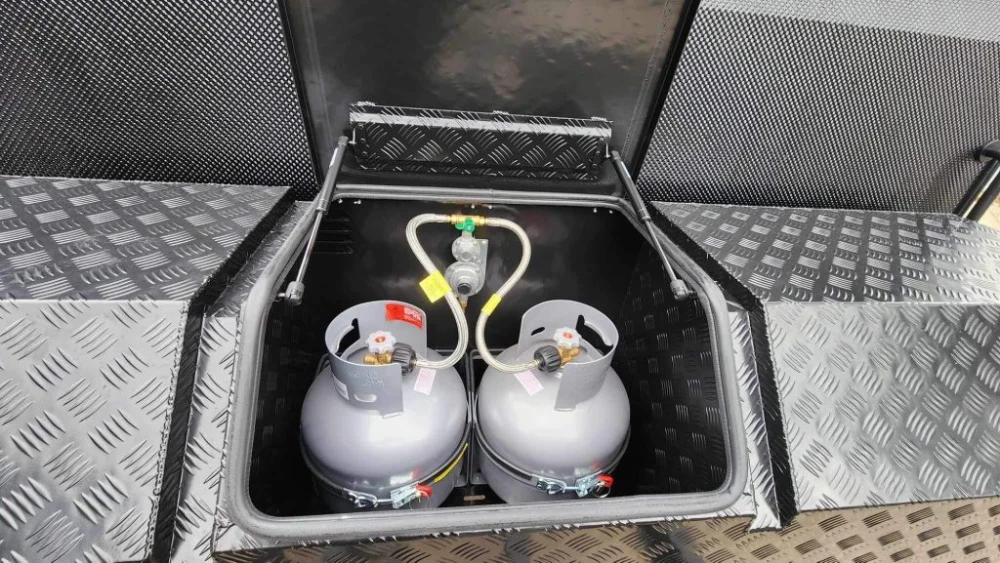

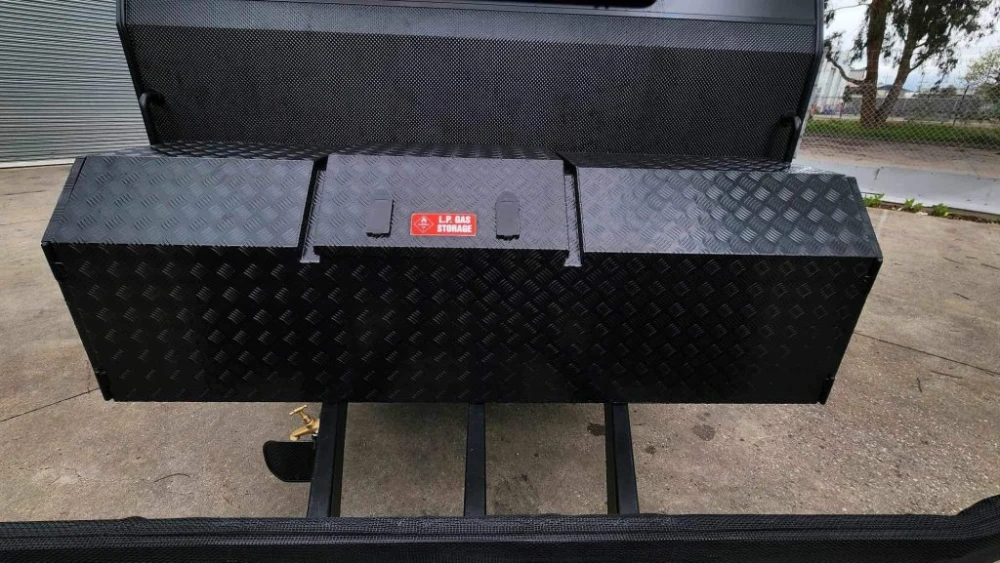

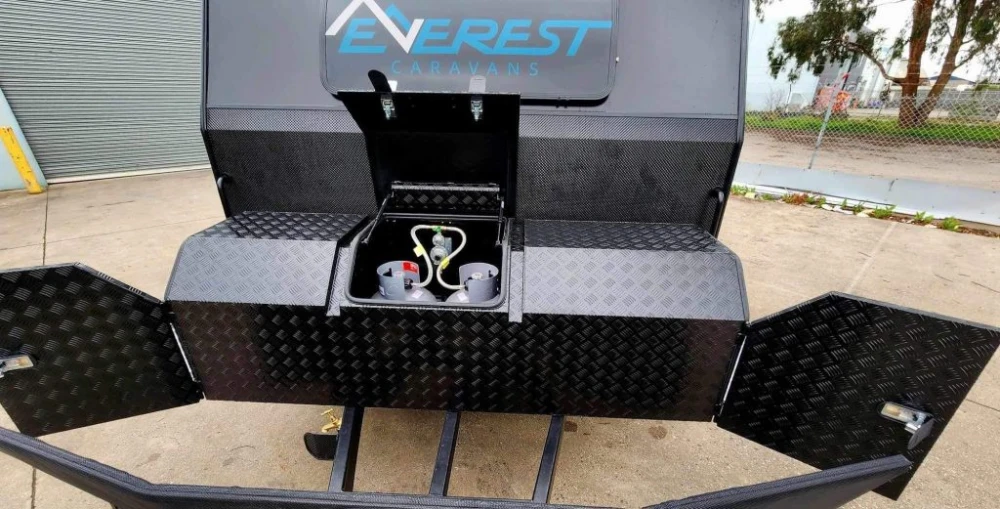

| Gas Bottles | 2 x 9kg (Silver Mounted on A-Frame) |
| Step | Double Pull Out (Manual) |

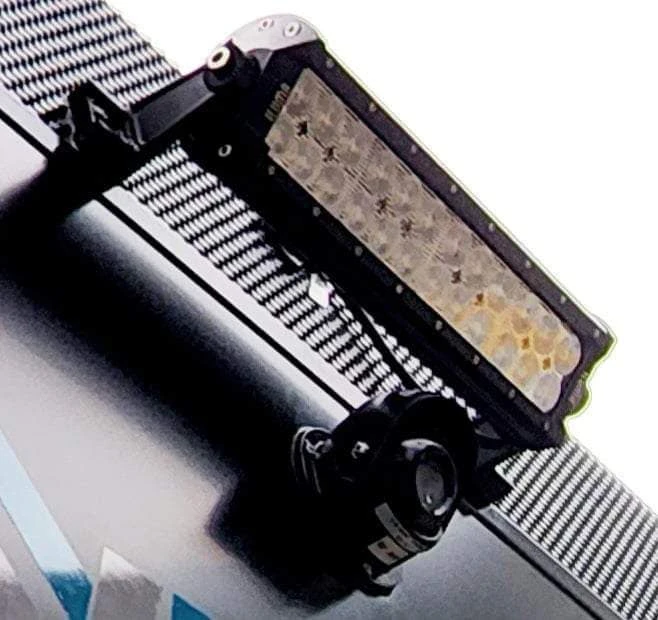

| Work Lights | 2x Stedi Work lights on front and rear |

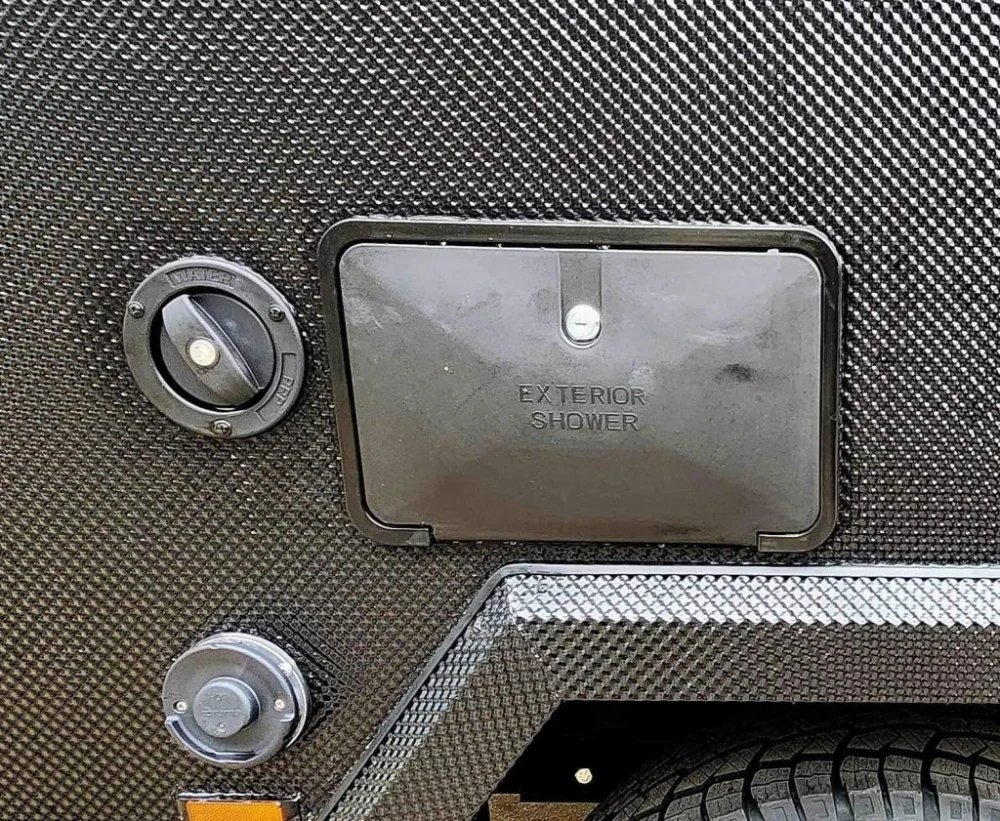

| External Shower | 1x Hot/Cold Water Marked Black |

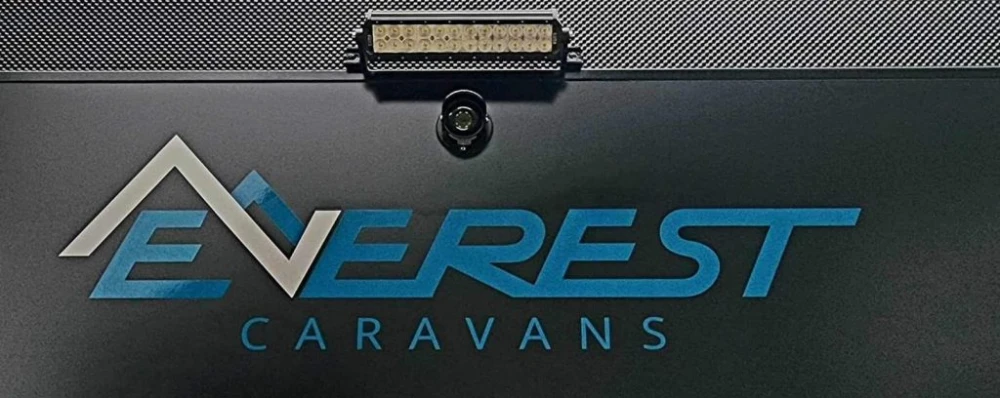

| Camera | Rear Safety Dave Camera |
| Coaxial input | 240V And Coaxial Offside Inputs |
| LED External Lights | 4 x Black Aluminium (2 x Below Awning, 1 x Offside, 1 x Over Tunnel Boot) |

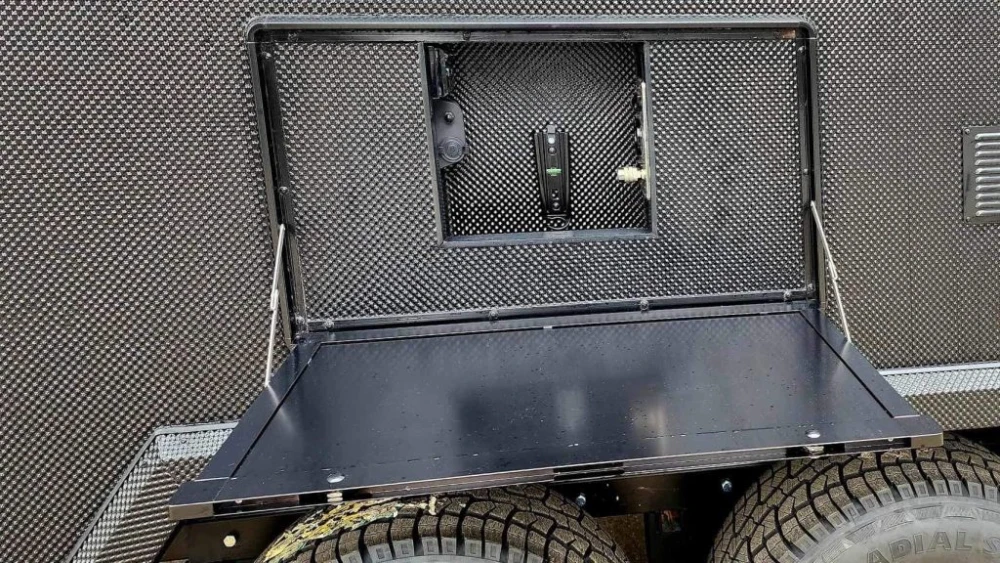

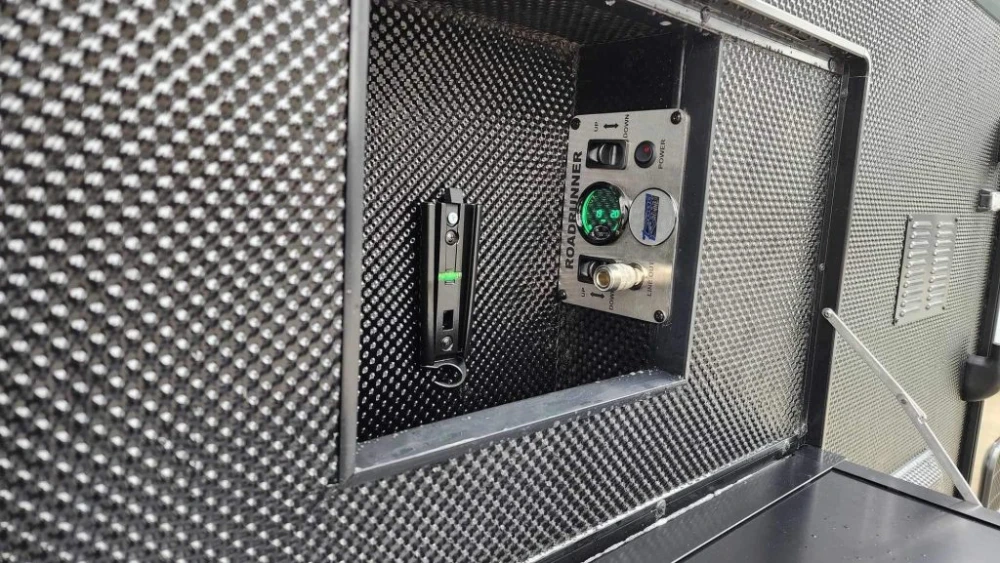

| External Tv Hatch | 1 x External Tv Hatch with Digital Coaxial, 12v, 2 x 240V and 1 x USB Connection Points, |
| Water Tank Protector | Galvanised |

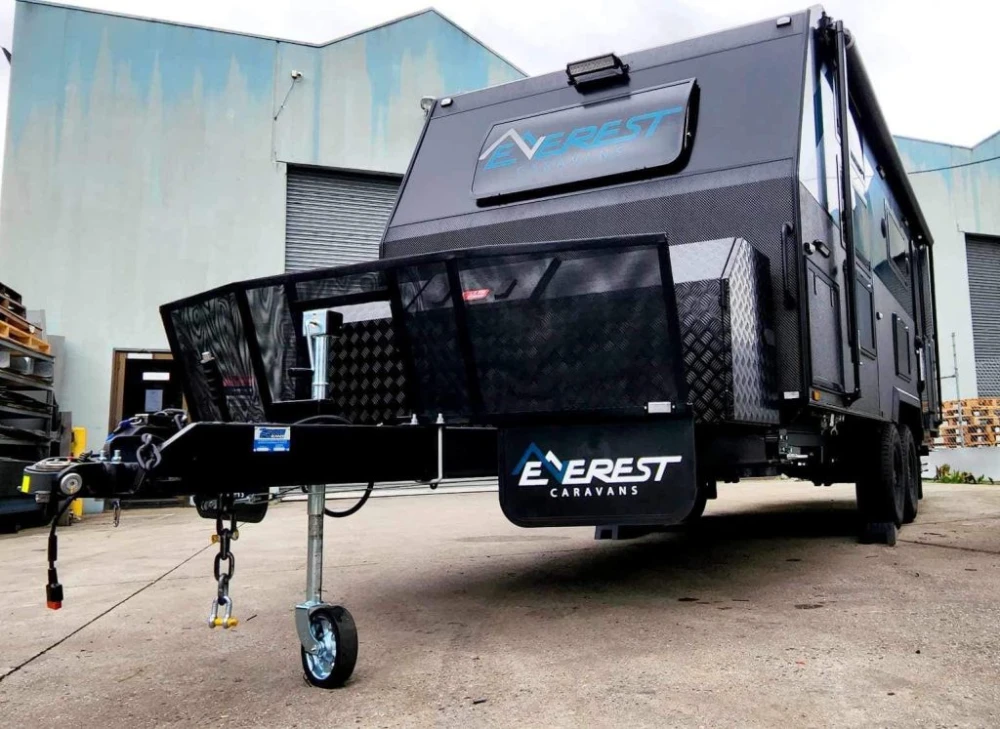

| Front Stone Mesh Guard | Front Stone Mesh Guard w/ mudflaps Everest Logo |

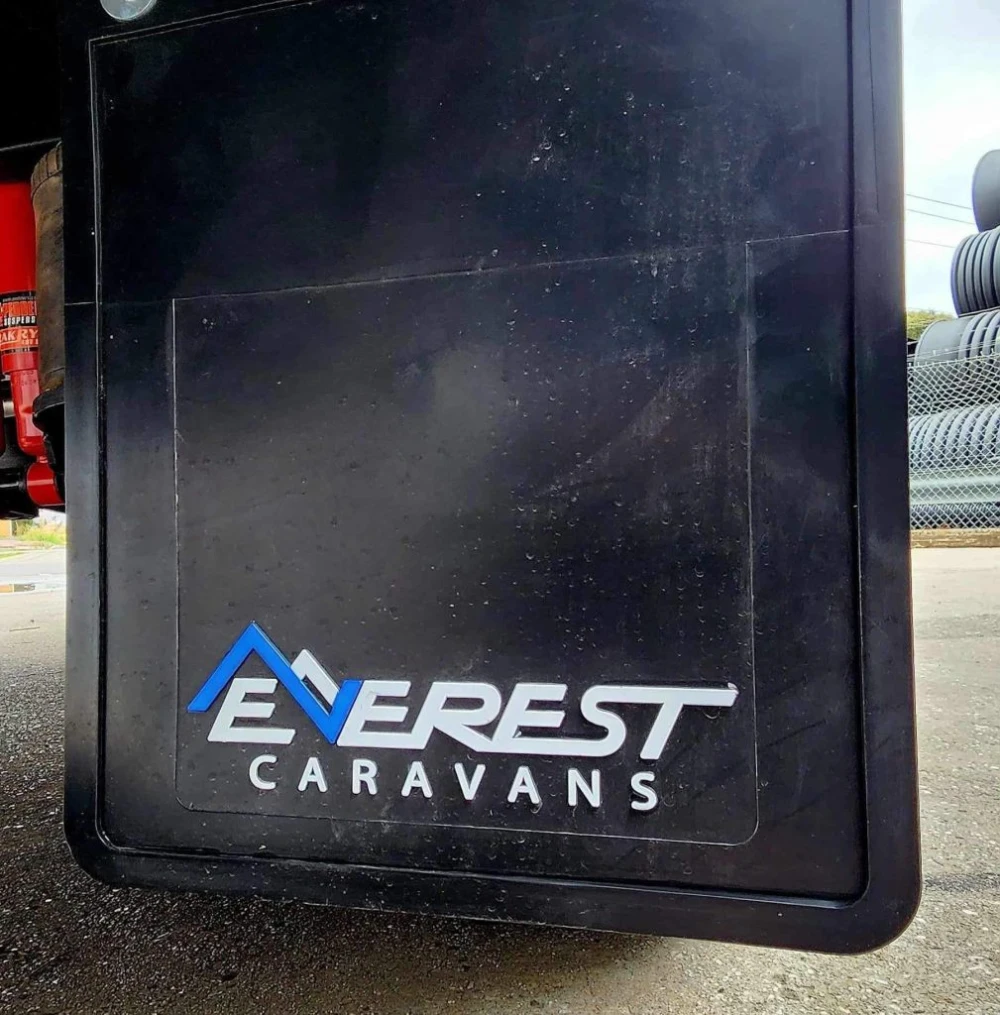

| Mudflaps | Rear (Black) w/ mudflaps Everest Logo |
| Grab Handles | 4 x 300mm Black (2x Front & 2x Back) |
Interior Build
8 features
| Hard Wearing Vinyl Floor | |
|---|---|
| Lightweight Plywood acrylic Doors | |
| Lightweight Plywood Laminate Benchtops | |

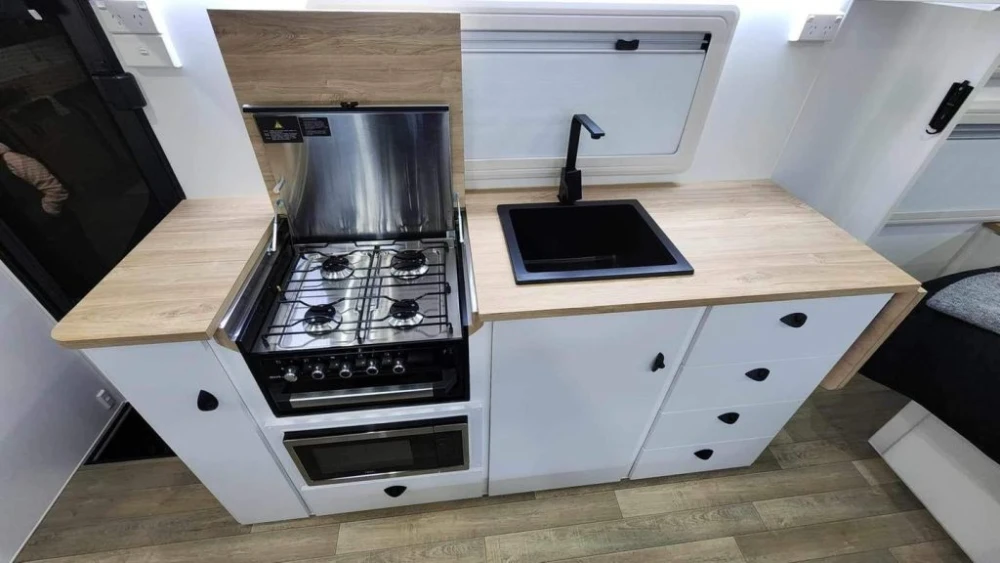

| Recessed Covered Cooktop | |
| Double Gas Struts To All Overhead Cupboard | |
| Laminate Splashbacks | |

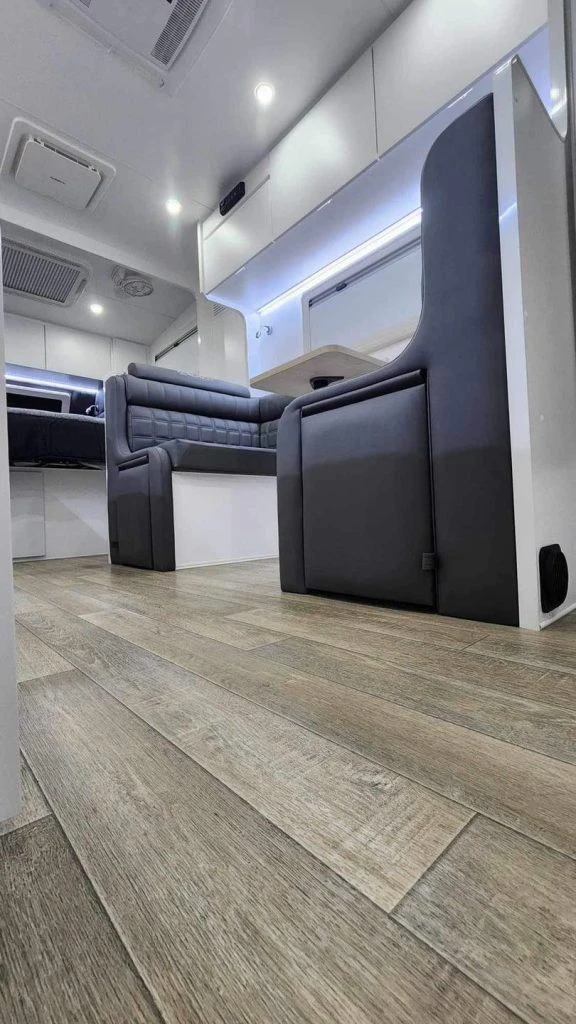

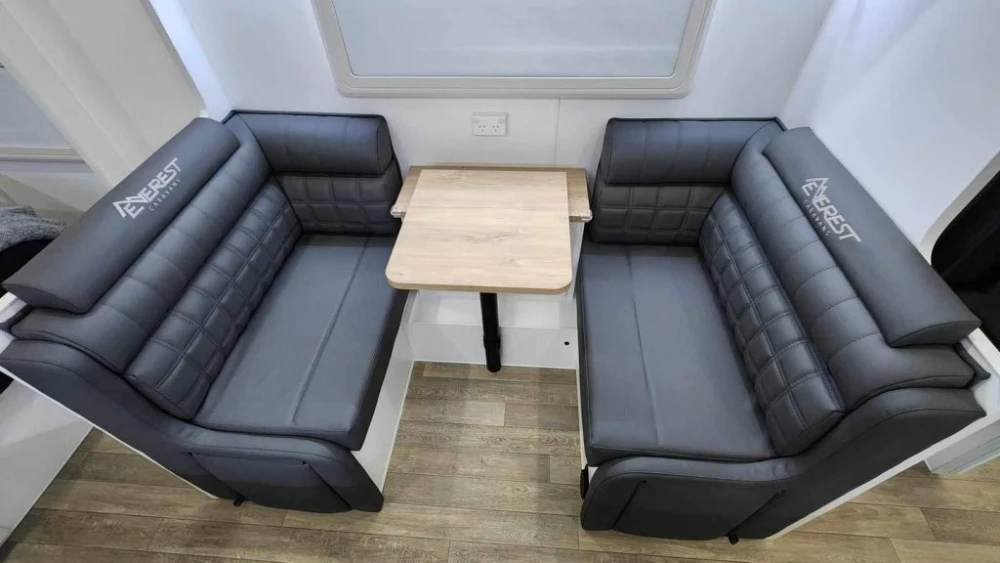

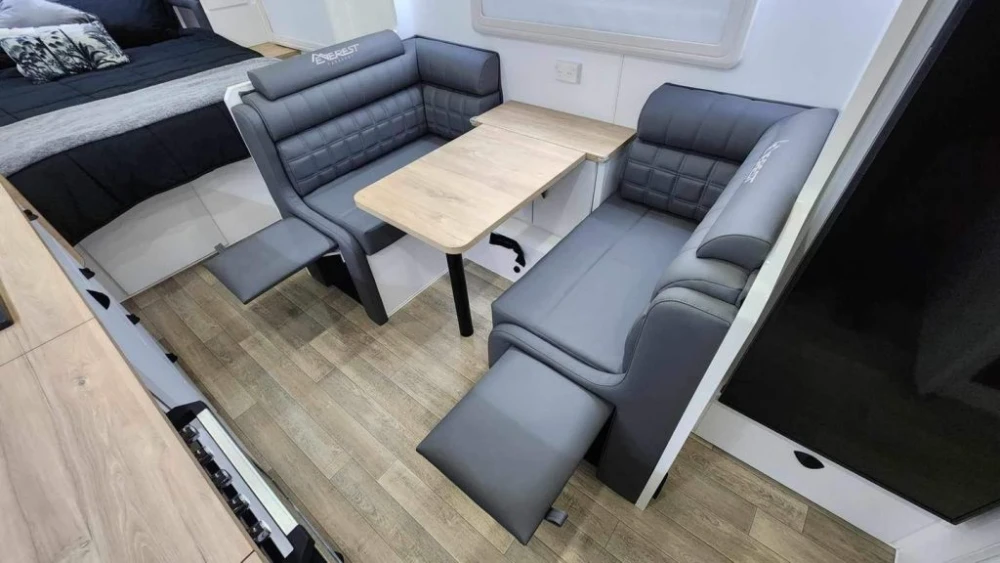

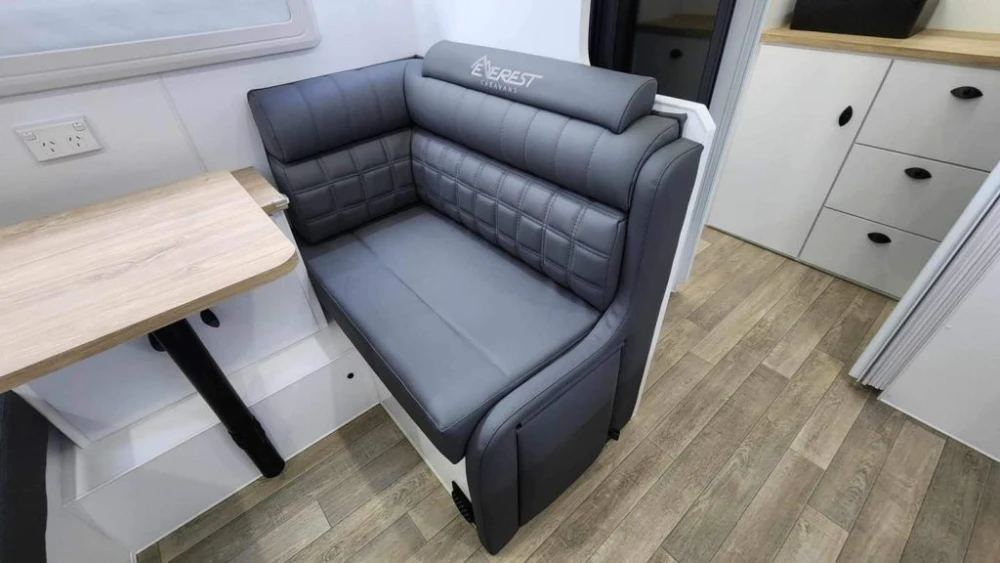

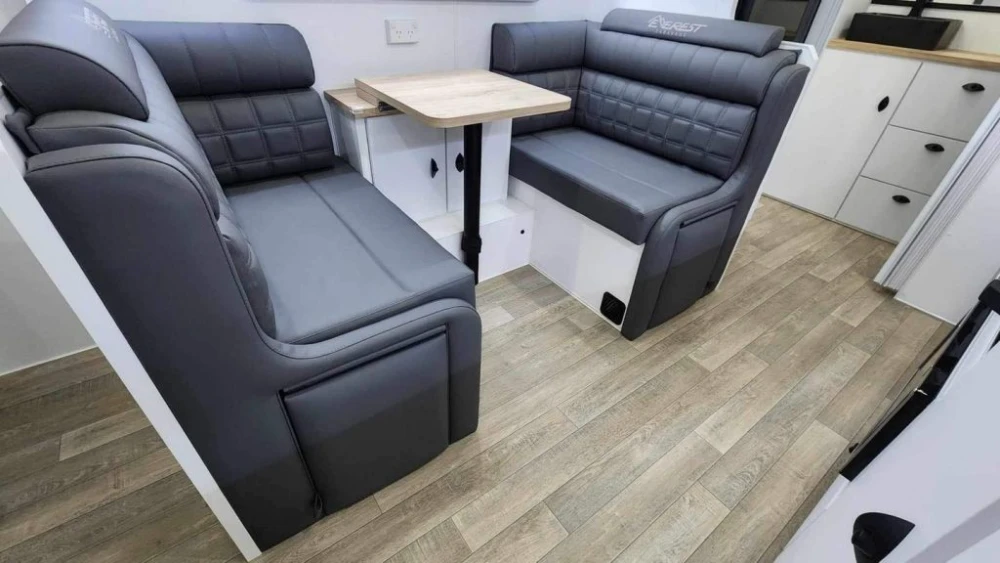

| café Dinette café dinete tri fold table or L shape | |

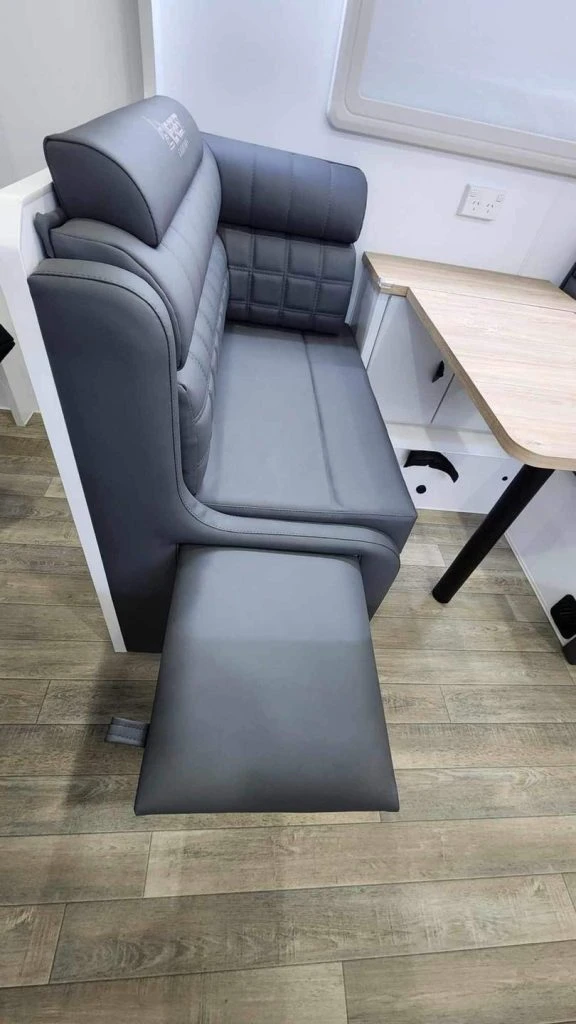

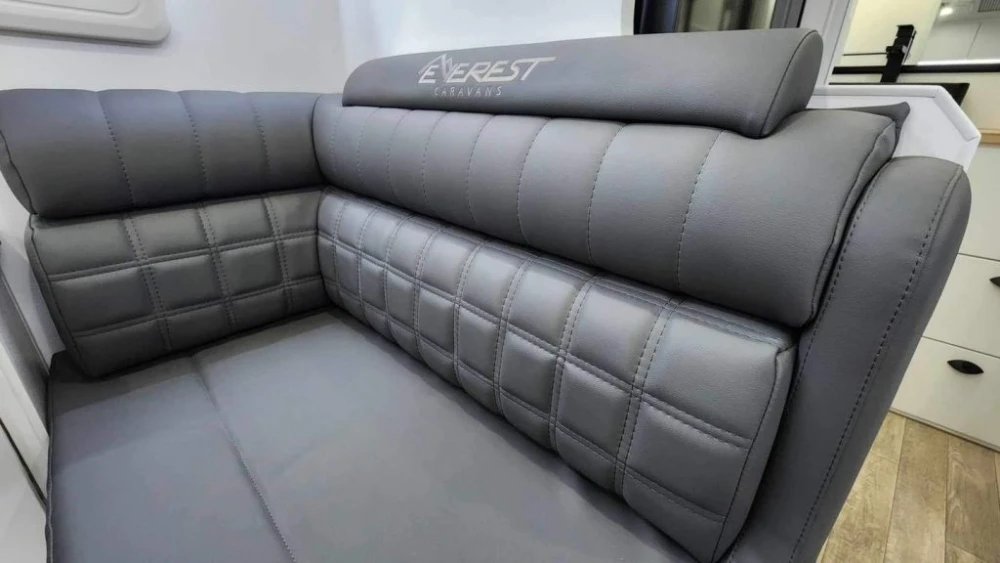

| • Upholstery Vinyl Leather with Exposed Stitching Upholstery |
Interior Appliances
11 appliances
| Air conditioner | Ibis 4 |
|---|---|

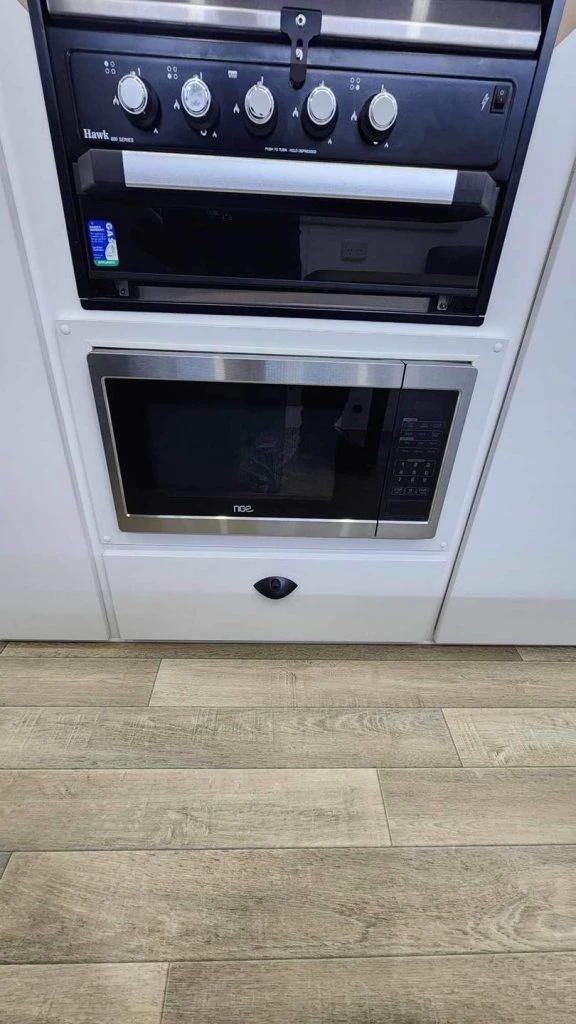

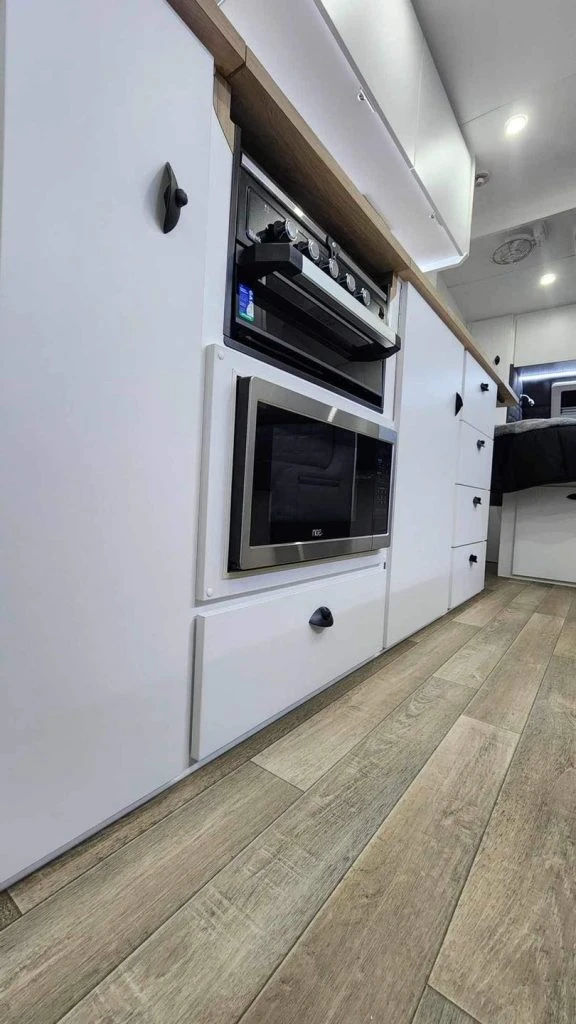

| Oven | 502 BHSP Swift Full Oven Black |
| Rangehood | Sphere Recessed |
| Hot Water System | GEHWB Swift 28Ltr Gas/Electric |
| Microwave | Sphere 25Ltr |
| TV | 24’ smart tv dvd combo |
| Stereo | Furoin Bluetooth |
| Washing Machine | 3.3k top loader |

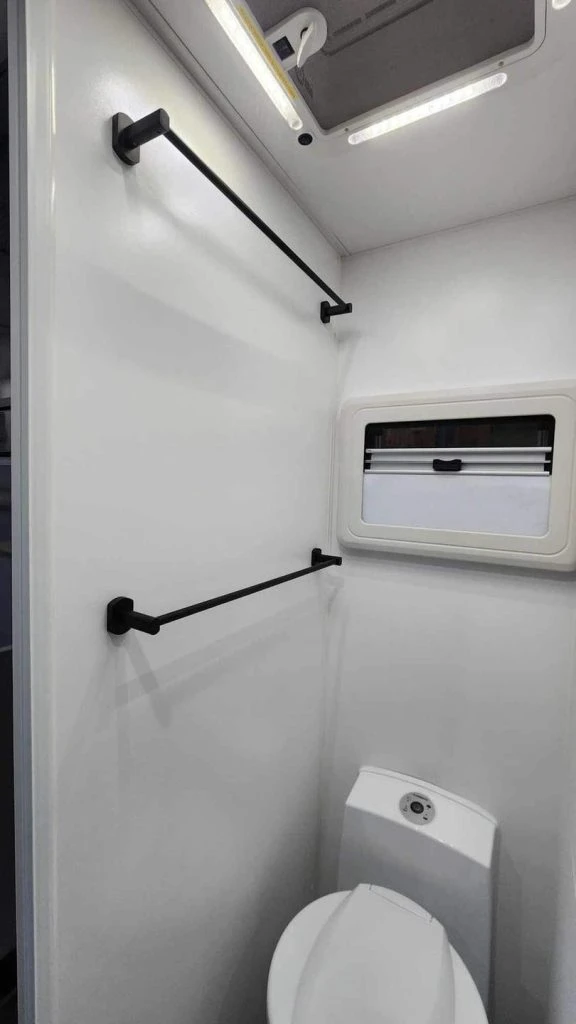

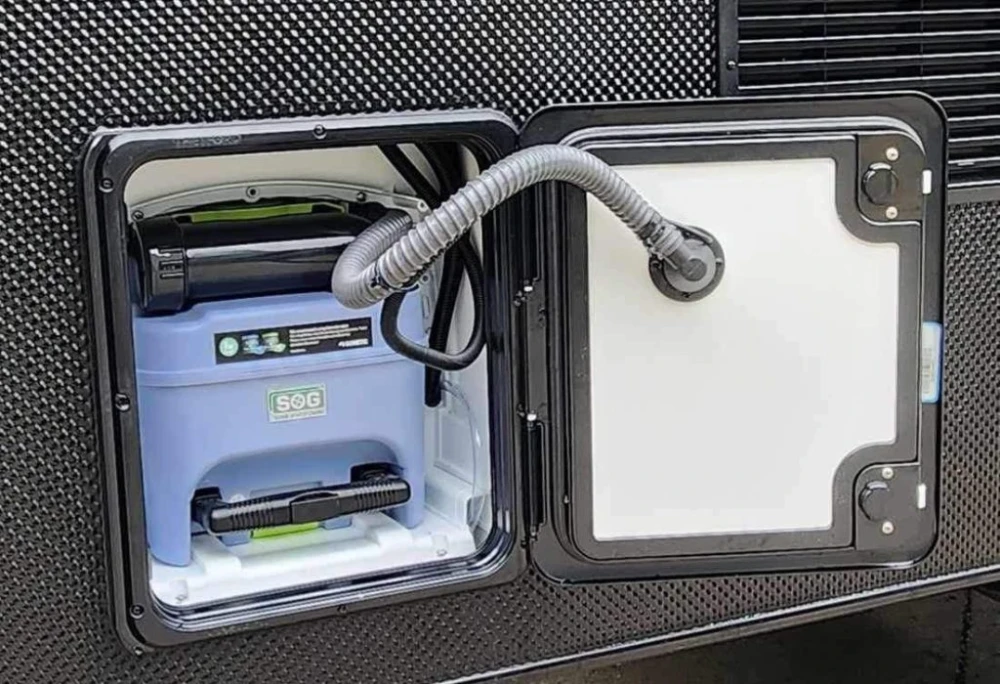

| Toilet | Saneo Ceramic Bowl |
| Roof Hatch | HTP Cabin pressure unit |

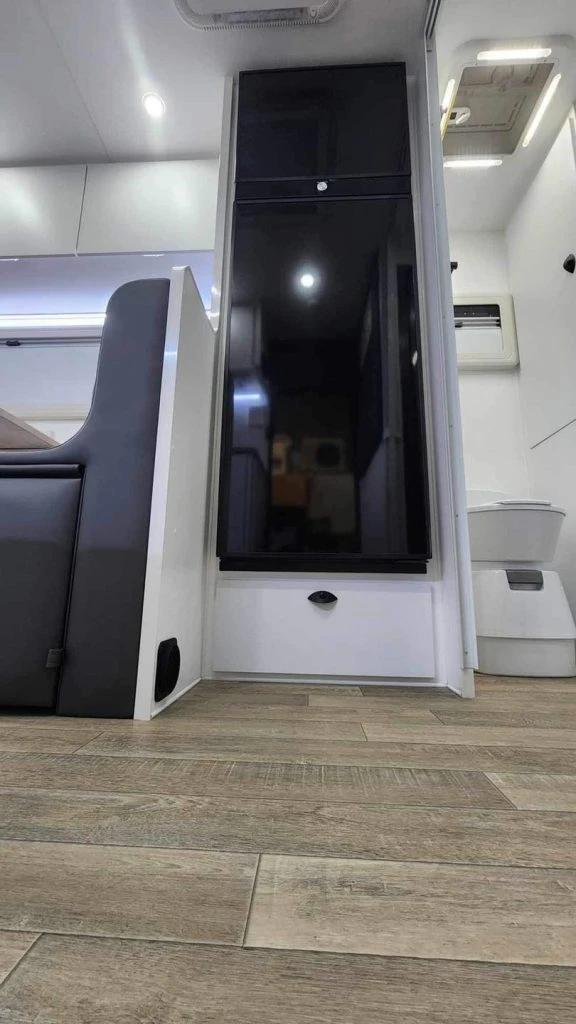

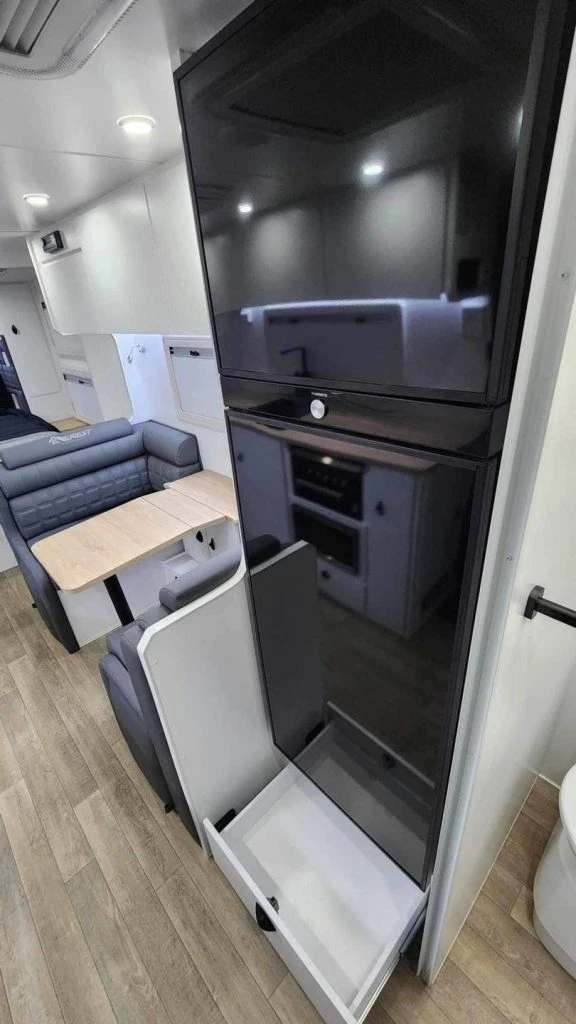

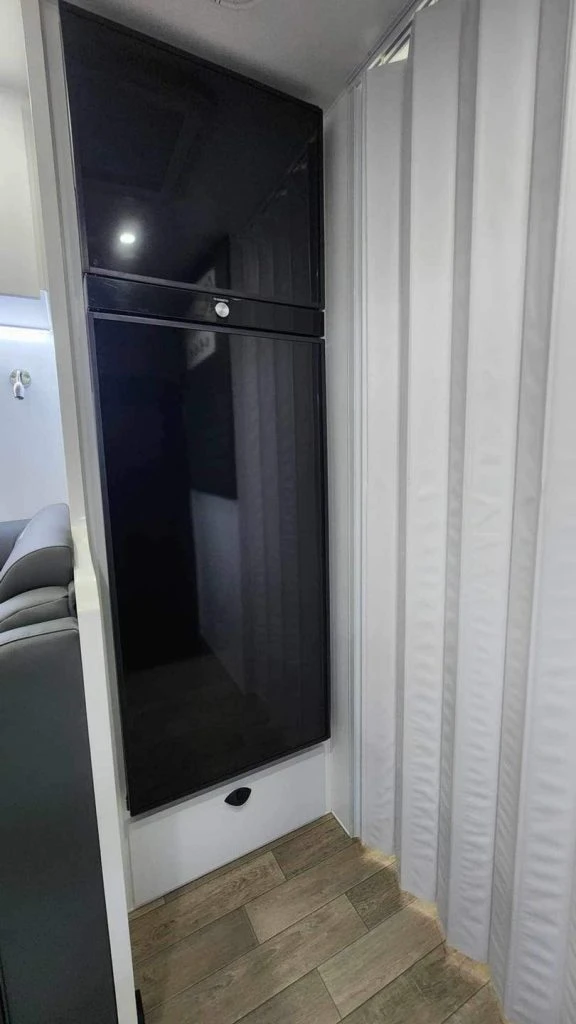

| Fridge/Freezer | 188L Dometic Compressor fridge |
Internal Furniture
2 features

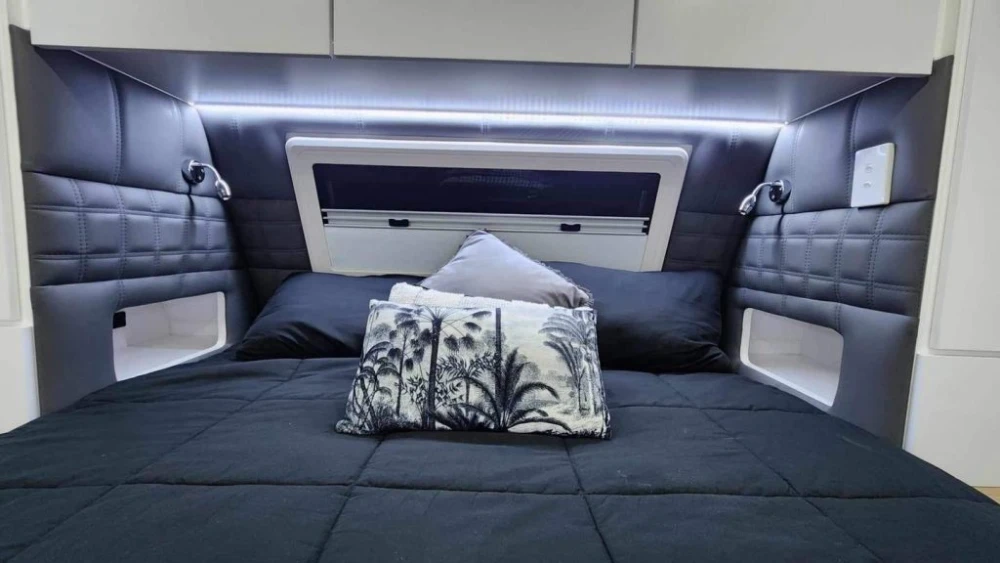

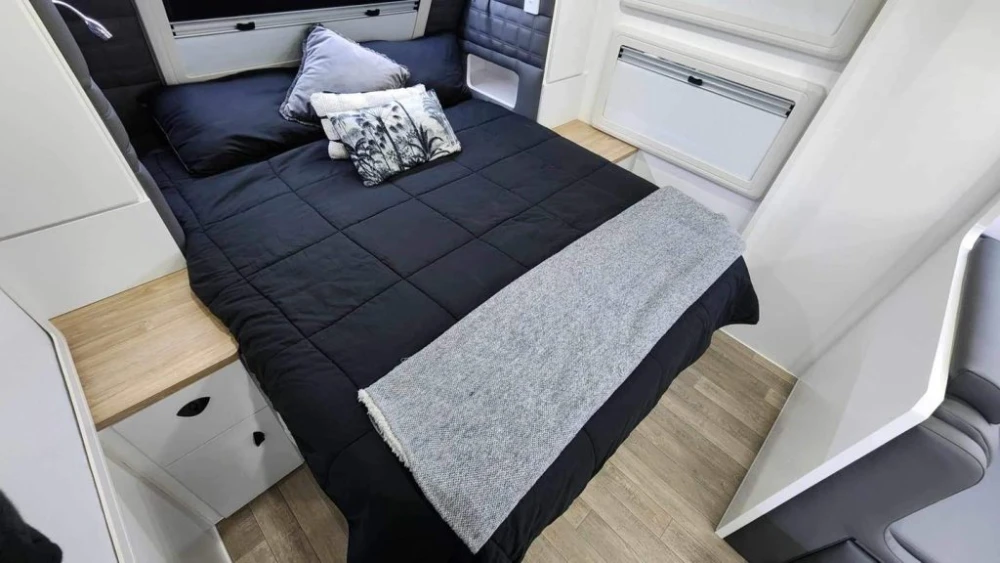

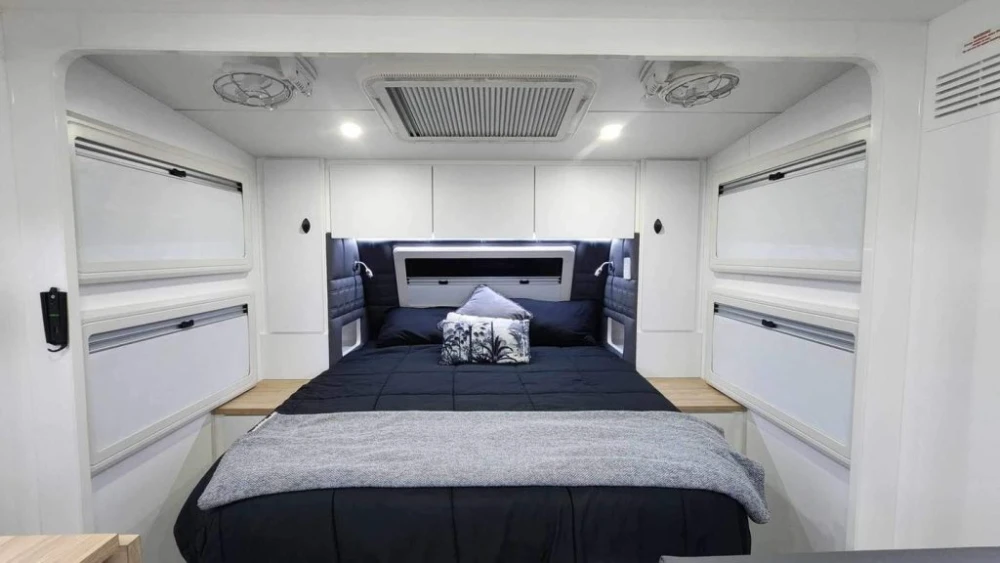

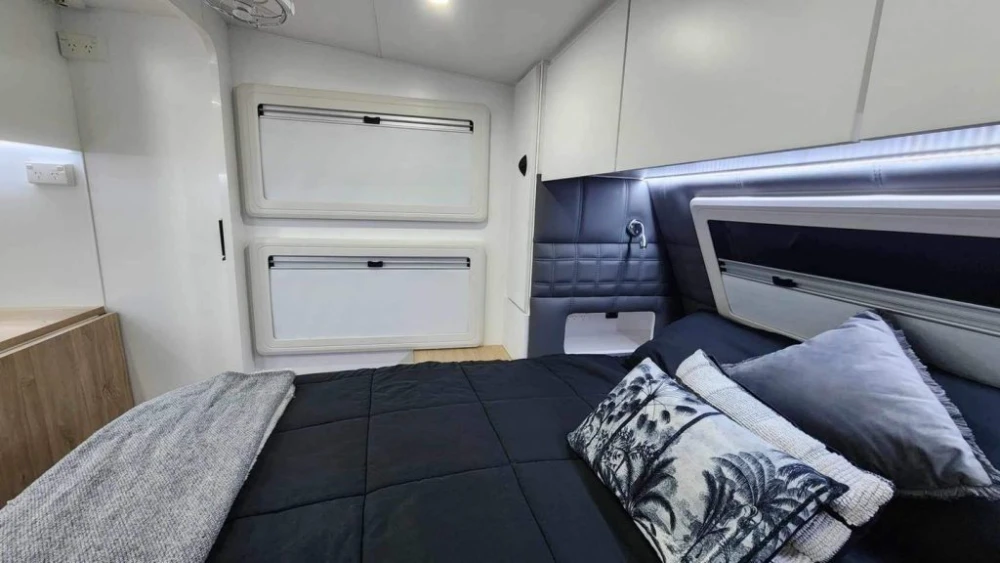

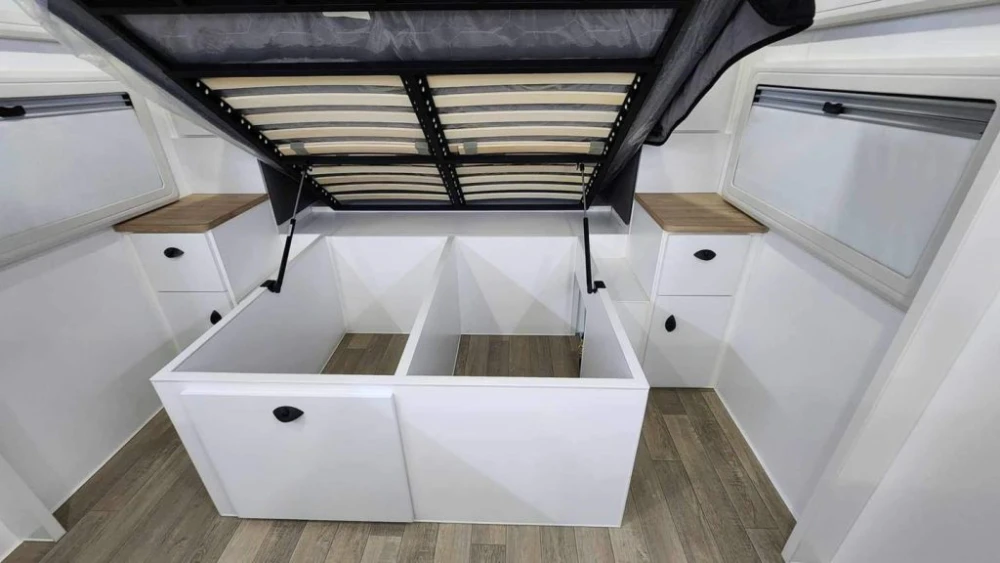

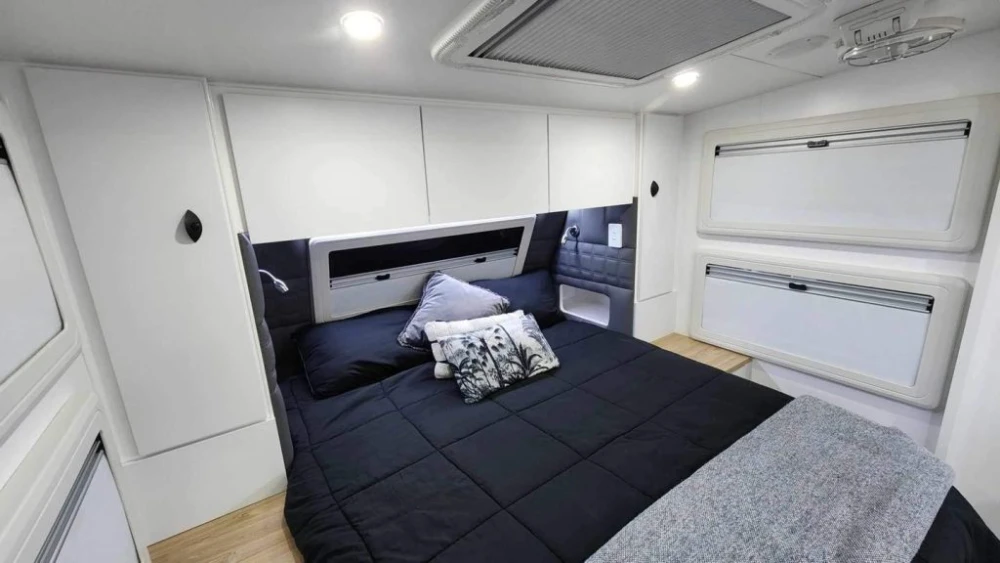

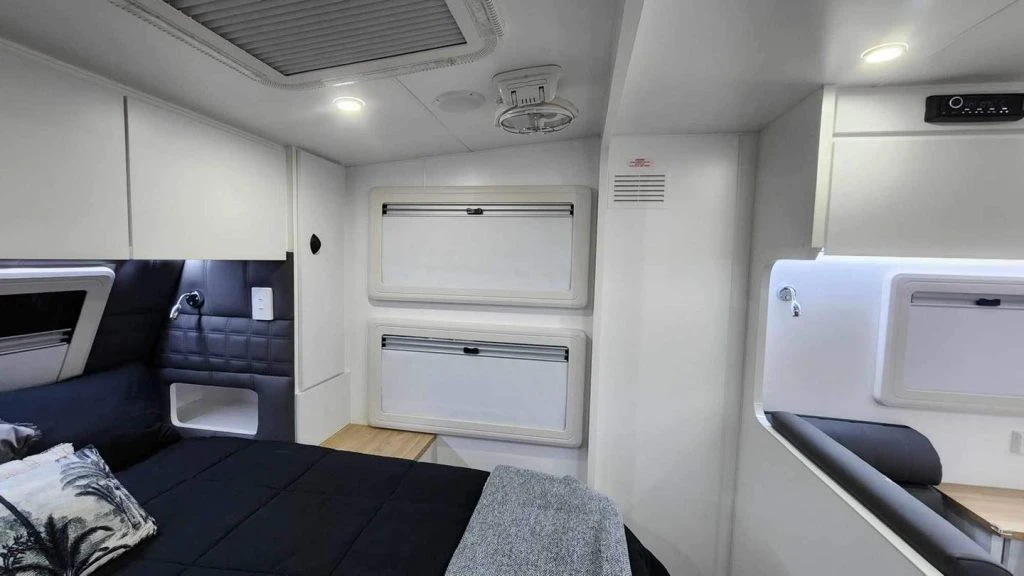

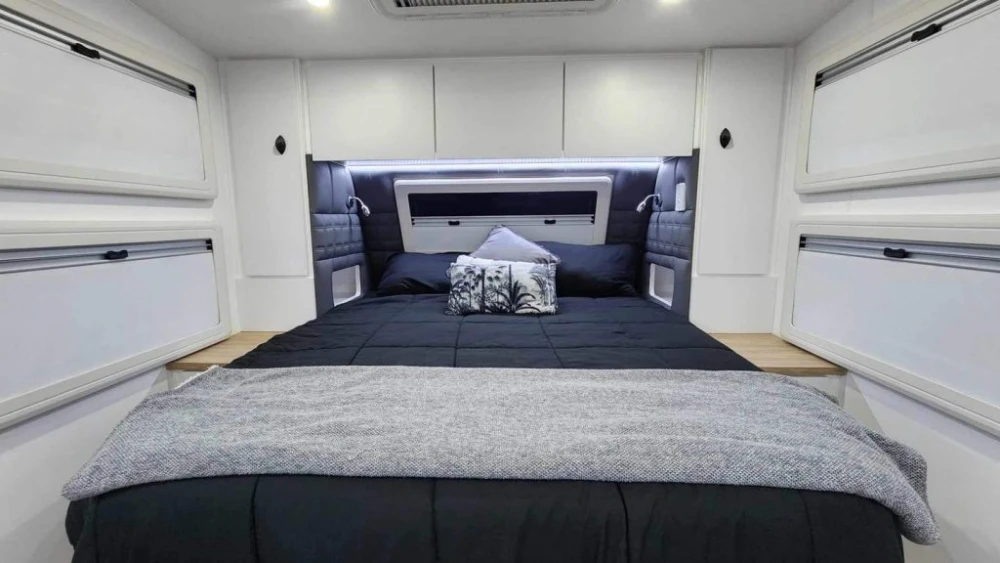

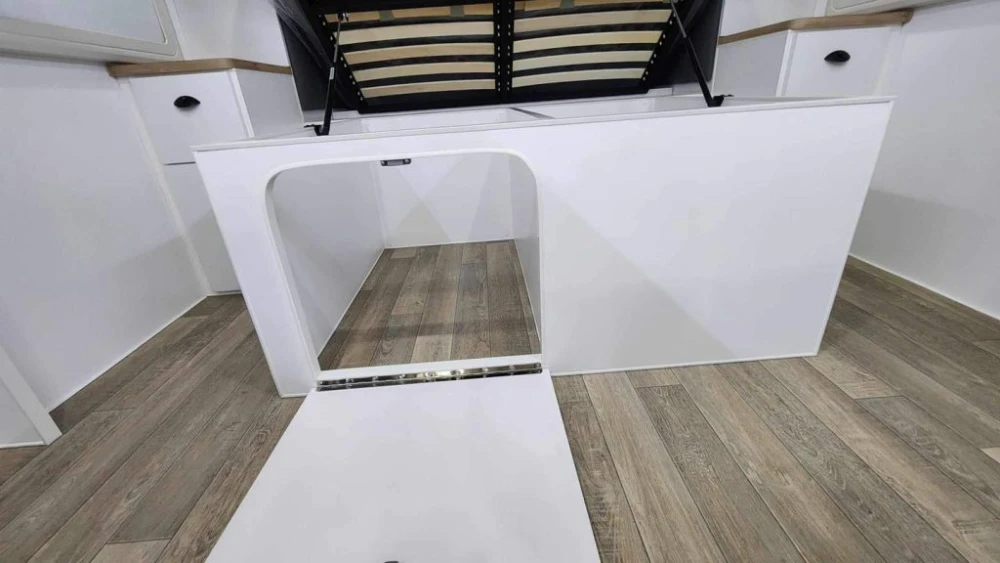

| Bed - Queen Island | with Lift-up Storage |
|---|---|
| Mattress - Innerspring Pillow-Top | Queen Size with Cut Corners |
Electrical
25 features
| Antenna | AntennaTek LPDA200 |
|---|---|

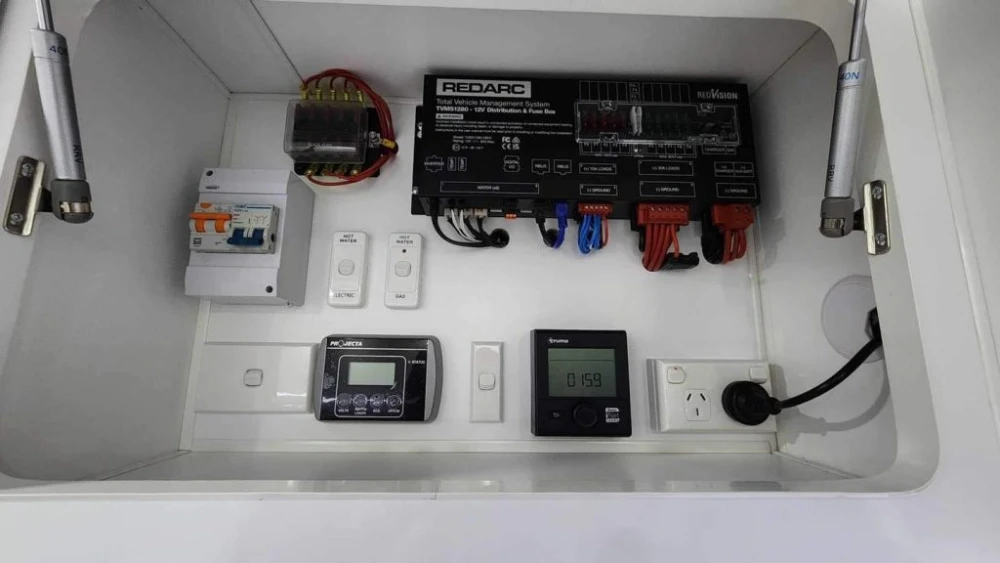

| Battery Management System | BMPRO 35HA Battery Management System (Lithium Ready) |
| BMPRO | Trek Digital Display Trek Digital Display " (All-In-One Water, Battery, Pump and Mains Controller)" |
| Batteries | 2 x 100amp Lithium Lab Batteries |
| Solar Panels | 3 X 210-Watt Solar Panels |

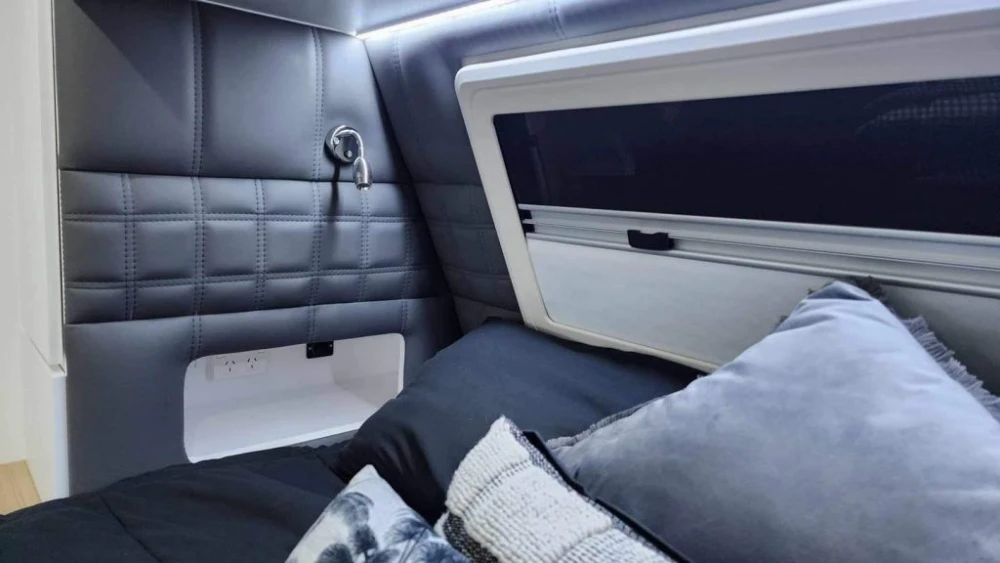

| Reading Lamps w USB | Dual Colour RL Blue/White USB (3 x Bunks, 2 x Bedhead Sides, 2 x Near Lounge) |
| LED Strip Light (Internal) | White Strip Light in Aluminium Track Under OHC (Master, Lounge & Kitchen) |
| LED Strip Light (Internal) | Blue Strip Light (Step) |
| Euro Touch Light | Blue/White Dual Tone (Inside Niche) |
| Double Power Points W/ USB (Internal) | 2 x CIP2DUSB Double Power Point w/ USB White (Bedside Niches) |
| Anderson Plug | 50A Grey Anderson Plug |
| Pin Plug | 12 Pin (Black) |
| Entry Handle Light | Blue Lit Bubble (Black) |
| Waterproof Lights | 2 x Waterproof LED Shower Lamp White with Switch (1 x Shower x 1 x Tunnel Boot) |

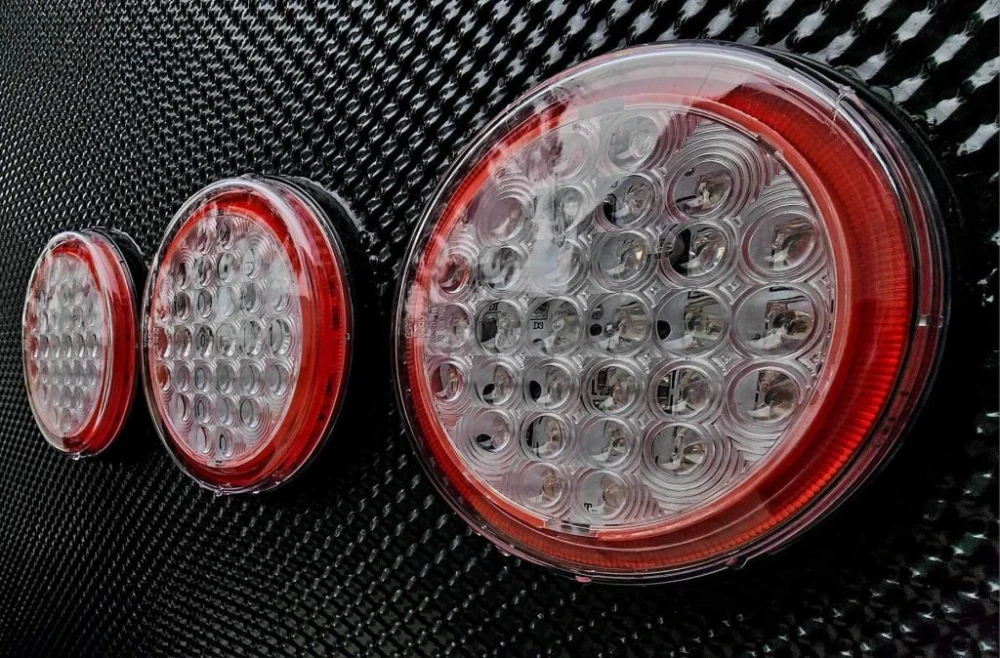

| Tail Lights | 6 x Dynamic Combination 130mm |
| License Plate Light | LED License Plate Lamp (Black) |
| Work Lights | 2x Stedi Work lights on front and rear |
| LED External Lights | 4 x Black Aluminium (2 x Below Awning, 1 x Off Side, 1 x Over Tunnel Boot) |
| Downlights | 75mm Round (Silver) |
| Touch Light | Interior Strip Light (Below OHC in Ensuite & Sink) |
| TV Points Standard | 2 x Internal, 1 x External |
| TV Hatch (External) | Standard Points |
| Hatch Fan | 2 x 12vlt Shower/Toilet |
| Speakers (External) | 2 x Black Internal 6" Outdoor Marine Speaker |
| Speakers (Internal) | 2 x White Internal 5" Ceiling Speaker |
Plumbing
196 features
| Gas Bayonet | 1 x Front Gas Bayonet awning side |
|---|---|
| GAS BOTTLES | 2 x 9Kg Gas Bottles |
| Water Tank Probes | 3 x 7.5m Dippers |
| Water Tank Gauge | Trek Digital Display |
| Water Tanks | 2 x 110L |
| Grey Water Tank | 1 x 95Ltr |
| Pump | 1 x Shurflo |

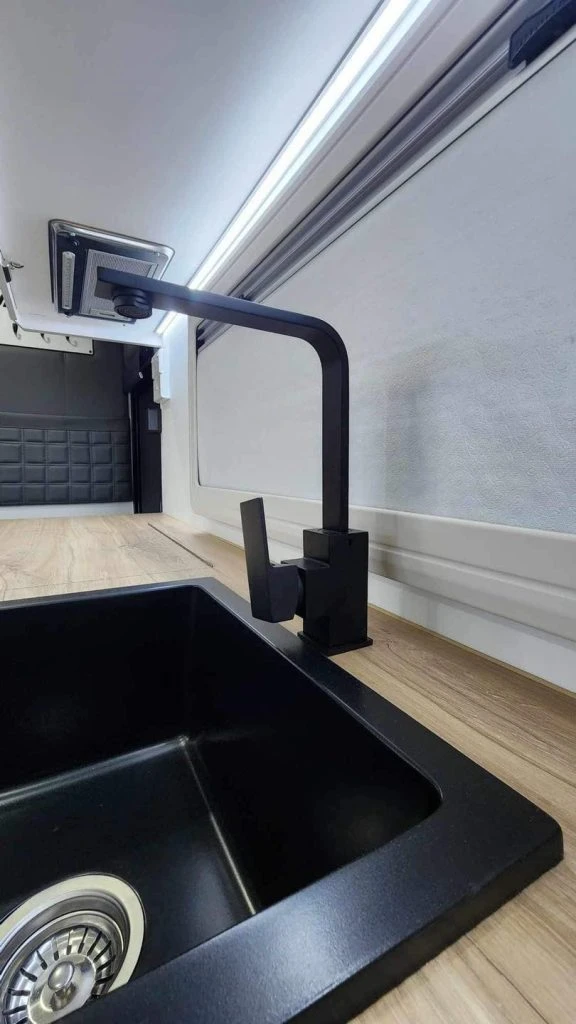

| Kitchen Tap | 340mm Black Kitchen/Bathroom Tap |
| Bathroom Tap | Basin Mixer Matt Black |

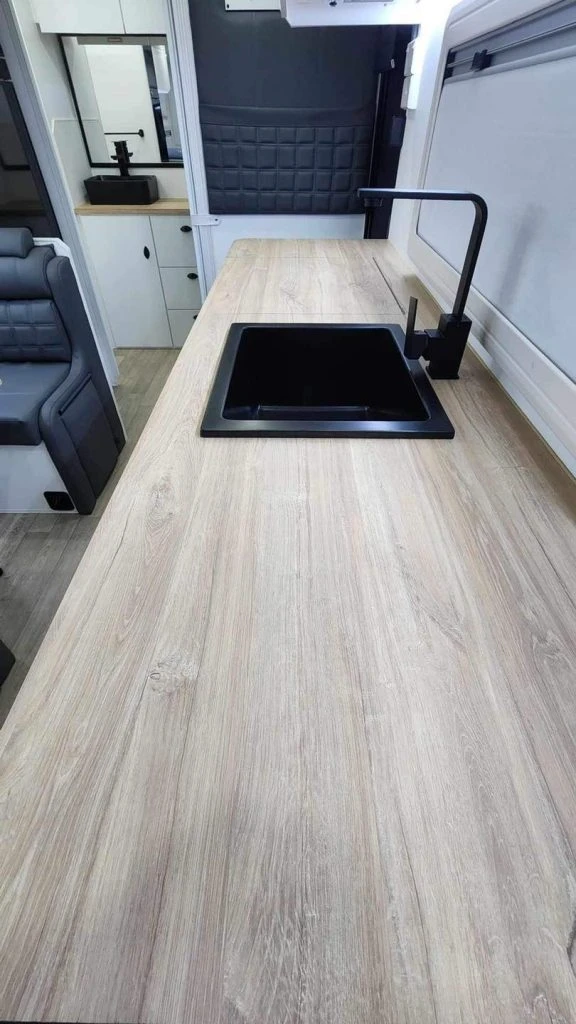

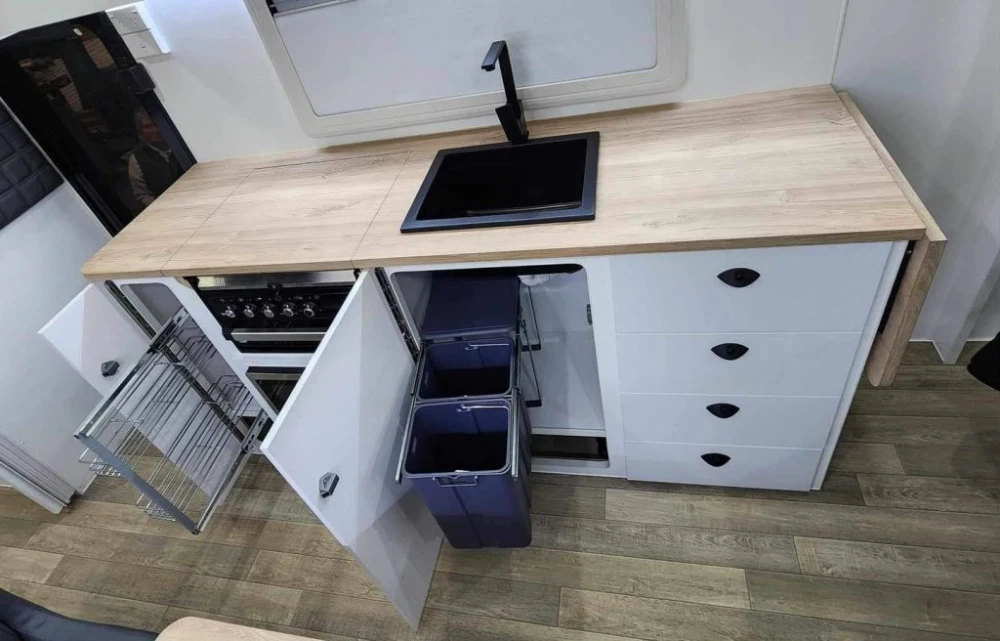

| Sink (Kitchen) | BLACK GRANITE Sink with drainer or bowl. |

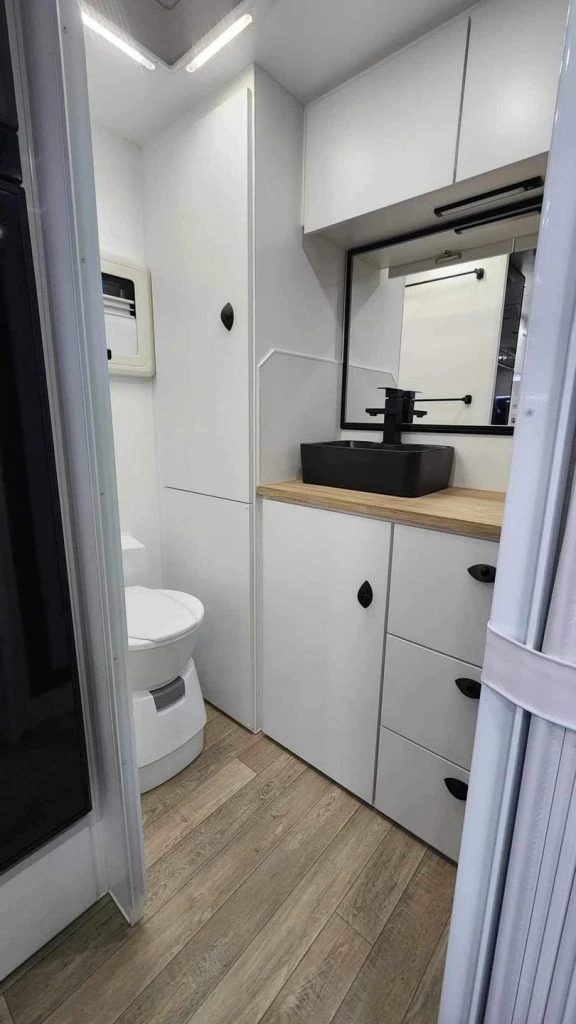

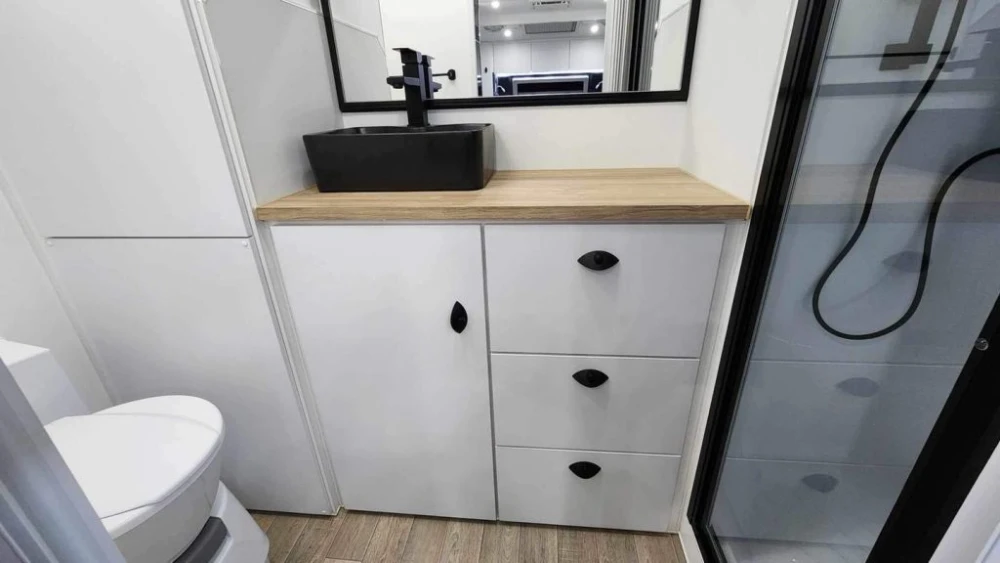

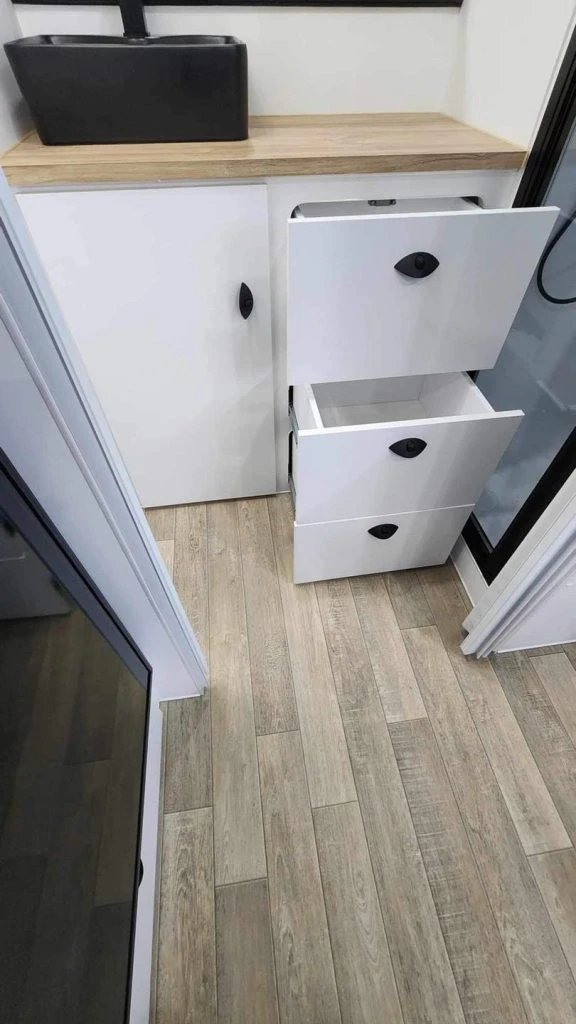

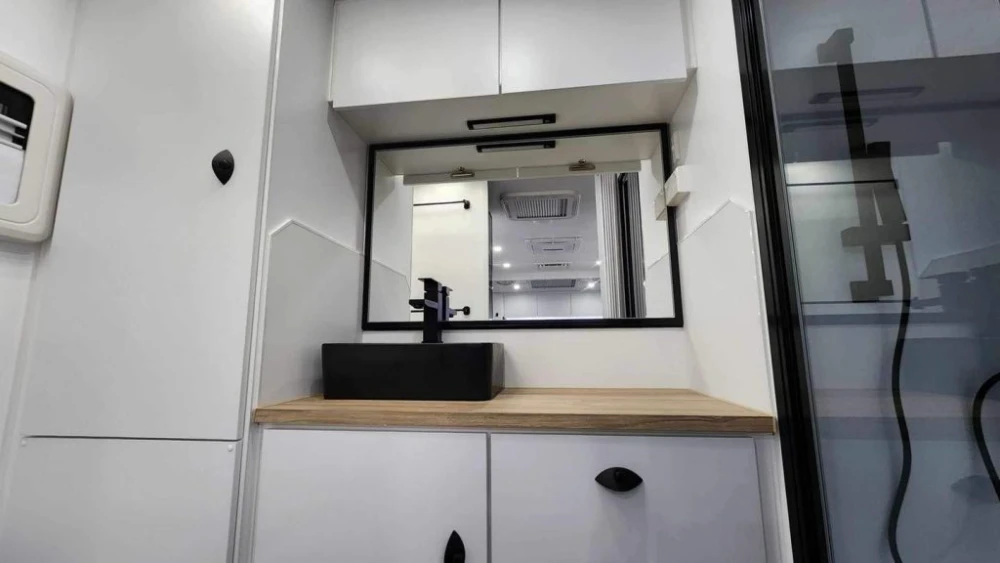

| Ceramic Sink (Ensuite) | Above Counter Basin BLACK OR WHITE |
| Gas Bayonet | Front Adjacent To Front Tunnel Boot |
| External Shower | 1x Hot/Cold Water Marked Black |

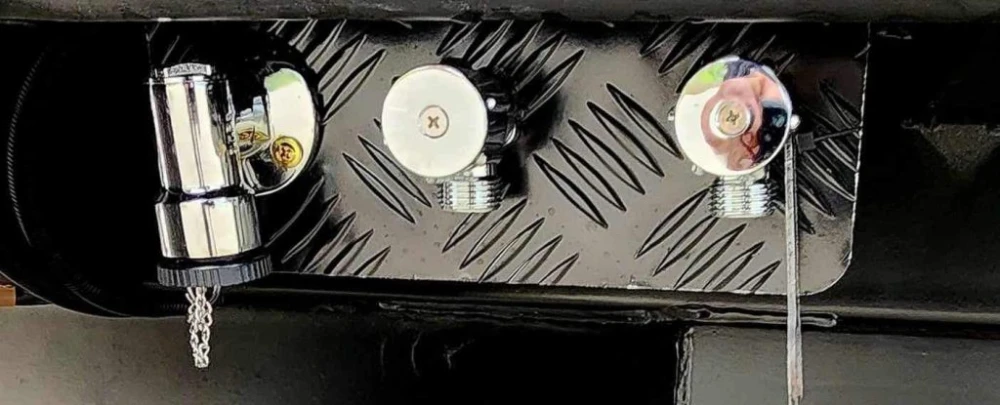

| Tap on Chassis | On A-Frame with Checker plate protection |

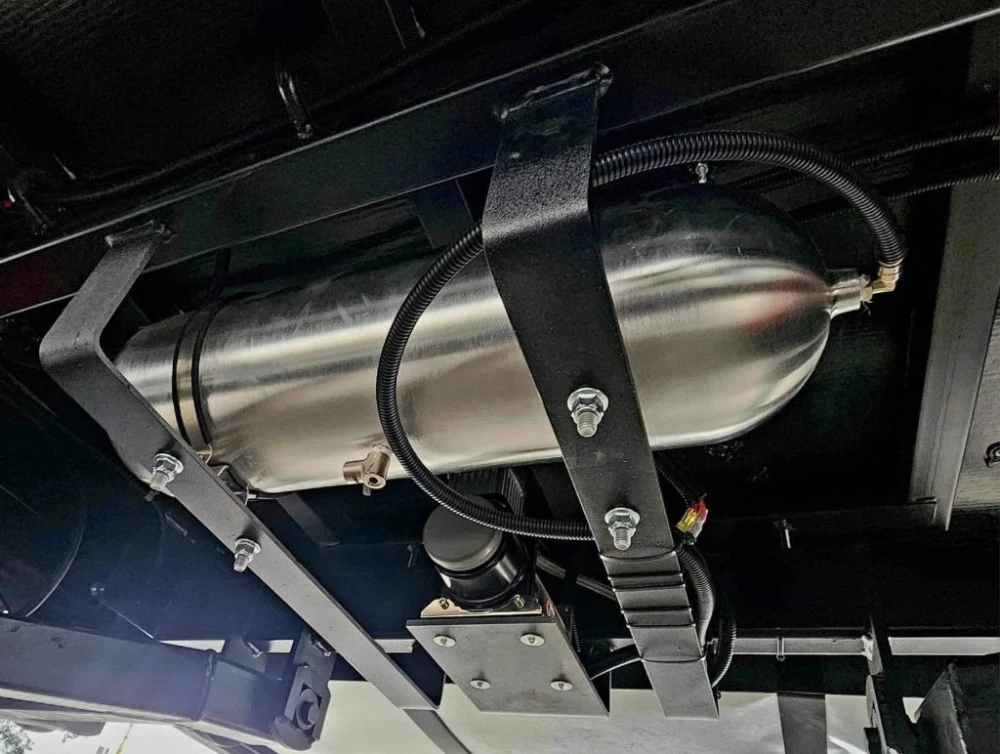

| 28L Stainless Steel Swift Gas and Electric Hot Water System | |

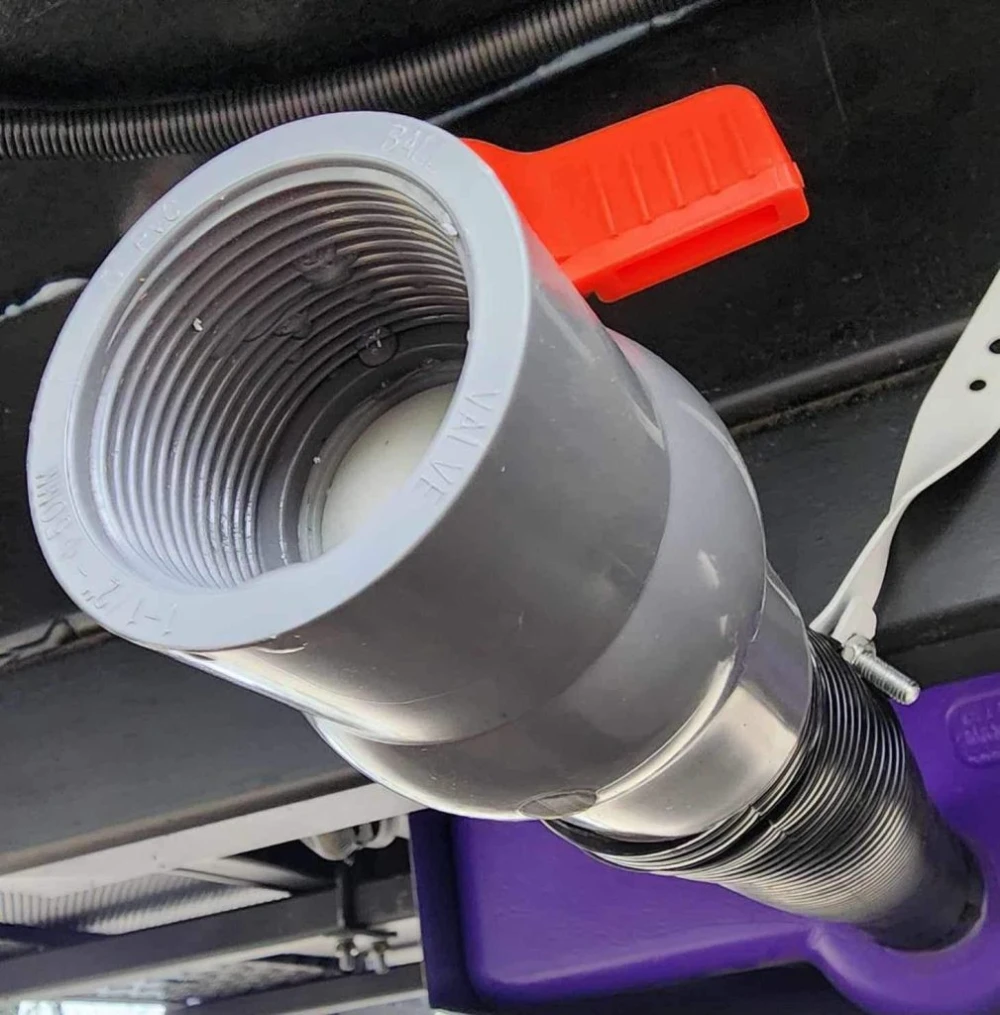

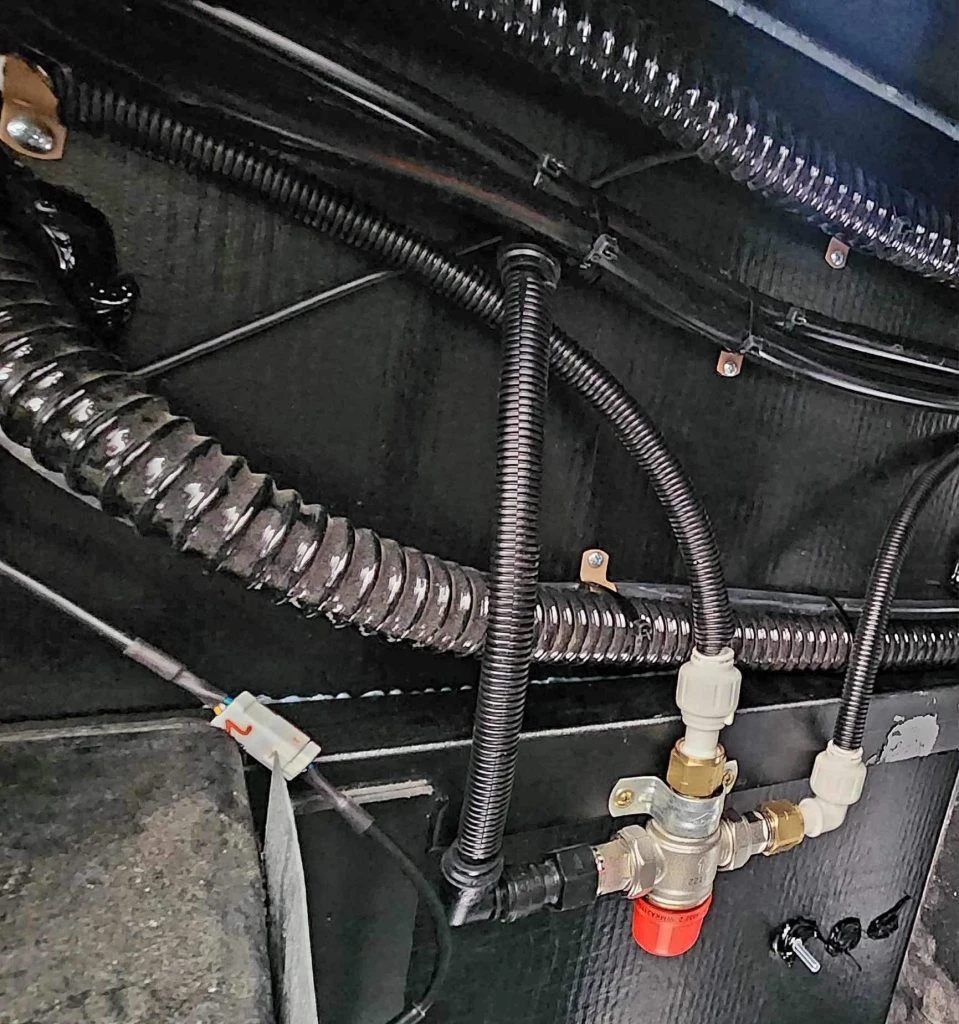

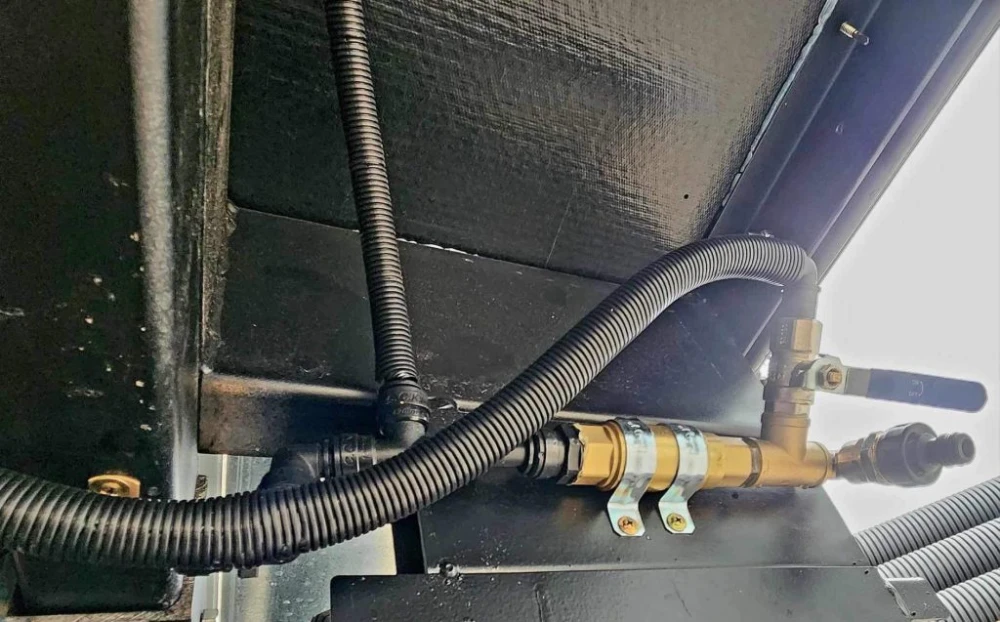

| Plumping underbody Protection - Plumbing and Pipe Protection On Exposed Underneath PVC Pipework | |

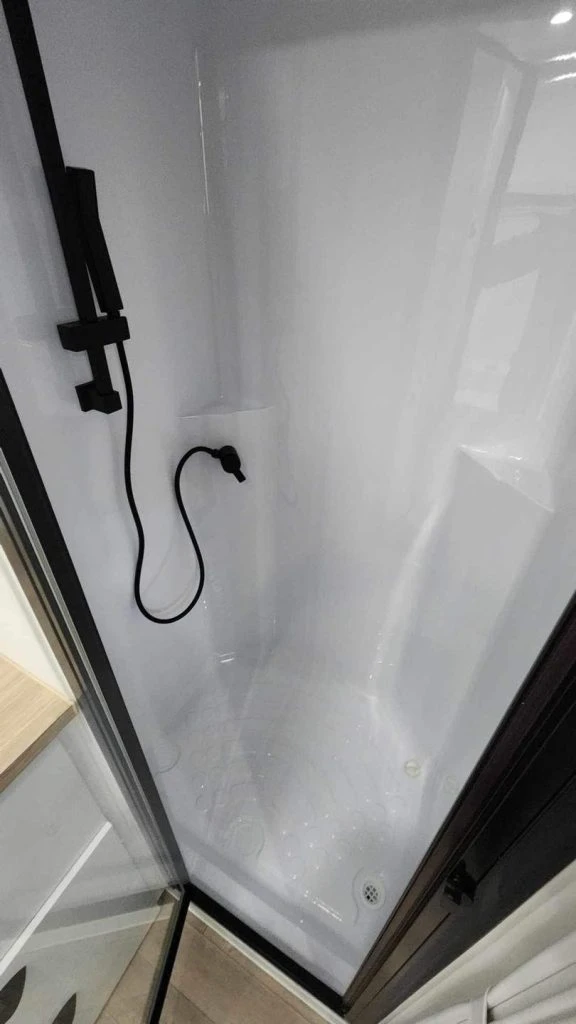

| Large One-Piece Fibreglass Shower with fibreglass roof with Extractor Fan |

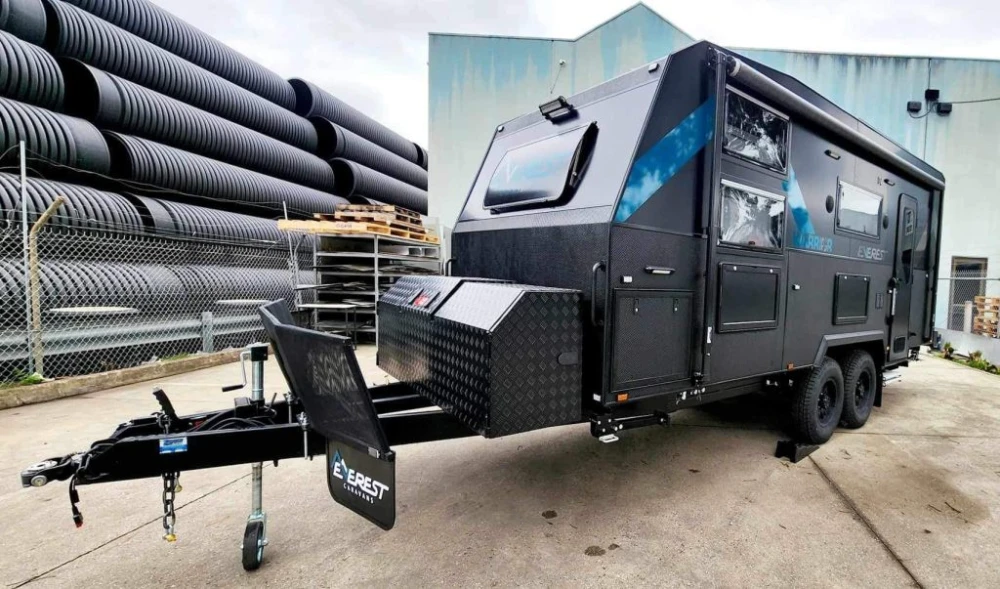

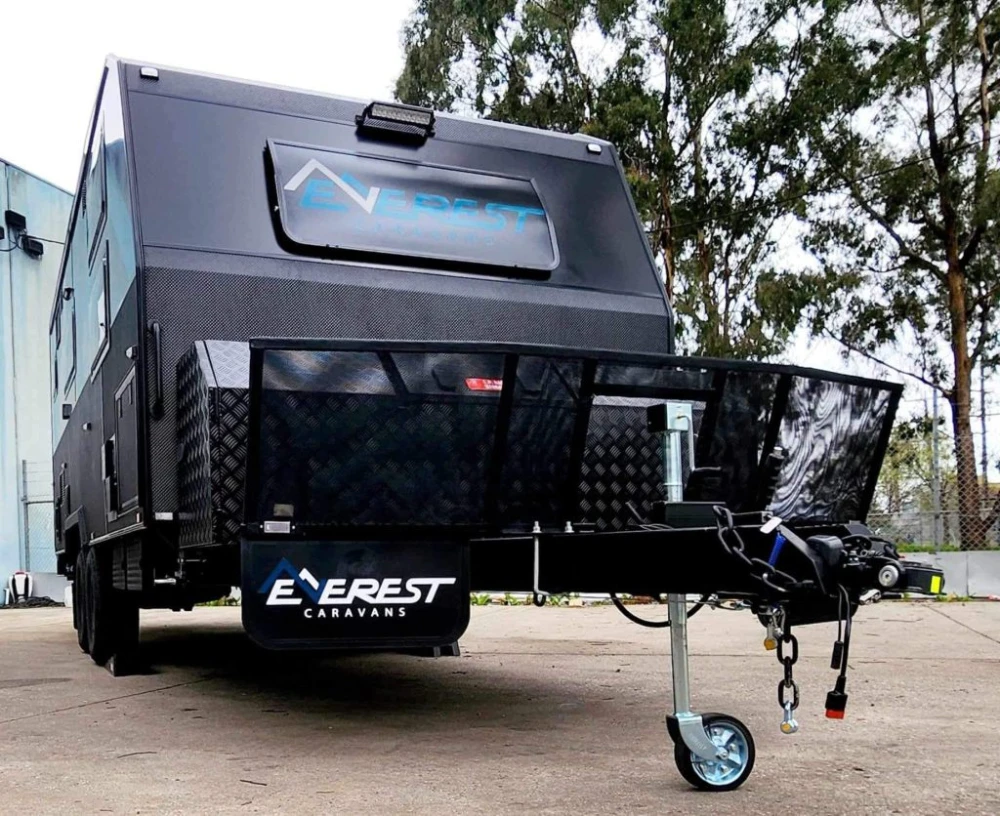

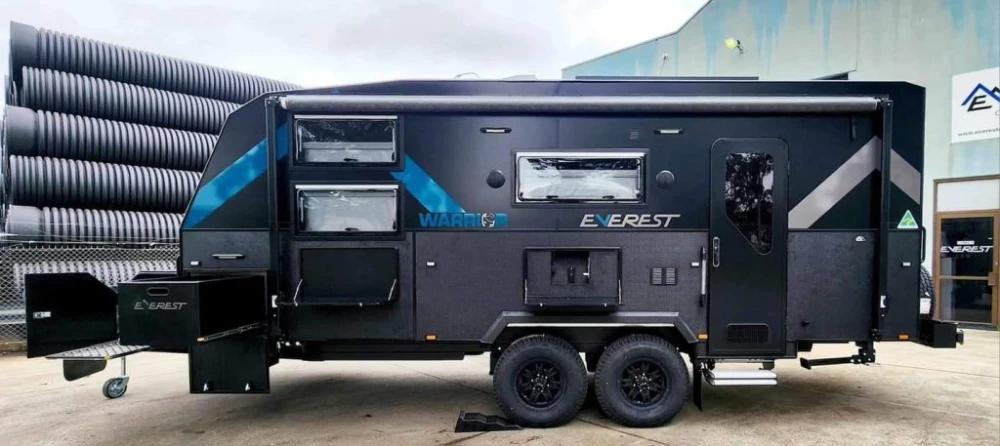

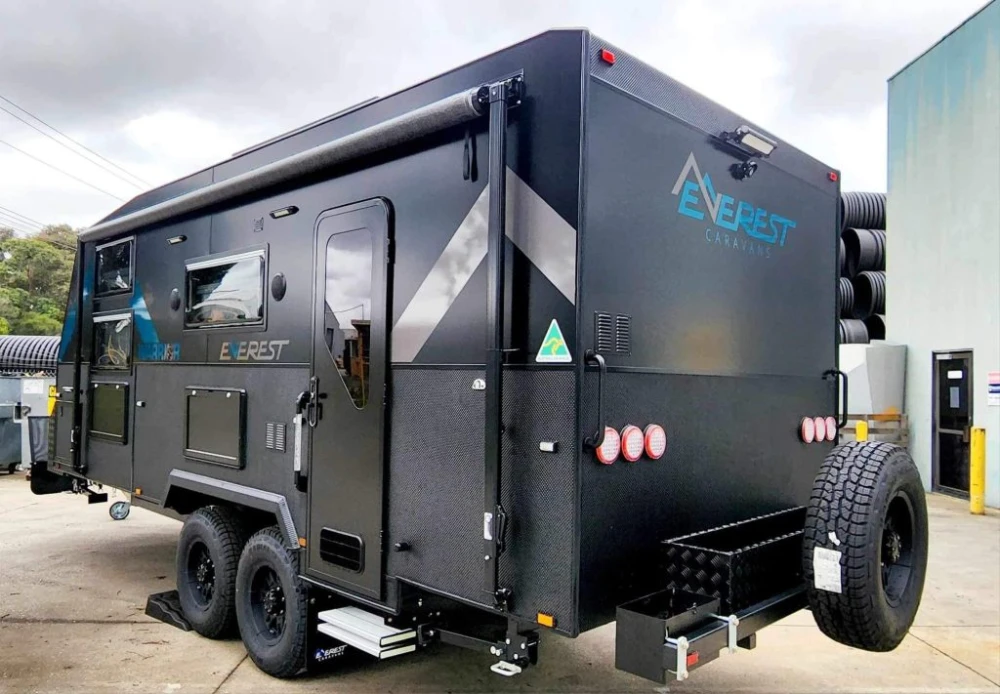

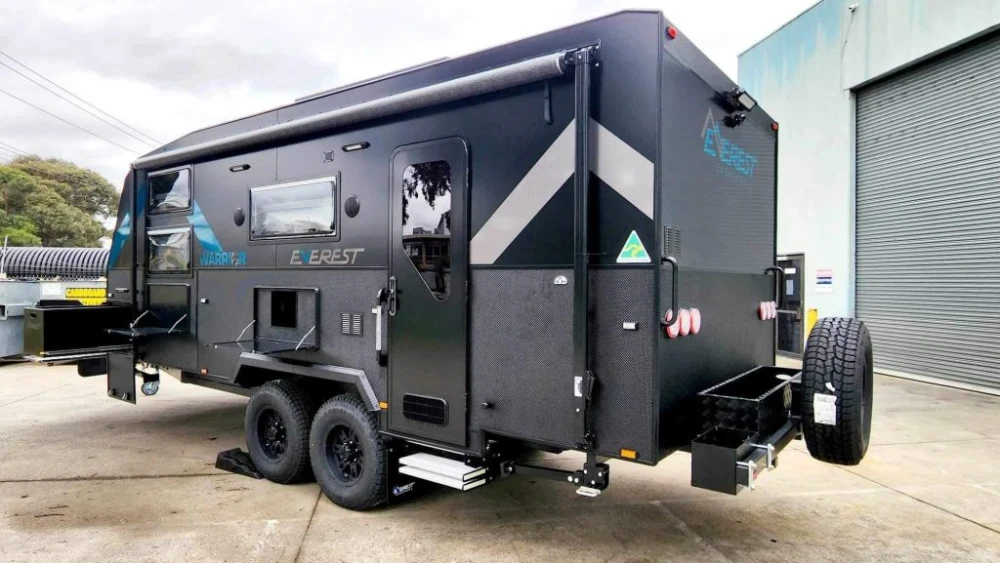

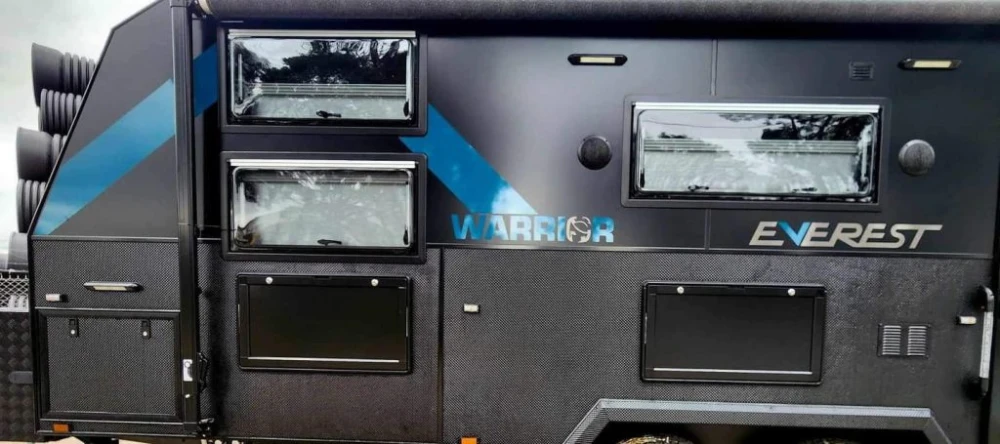

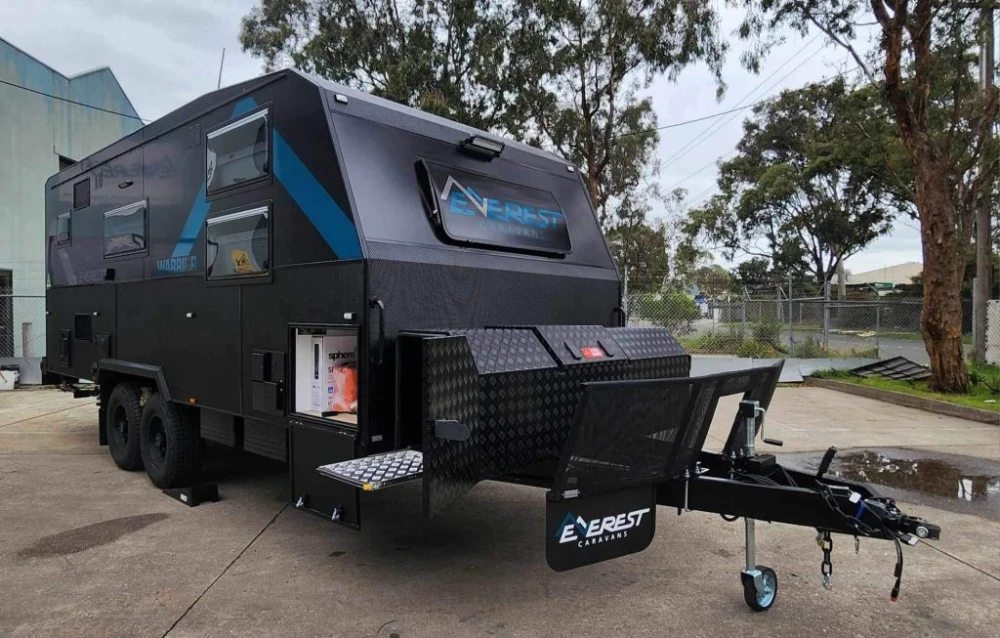

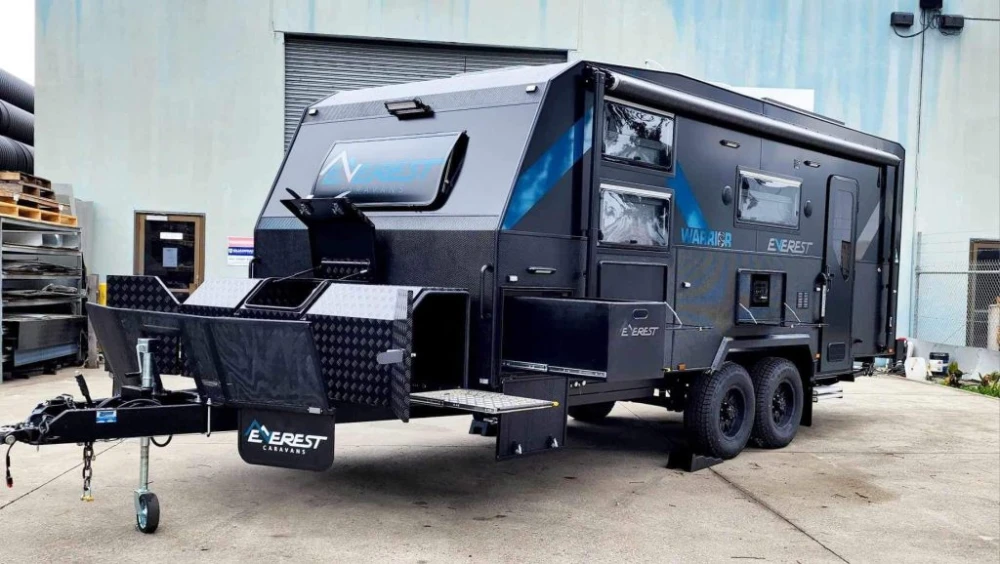

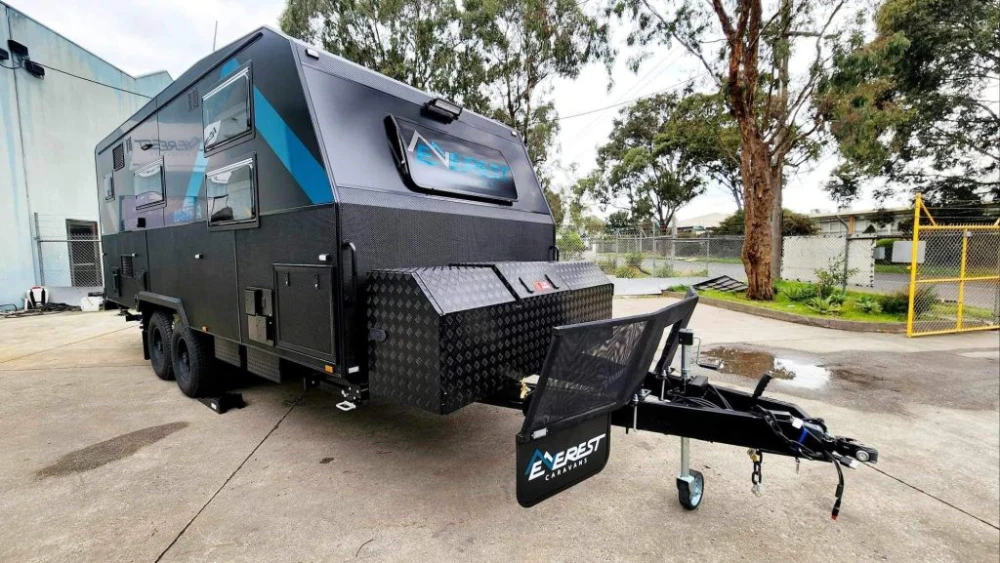

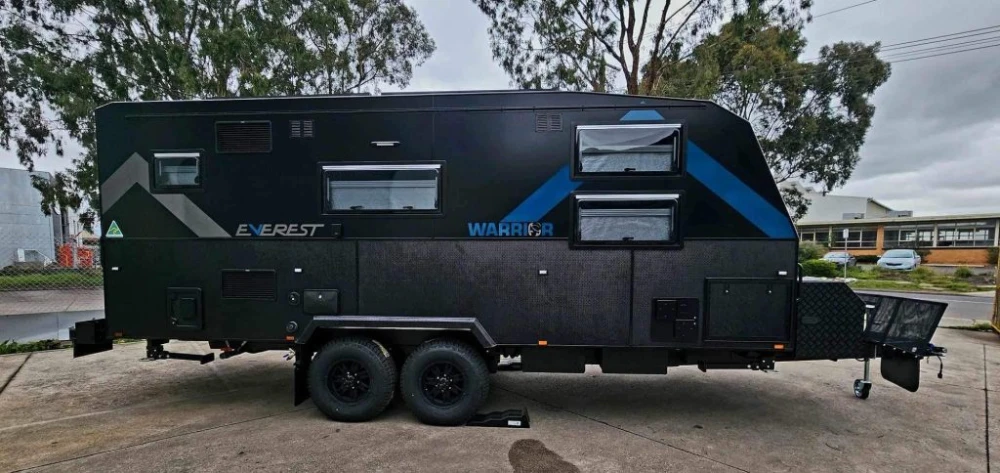

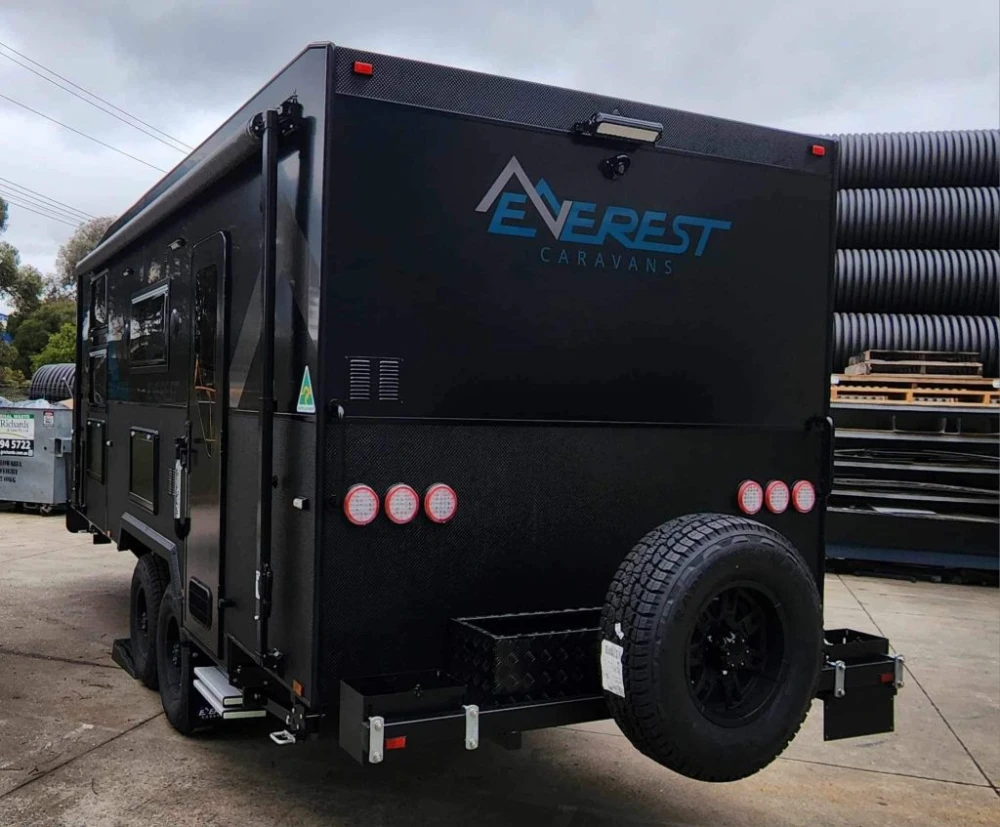

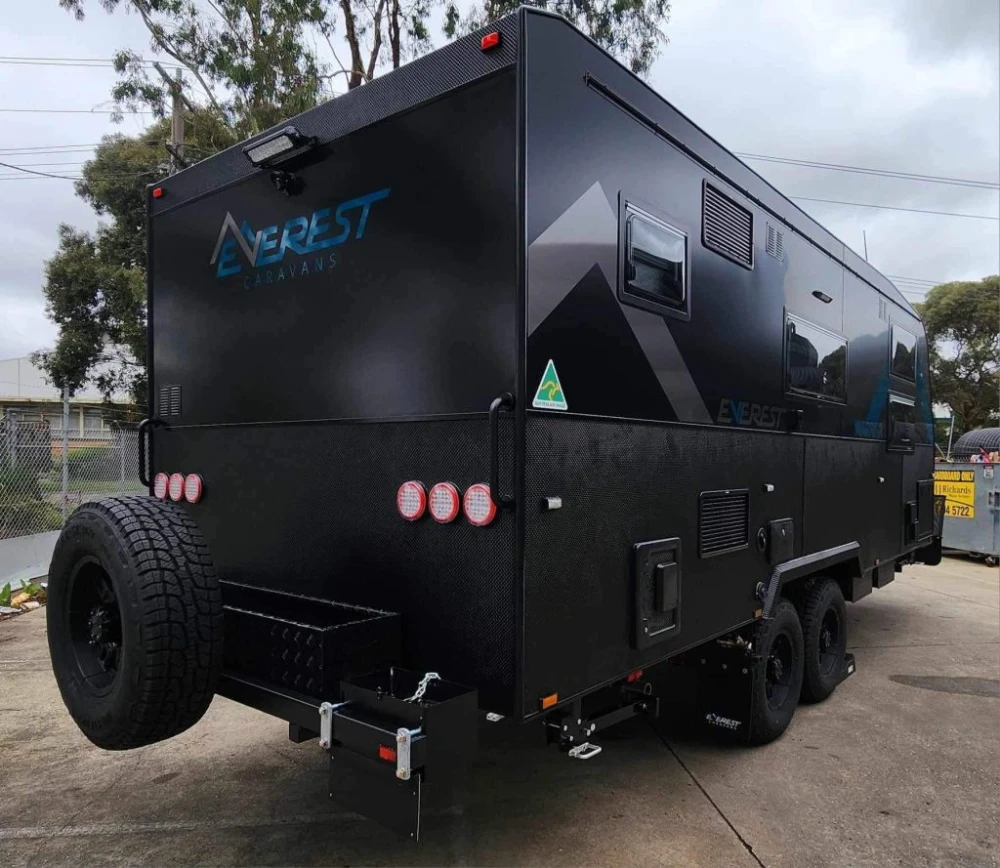

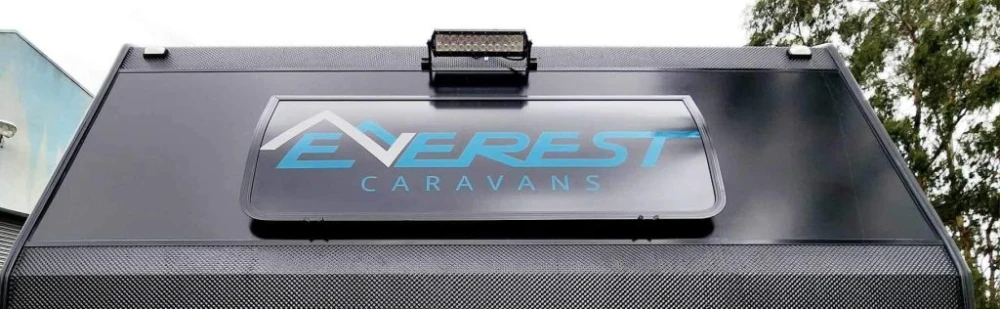

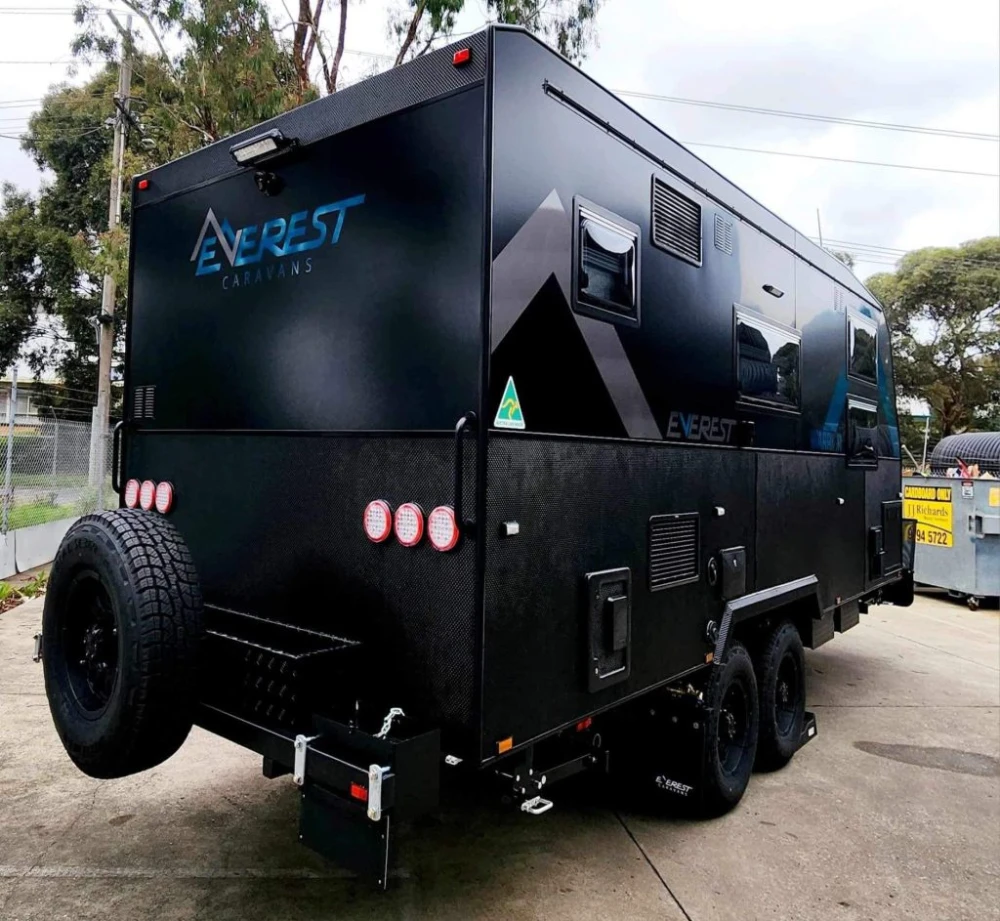

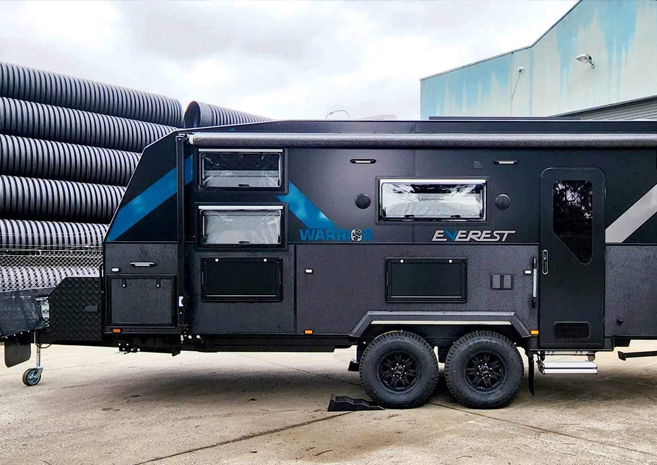

External Gallery

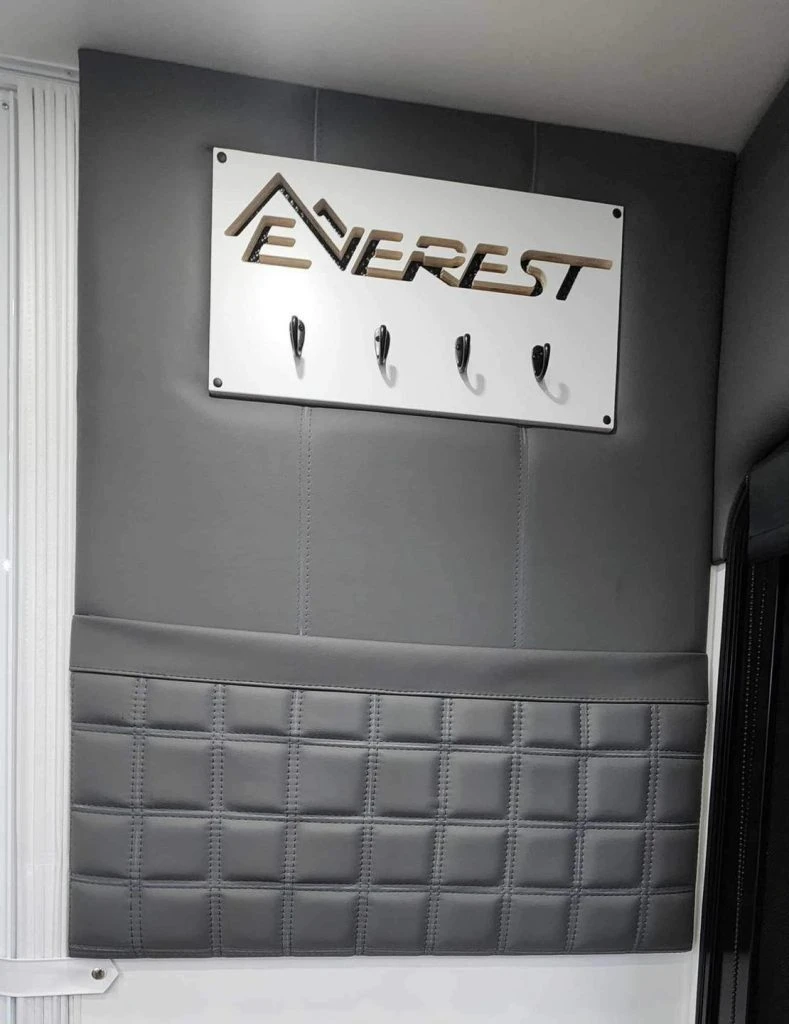

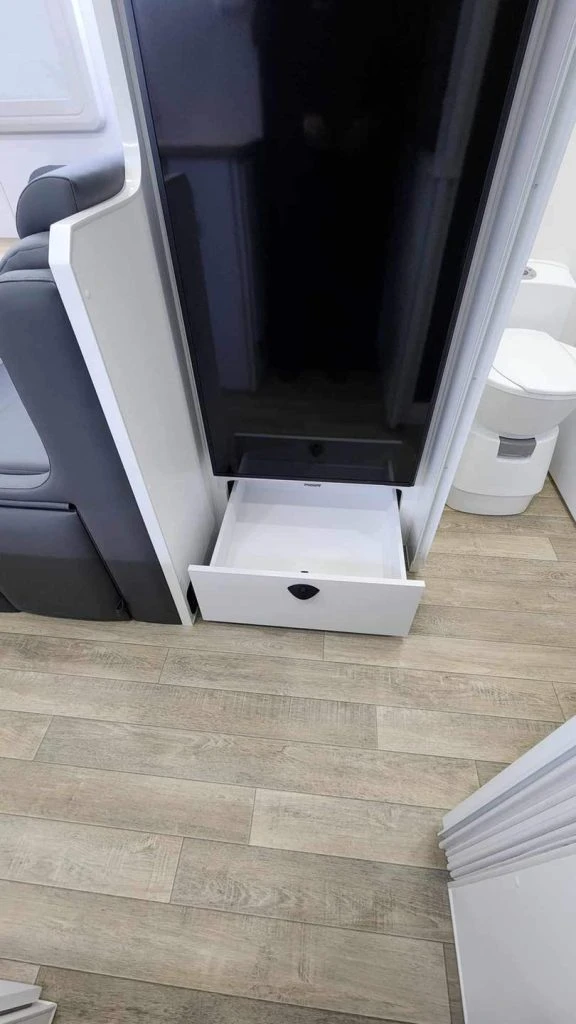

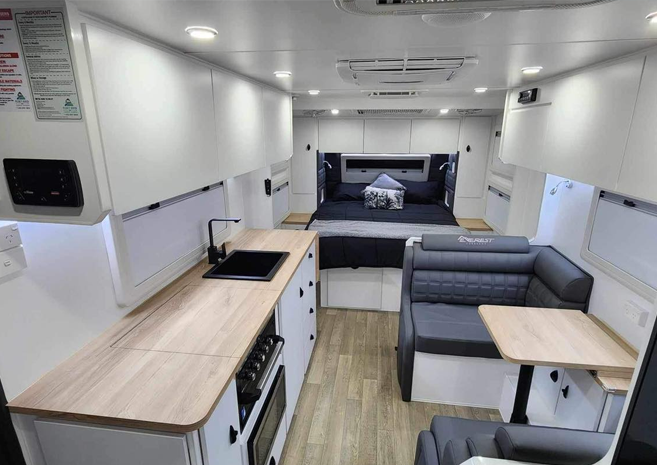

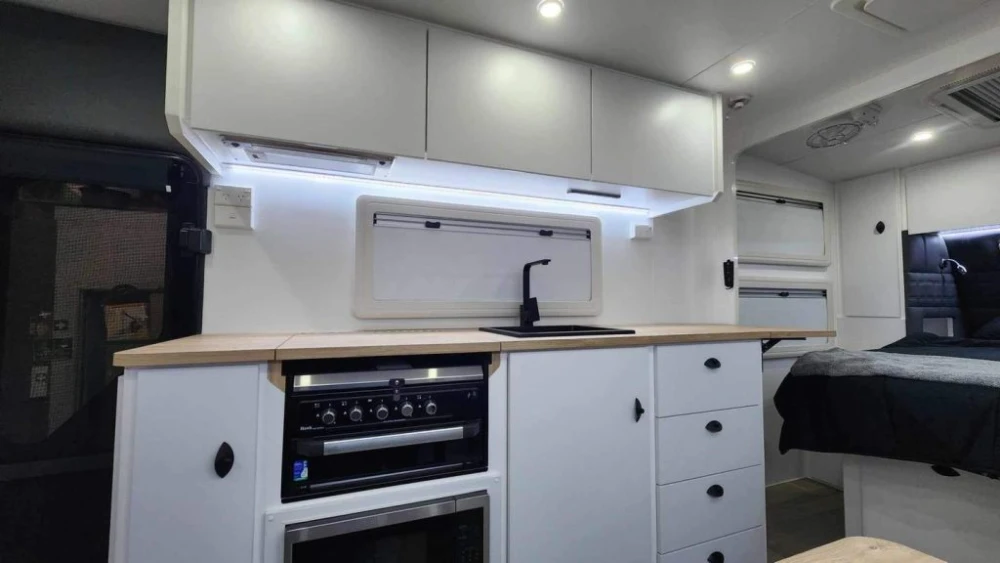

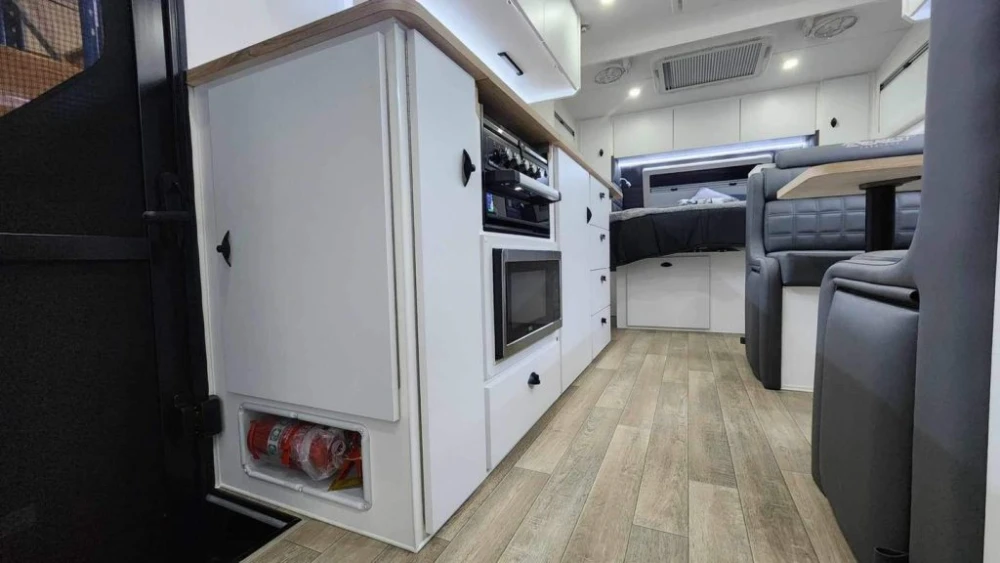

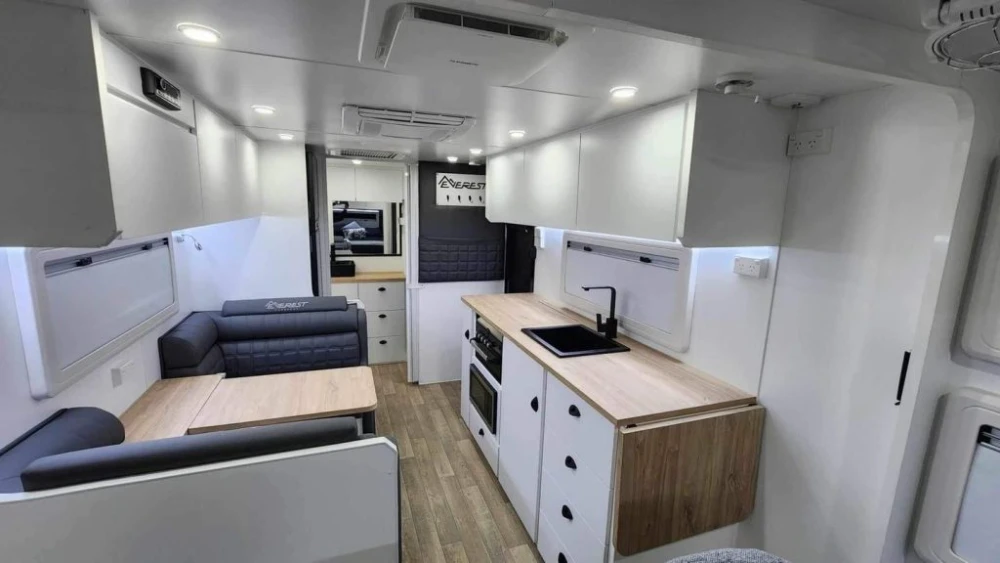

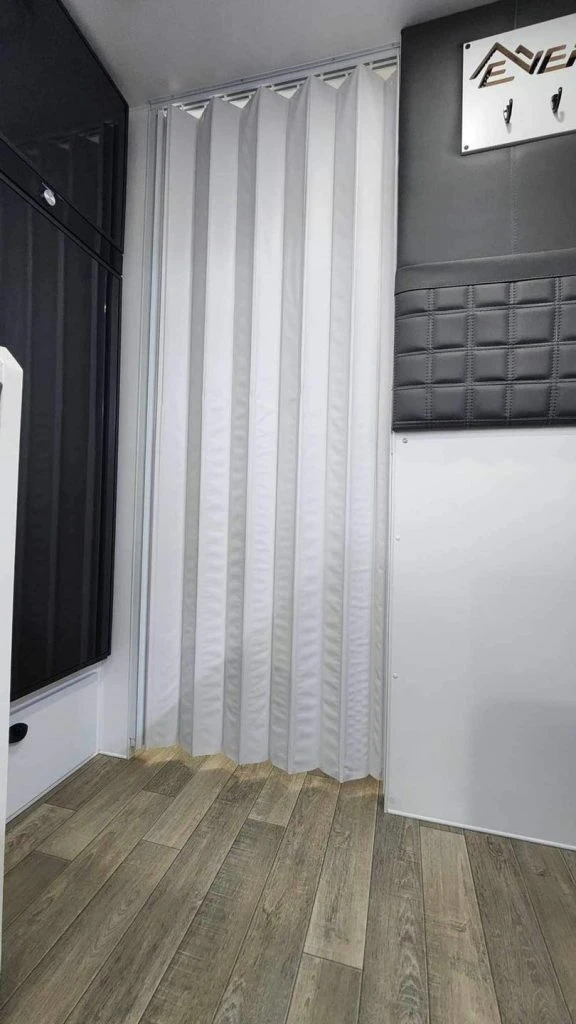

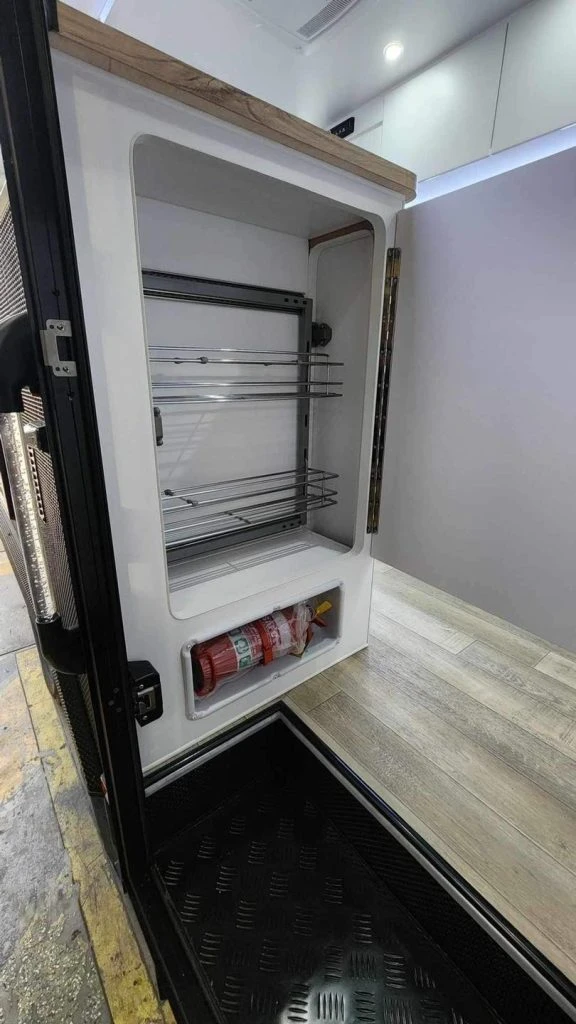

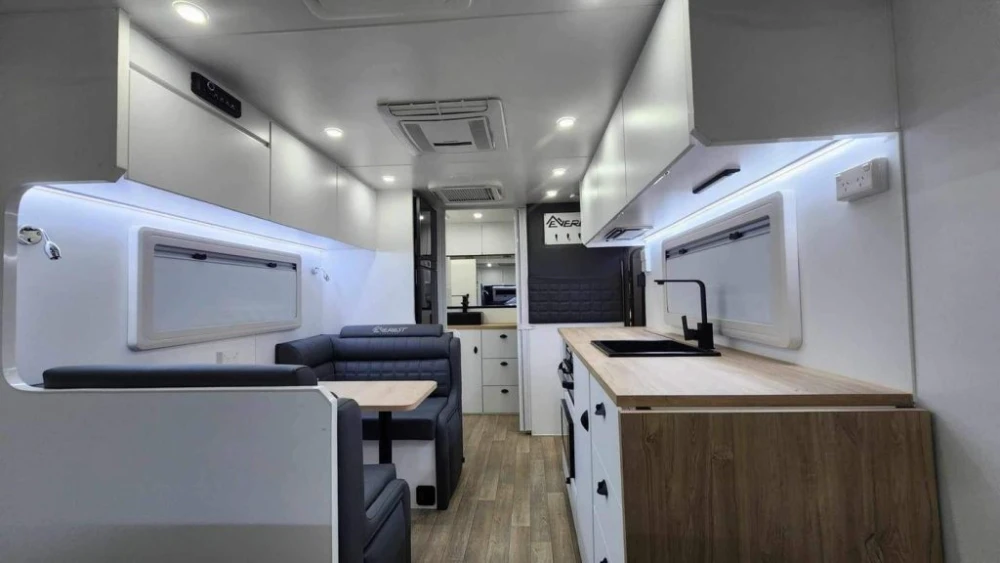

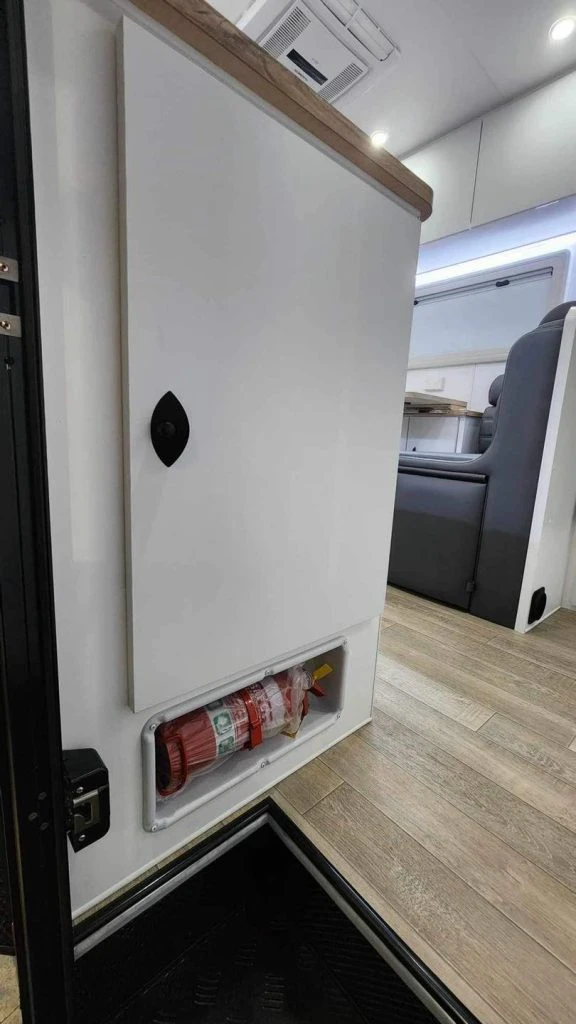

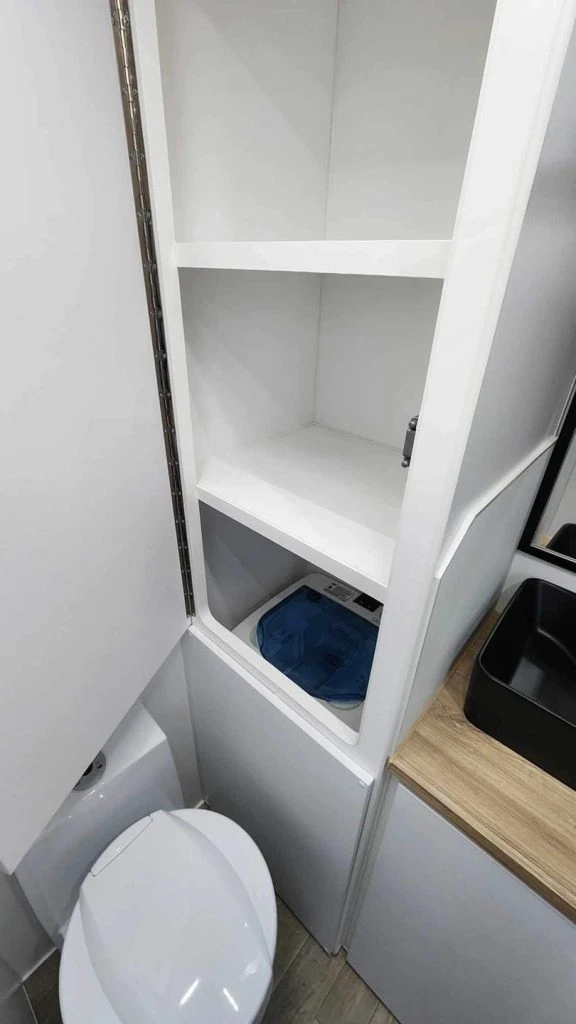

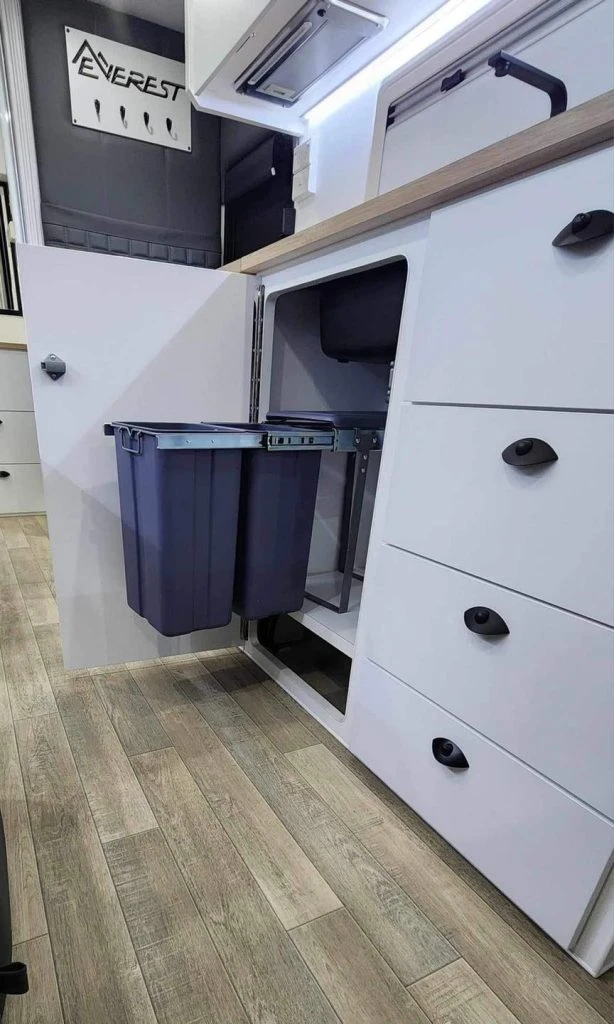

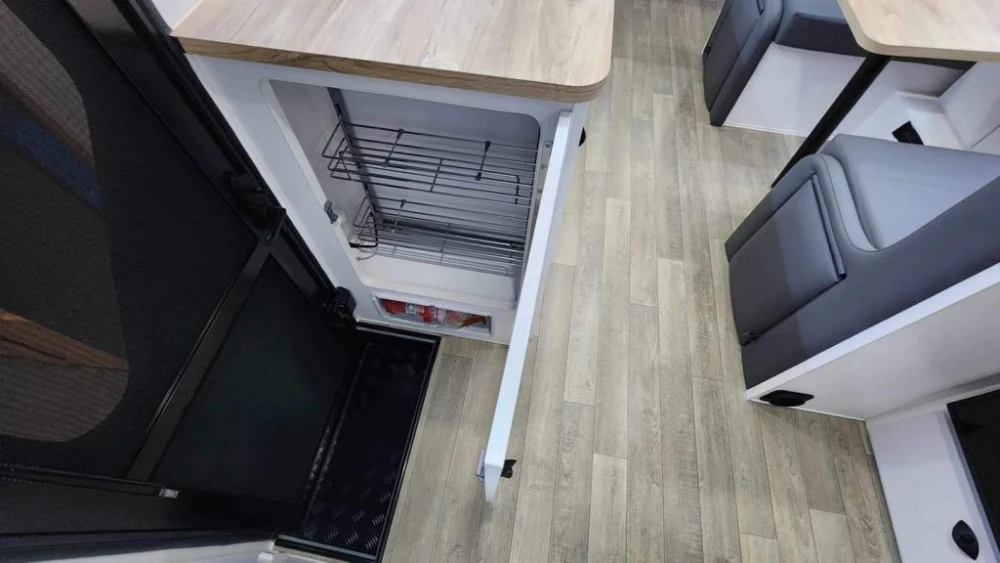

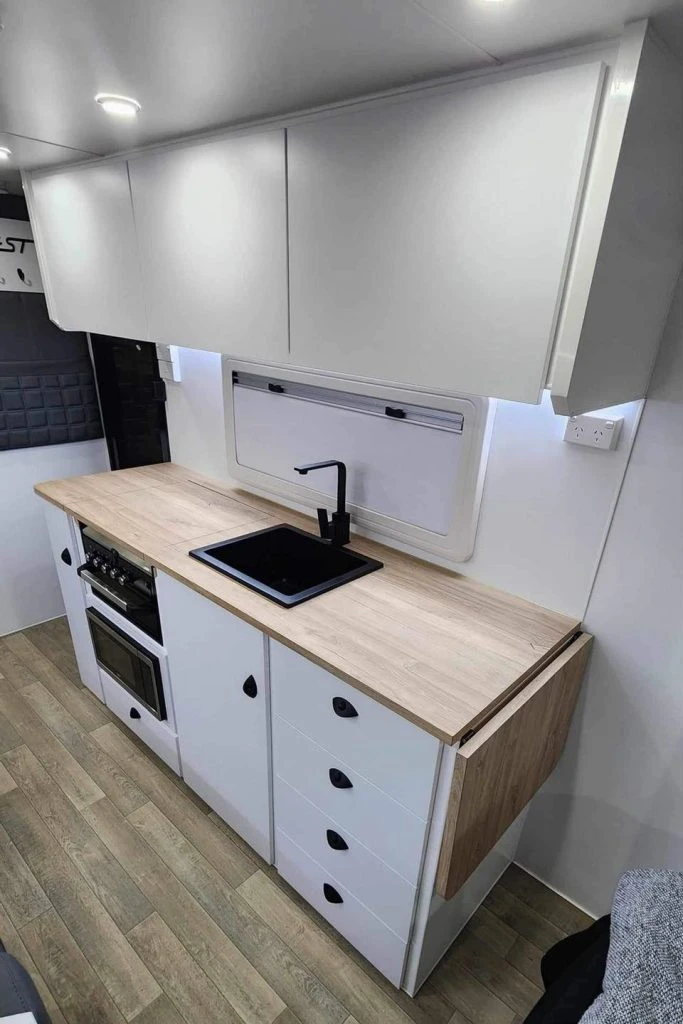

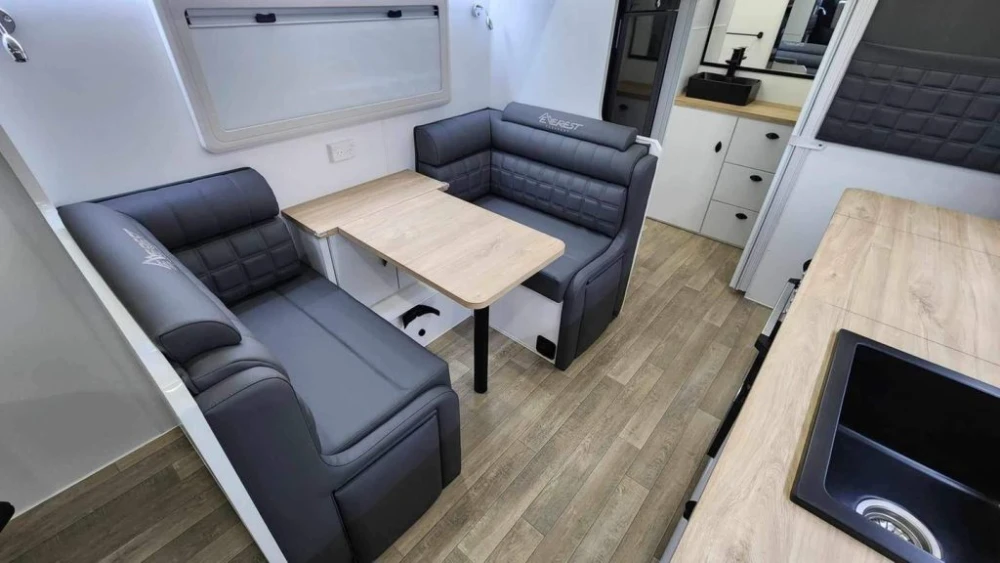

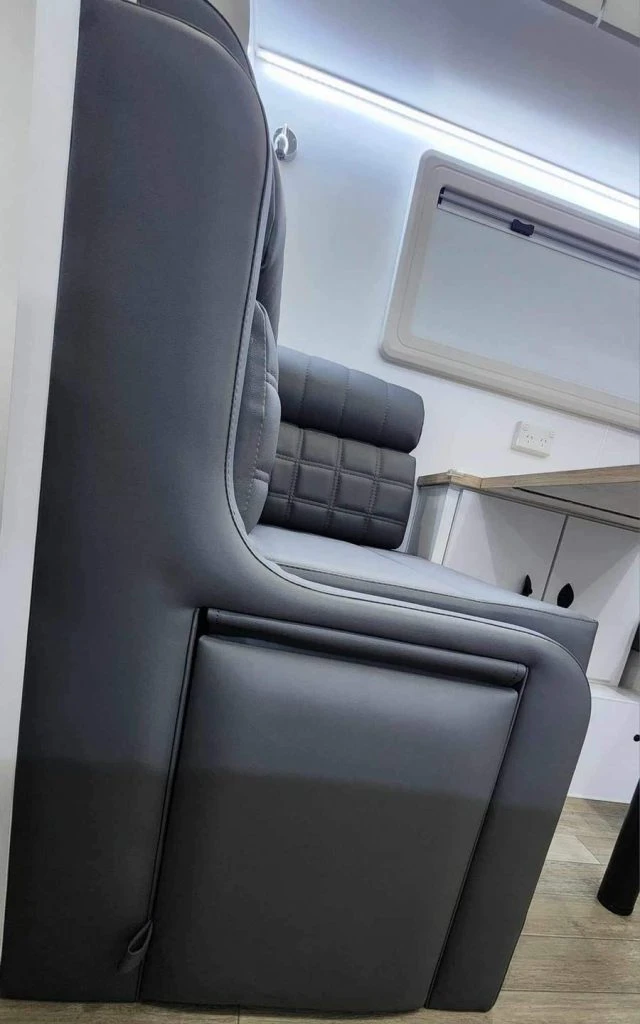

Internal Gallery

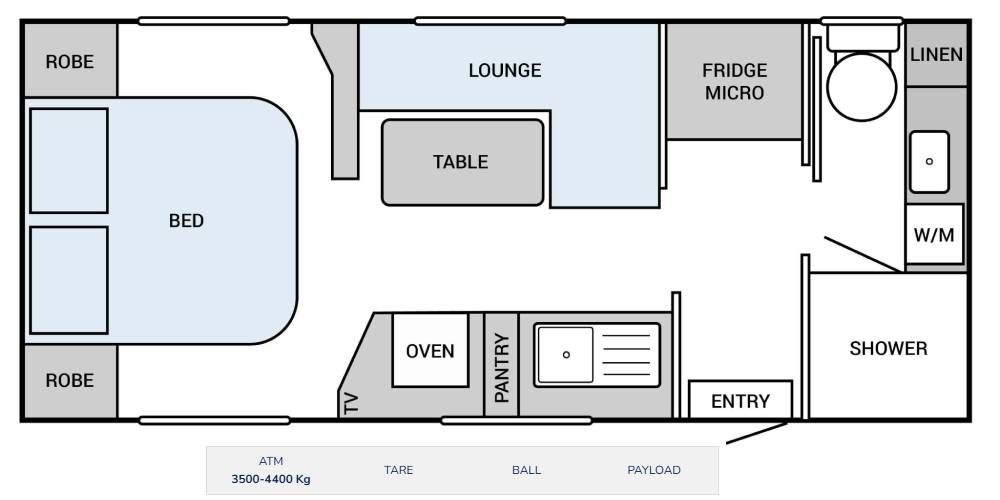

Floor Plans

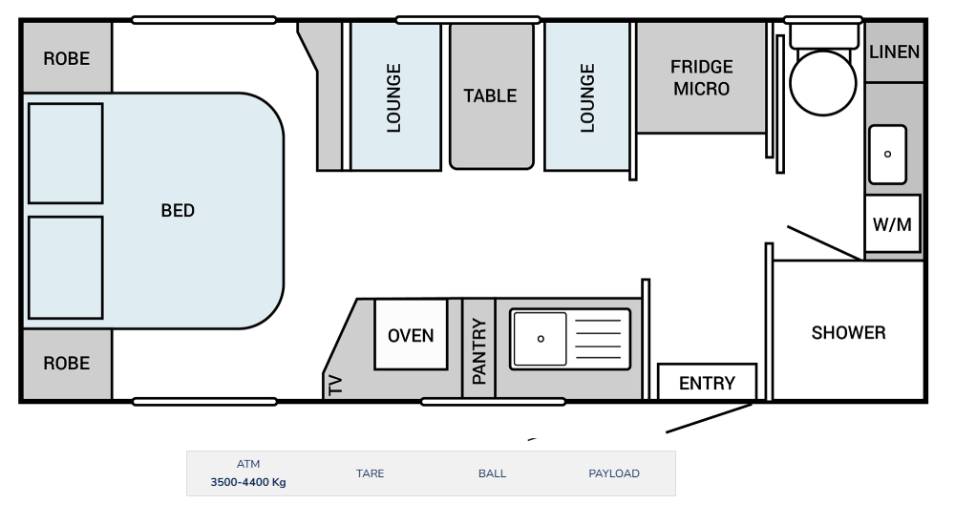

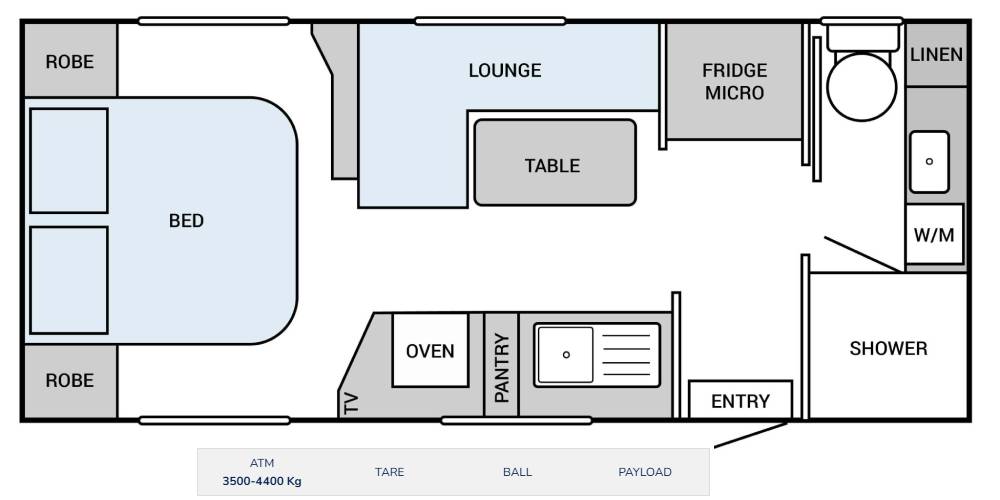

17.6F WARRIOR

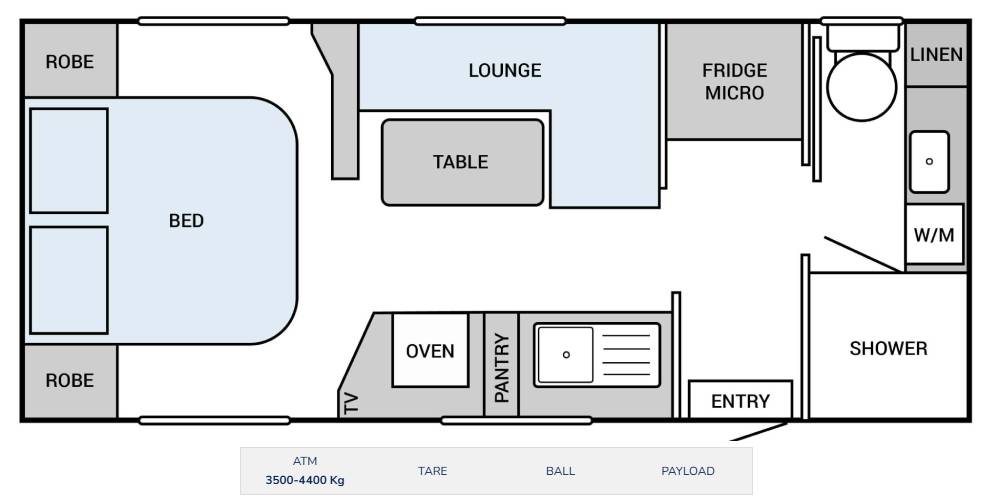

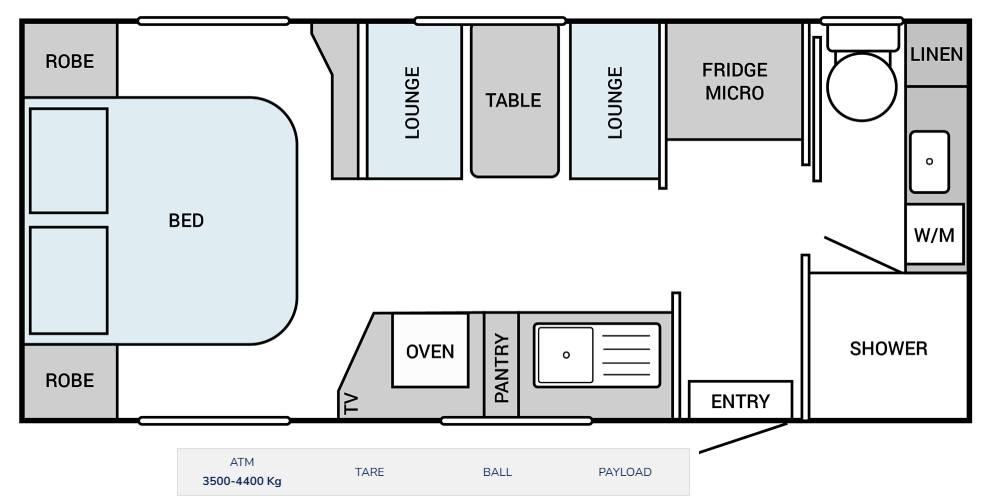

19.6FT WARRIOR

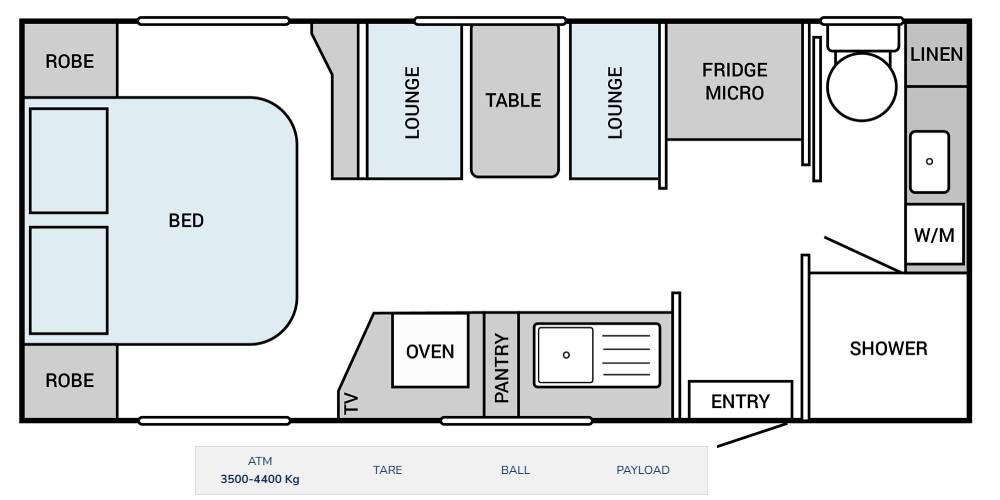

20.6 F WARRIOR
17.6F WARRIOR
19.6FT WARRIOR
20.6 F WARRIOR
17.6F WARRIOR
19.6FT WARRIOR
20.6 F WARRIOR
